Structural Diagram 4 (Battery Cable Part)

WARNING: This page is about a different variant/trim than selected.

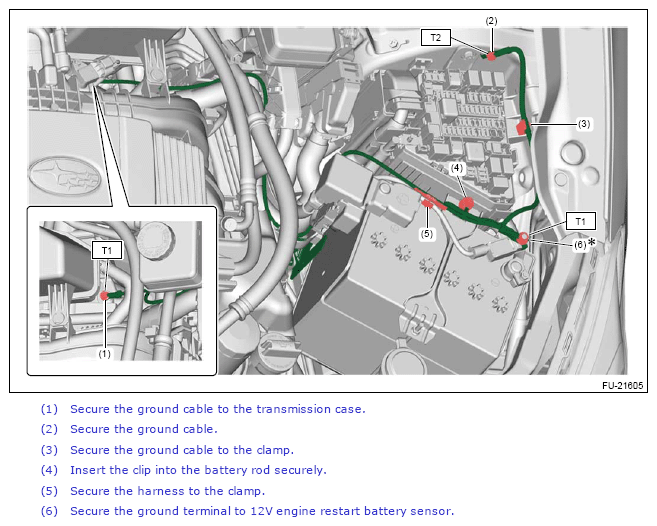

Fig 1: Engine Wiring Harness Components (With Torque Specifications) (Structural 4)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 11 (1.1, 8.1)

T2: 13 (1.3, 9.6)

* If the ground terminal was removed from the 12V engine restart battery sensor, replace with a new battery sensor .
