Section 5 (Fuel Injection System (HEV))
>>
General Description
>>
Components With Torque Specifications
>>

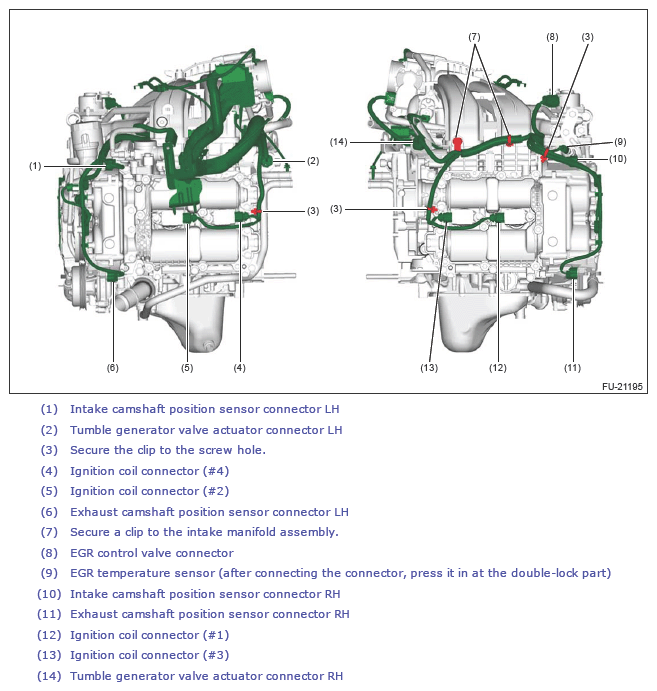

Engine Wiring Harness
>>
Structural Diagram 3
Structural Diagram 3
WARNING:
This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
