Structural Diagram 1

WARNING: This page is about a different variant/trim than selected.

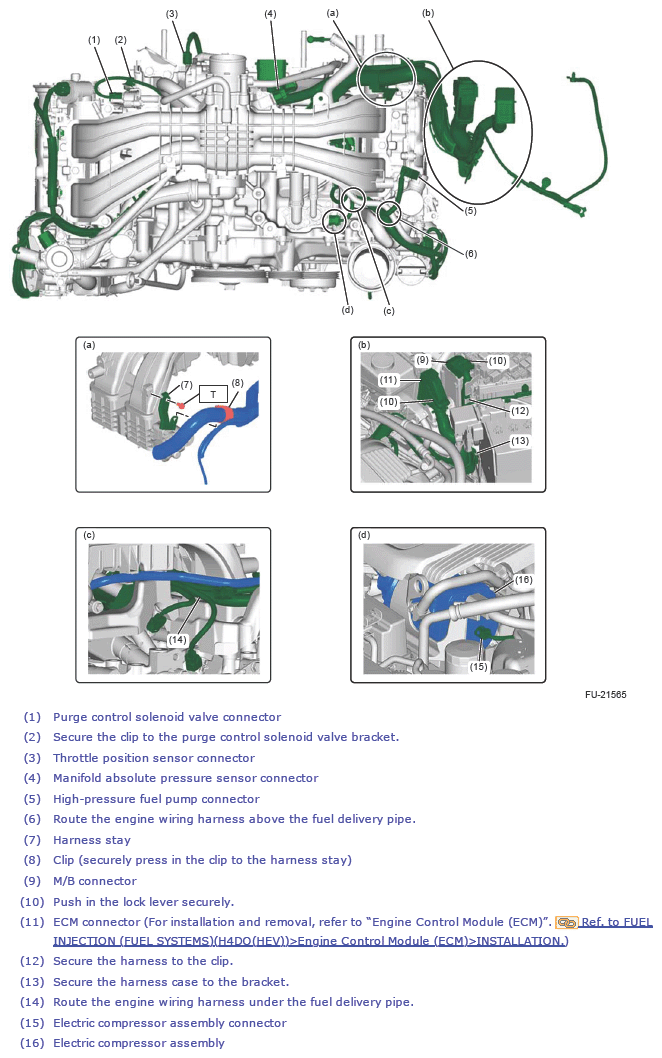

Fig 1: Engine Wiring Harness Components (With Torque Specifications) (Structural 1)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6.4 (0.7, 4.7)
