Fuel Tank Protector

WARNING: This page is about a different variant/trim than selected.
  1. Lift up the vehicle.

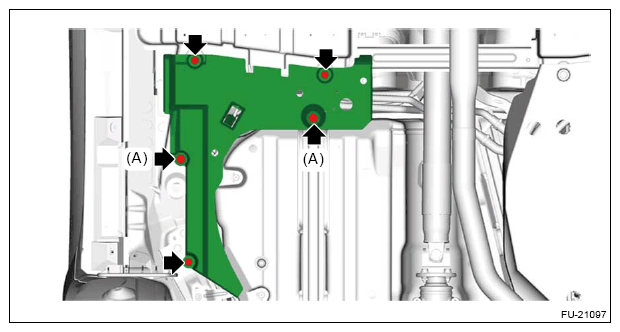

  2. Remove the bolt and clip (A) and remove the fuel tank protector.
    G13230967Courtesy of SUBARU OF AMERICA, INC.
