Cover Of Inverter With Converter Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Lift up the vehicle.

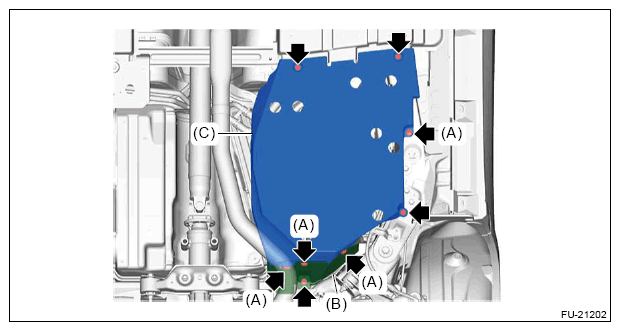

  2. Remove the bolt and clip (A) and remove the cover No. 1 (B) of inverter with converter assembly and the cover No. 2 (C) of inverter with converter assembly.
    G13230968Courtesy of SUBARU OF AMERICA, INC.
