Fuel Pump Relay: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

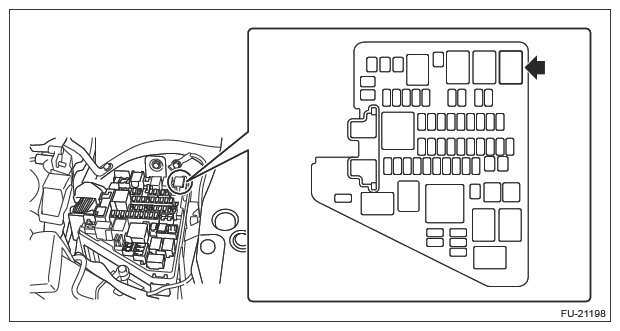

  2. Remove the fuel pump relay from the main fuse box.
    G13230959Courtesy of SUBARU OF AMERICA, INC.
