Fuel Insulator: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G13230667Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13230668Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the intake manifold assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>INTAKE MANIFOLD ASSEMBLY>REMOVAL .
  5. Remove the fuel pipe insulator.

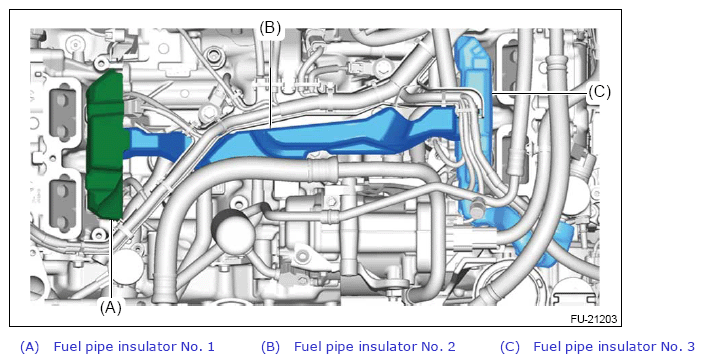

    G13601441Courtesy of SUBARU OF AMERICA, INC.
