Fuel Tank Side

WARNING: This page is about a different variant/trim than selected.

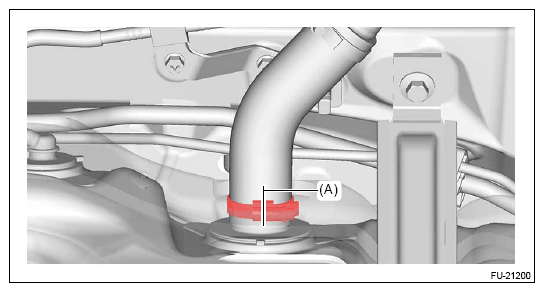

Using a marker pen, make alignment marks (A) on the fuel filler hose and the clamp.

Courtesy of SUBARU OF AMERICA, INC.

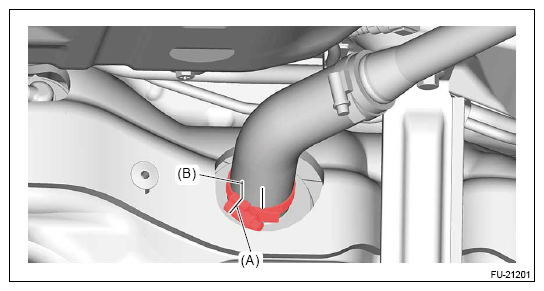

Make an alignment mark (B) on the position which is shifted by 45 degrees to the alignment mark (A) on the fuel filler hose. Then, align the alignment mark (B) with the alignment mark (A) on the clamp, and install the clamp.
Tightening torque:

2 N.m (0.2 kgf-m, 1.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
