LH Side

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

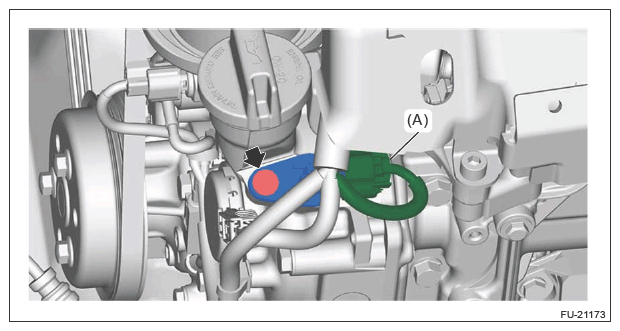

  2. Disconnect the connector (A) and remove the camshaft position sensor.
    G13230921Courtesy of SUBARU OF AMERICA, INC.
