Vehicle Dynamics Control System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

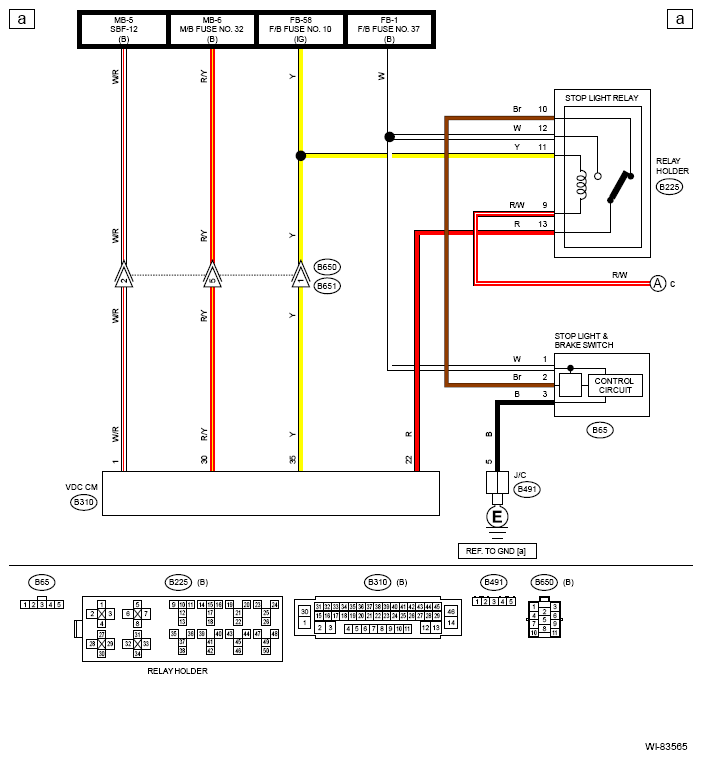

G13236670Courtesy of SUBARU OF AMERICA, INC.

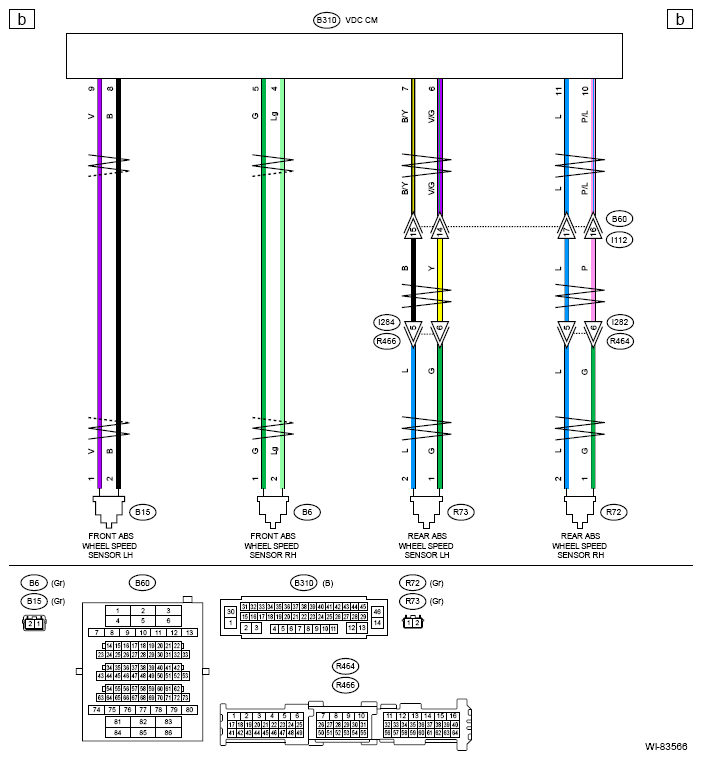

G13236671Courtesy of SUBARU OF AMERICA, INC.

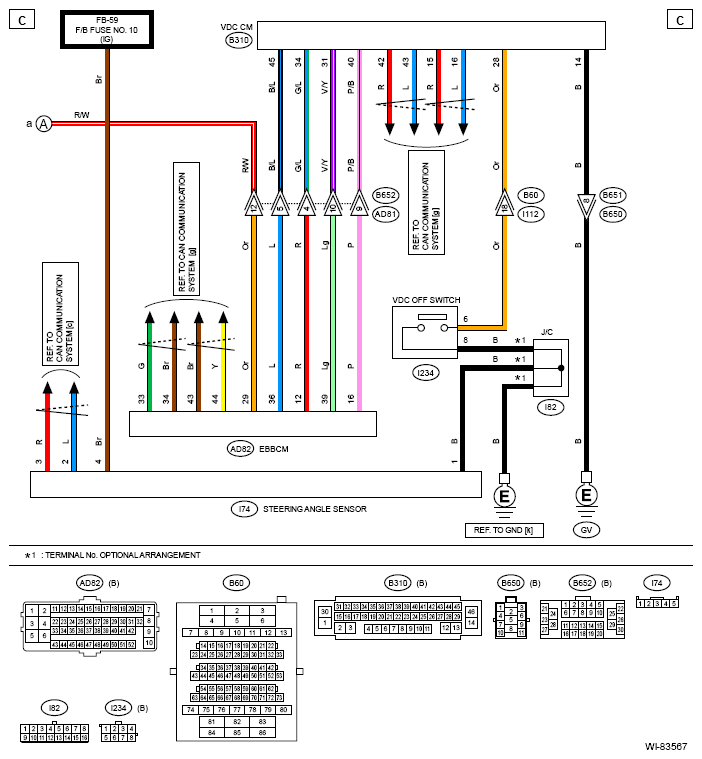

G13236672Courtesy of SUBARU OF AMERICA, INC.

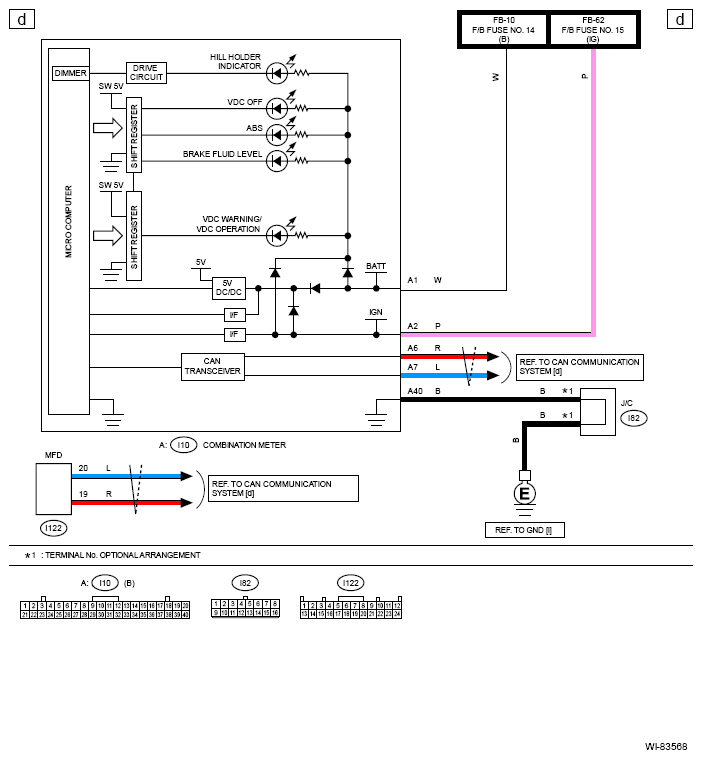

G13236673Courtesy of SUBARU OF AMERICA, INC.
