Turn Signal Light And Hazard Light System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

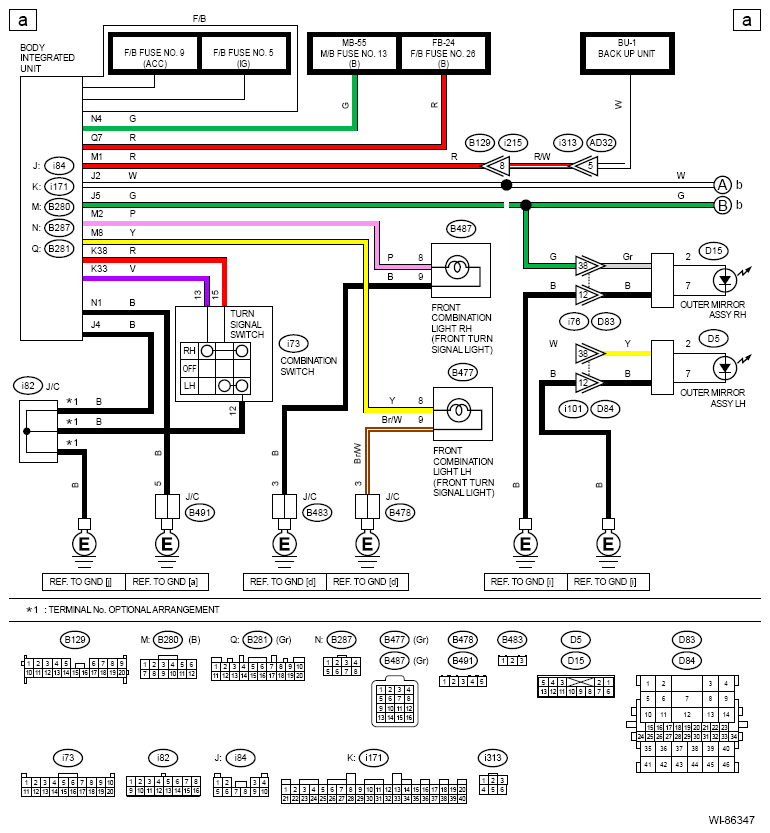

G13614520Courtesy of SUBARU OF AMERICA, INC.

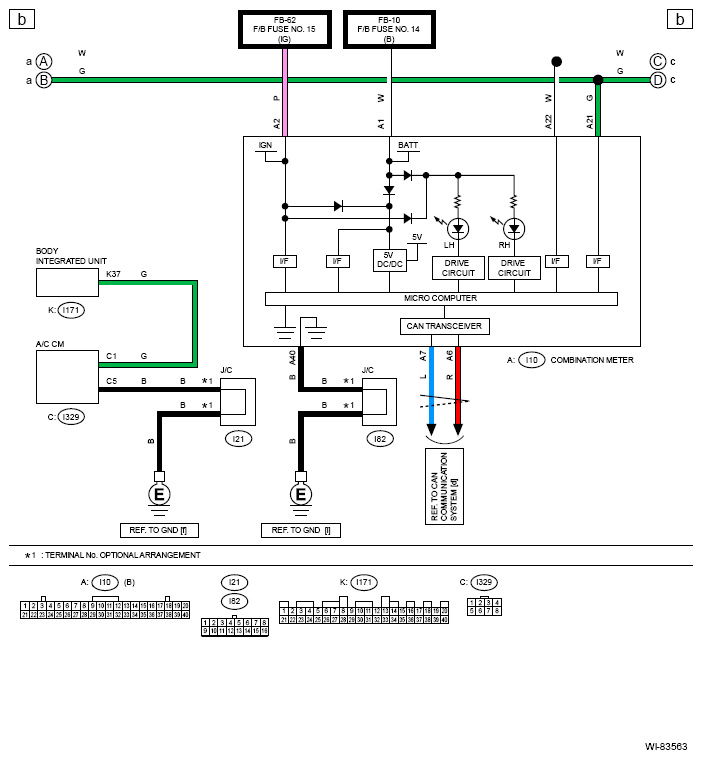

G13236668Courtesy of SUBARU OF AMERICA, INC.

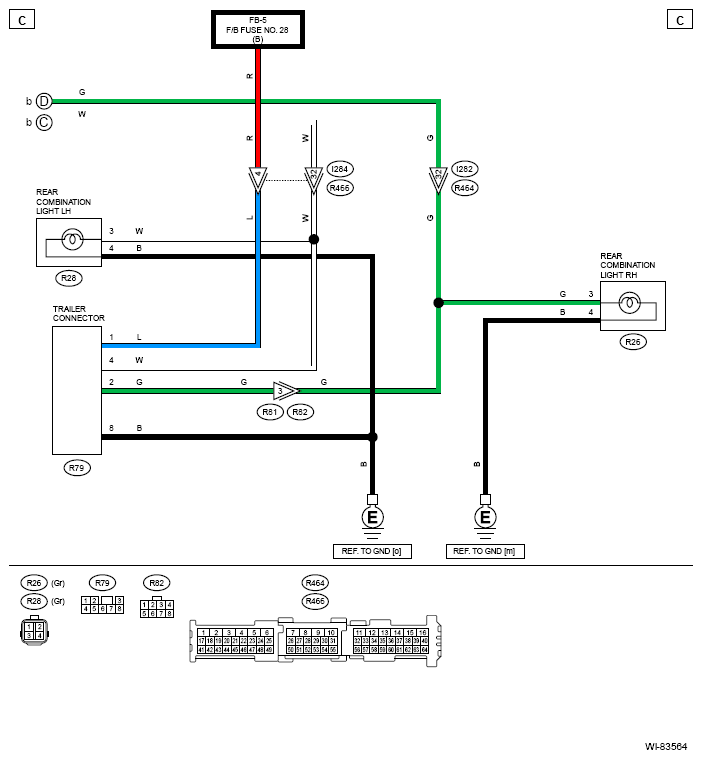

G13236669Courtesy of SUBARU OF AMERICA, INC.
