Without Audio Amplifier

WARNING: This page is about a different variant/trim than selected.

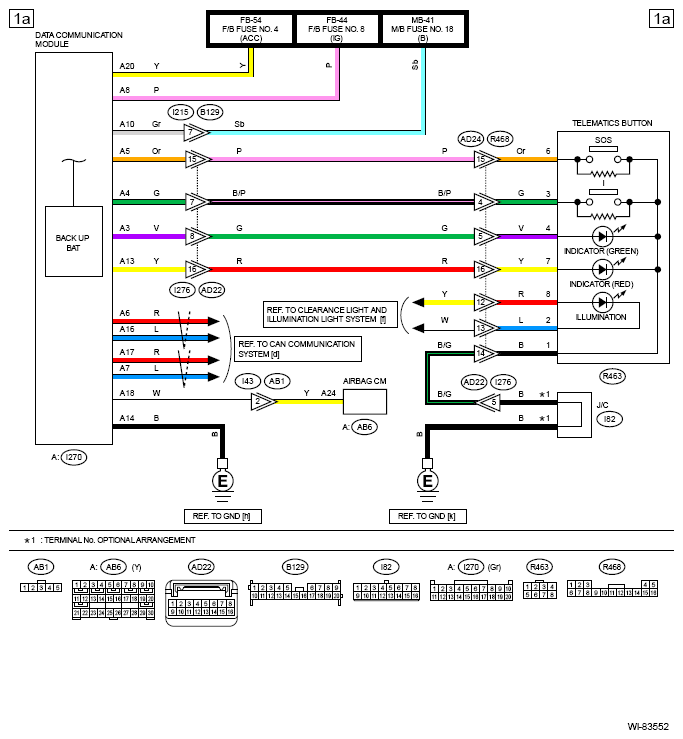

G13236657Courtesy of SUBARU OF AMERICA, INC.

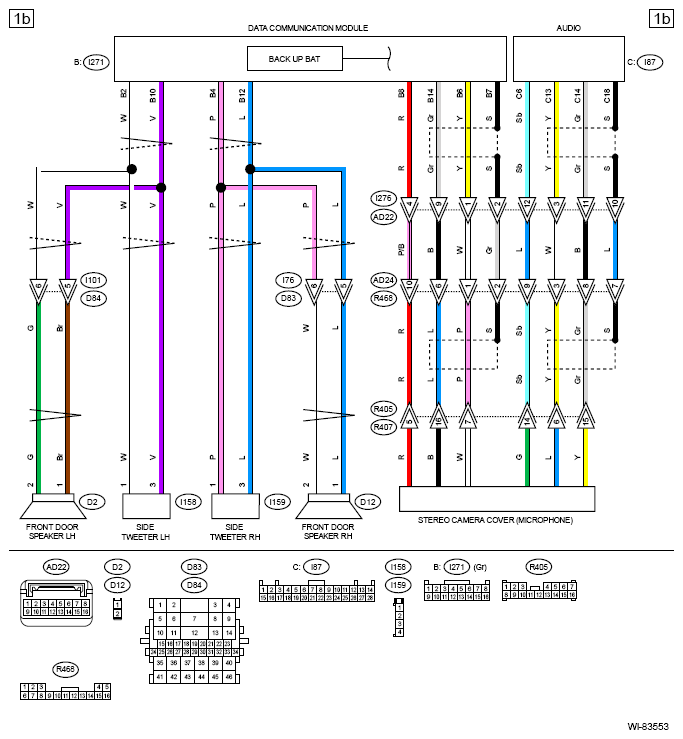

G13236658Courtesy of SUBARU OF AMERICA, INC.
G13236659Courtesy of SUBARU OF AMERICA, INC.

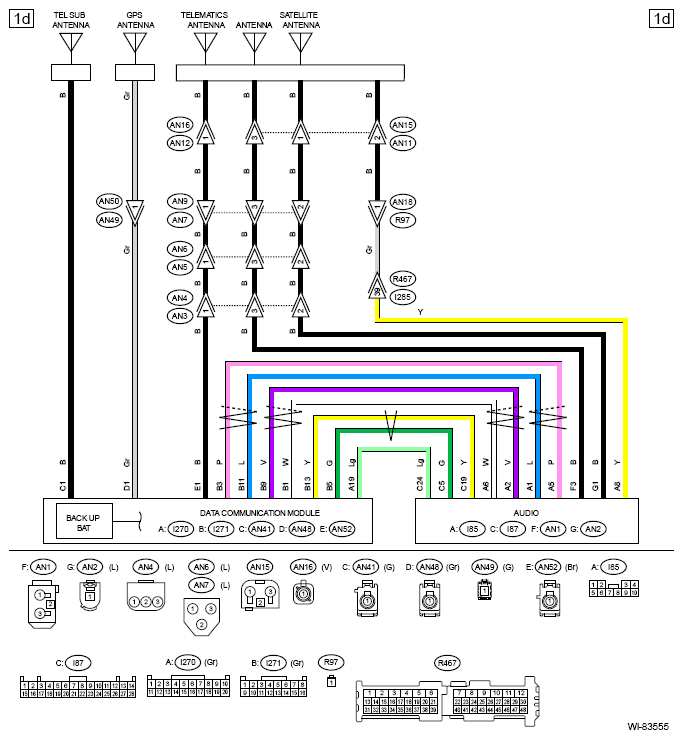

G13236660Courtesy of SUBARU OF AMERICA, INC.
