With Audio Amplifier

WARNING: This page is about a different variant/trim than selected.

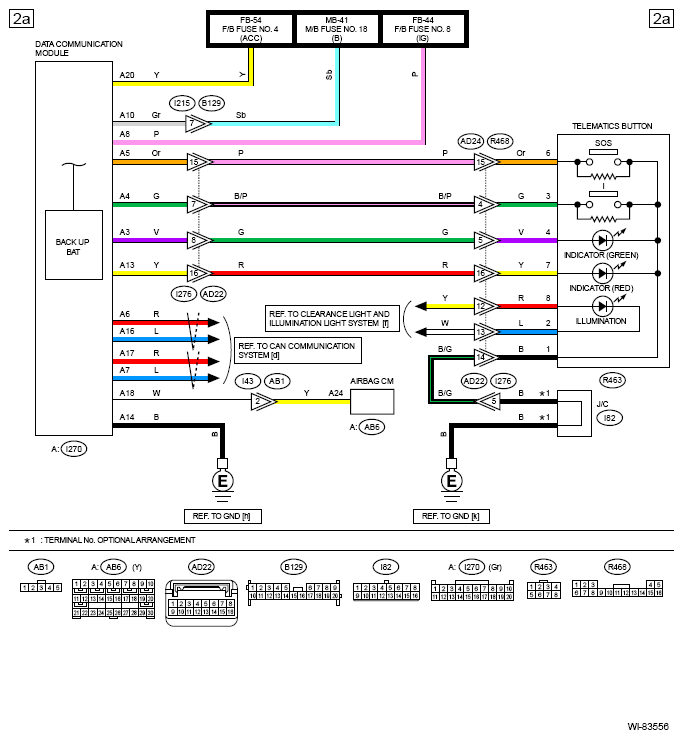

G13236661Courtesy of SUBARU OF AMERICA, INC.

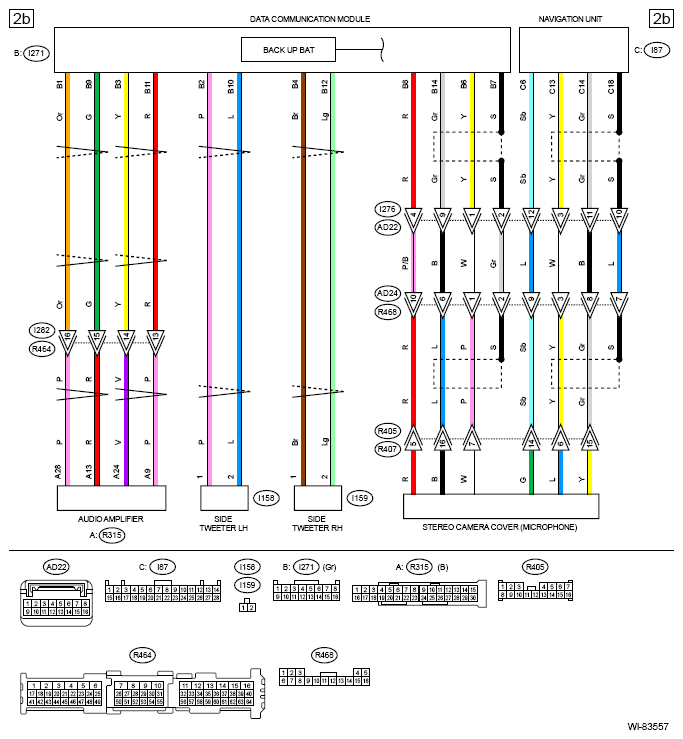

G13236662Courtesy of SUBARU OF AMERICA, INC.
G13236663Courtesy of SUBARU OF AMERICA, INC.

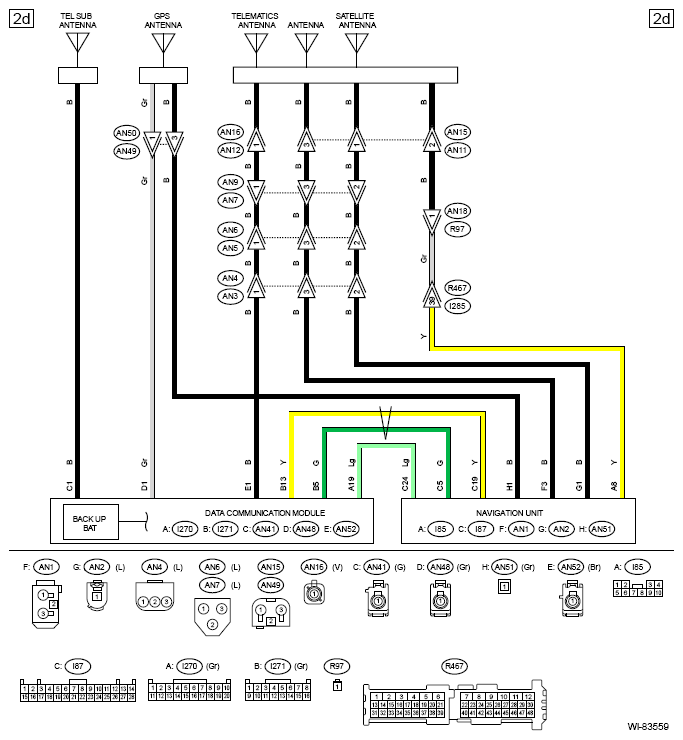

G13236664Courtesy of SUBARU OF AMERICA, INC.
