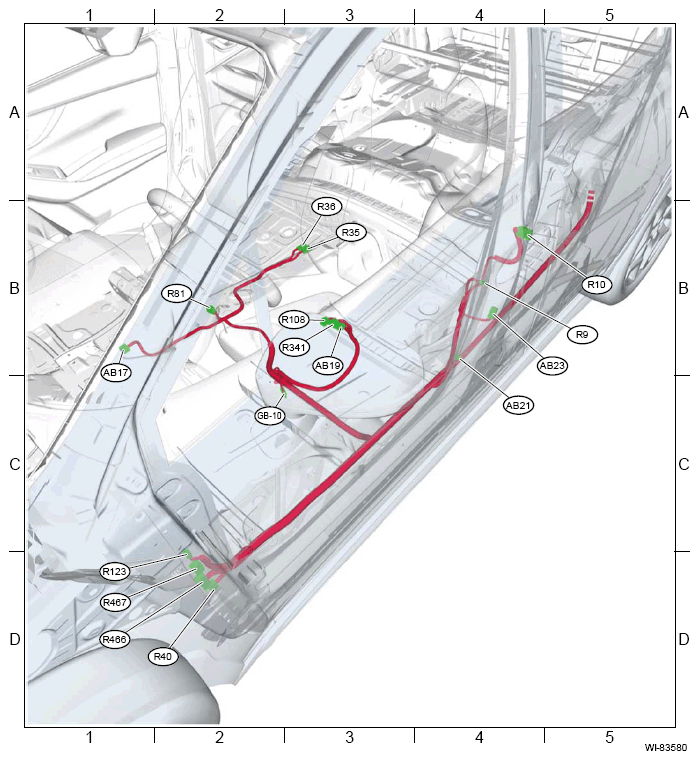

Rear Wiring Harness LH: Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| AB17 |
24 |
Y |
B-1 |
|
Airbag Control Module |
| AB19 |
2 |
Y |
B-3 |
|
Side airbag module LH |
| AB21 |
4 |
Y |
B-4 |
|
Pretensioner LH |
| AB23 |
4 |
Y |
B-4 |
|
Side airbag sensor LH |
| R9 |
4 |
Gr |
B-4 |
|
Front door switch LH |
| R10 |
12 |
|
B-4 |
D22 |
Rear door cord LH |
| R35 |
2 |
|
B-3 |
R149 |
EPB adapter cord LH |
| R36 |
2 |
B |
B-3 |
R140 |
EPB adapter cord RH |
| R40 |
6 |
|
D-2 |
i128 |
Instrument panel wiring harness |
| R81 |
8 |
|
B-2 |
R82 |
Rear wiring harness RH |
| R108 |
2 |
|
B-3 |
|
Front seat belt switch LH |
| R123 |
2 |
Y |
D-2 |
AB62 |
Airbag wiring harness |
| R341 |
14 |
|
B-3 |
R205 |
Rear wiring harness RH |
| R466 |
64 |
|
D-2 |
i284 |
Instrument panel wiring harness |
| R467 |
48 |
|
D-2 |
i285 |
| GB-10 |
- |
- |
C-2 |
|
- |
