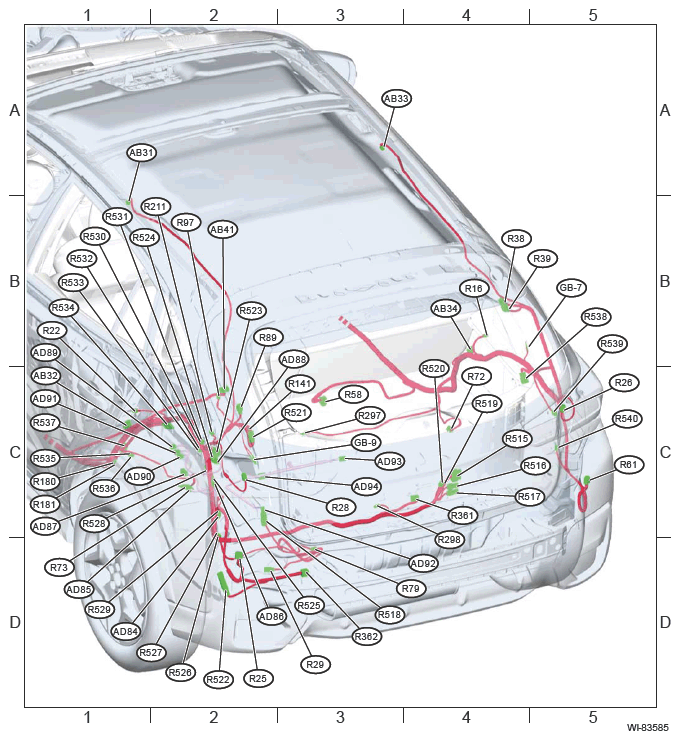

Rear Wiring Harness
WARNING: This page is about a different variant/trim than selected.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| AB31 |
2 |
B |
B-1 |
|
Curtain airbag module LH |
| AB32 |
4 |
Y |
C-1 |
|
Curtain airbag sensor LH |
| AB33 |
2 |
B |
A-3 |
|
Curtain airbag module RH |
| AB34 |
4 |
Y |
B-4 |
|
Curtain airbag sensor RH |
| AB41 |
2 |
Y |
C-2 |
|
Satellite safing sensor |
| AD84 |
8 |
Br |
C-2 |
R529 |
Rear wiring harness LH |
| AD85 |
8 |
Gr |
C-2 |
|
Leak check valve ASSY |
| AD86 |
2 |
|
C-2 |
R525 |
Rear wiring harness LH |
| AD87 |
2 |
|
C-2 |
|
Charge lid lock with motor assembly |
| AD88 |
8 |
|
C-2 |
R524 |
Rear wiring harness LH |
| AD89 |
2 |
|
C-2 |
|
Charge inlet light |
| AD90 |
5 |
|
C-2 |
|
Charge inlet switch |
| AD91 |
4 |
Gr |
C-2 |
|
| AD92 |
6 |
Gr |
C-2 |
R518 |
Rear wiring harness LH |
| AD93 |
3 |
L |
C-3 |
|
Fuel tank pressure sensor |
| AD94 |
2 |
B |
C-2 |
|
Electric vent solenoid valve |
| R16 |
4 |
Gr |
B-4 |
|
Rear door switch RH |
| R22 |
4 |
Gr |
C-1 |
|
Rear door switch LH |
| R25 |
10 |
B |
D-2 |
|
Radar sensor LH (master) |
| R26 |
4 |
Gr |
C-5 |
|
Rear combination light RH |
| R28 |
4 |
Gr |
C-2 |
|
Rear combination light LH |
| R29 |
3 |
B |
D-2 |
|
Rear vehicle height sensor |
| R38 |
14 |
|
B-4 |
D34 |
Rear gate cord (RH) |
| R39 |
8 |
|
B-4 |
D35 |
| R58 |
6 |
Gr |
C-3 |
|
Fuel pump ASSY |
| R61 |
10 |
B |
C-5 |
|
Radar sensor RH (slave) |
| R72 |
2 |
Gr |
C-4 |
|
Rear ABS wheel speed sensor RH |
| R73 |
2 |
Gr |
C-2 |
|
Rear ABS wheel speed sensor LH |
| R79 |
8 |
|
D-3 |
|
Trailer connector |
| R89 |
8 |
|
C-2 |
D6 |
Rear gate cord (LH) |
| R97 |
1 |
|
C-2 |
AN18 |
Adapter cord |
| R141 |
2 |
Gr |
C-2 |
|
Luggage room light |
| R180 |
4 |
|
C-1 |
|
J/C |
| R181 |
4 |
|
C-1 |
|
| R211 |
12 |
|
C-2 |
|
TPMS Control Module |
| R297 |
3 |
|
C-3 |
|
Keyless access interior antenna (center) |
| R298 |
3 |
|
C-3 |
|
Keyless access interior antenna (rear) |
| R361 |
24 |
|
C-4 |
|
RAB Control Module |
| R362 |
8 |
B |
D-3 |
R368 |
Sonar sensor cord |
| R515 |
22 |
|
C-4 |
HV56 |
Hybrid cord |
| R516 |
2 |
|
C-4 |
|
Electric vehicle charger assembly |
| R517 |
2 |
|
C-4 |
HV55 |
Hybrid cord |
| R518 |
6 |
Gr |
C-2 |
AD92 |
Fuel cord |
| R519 |
4 |
|
C-4 |
|
J/C |
| R520 |
4 |
|
C-4 |
|
| R521 |
4 |
Gr |
C-2 |
|
Battery cooling blower assembly LH |
| R522 |
2 |
Gr |
D-2 |
|
Antenna ASSY-charging inlet door |
| R523 |
14 |
|
C-2 |
HV27 |
Hybrid cord |
| R524 |
8 |
|
C-2 |
AD88 |
Charge inlet switch cord |
| R525 |
2 |
|
C-2 |
AD86 |
Charge lid lock cord |
| R526 |
4 |
|
C-2 |
|
J/C |
| R527 |
4 |
|
C-2 |
|
| R528 |
4 |
|
C-2 |
|
| R529 |
8 |
Br |
C-2 |
AD84 |
Leak check valve ASSY cord |
| R530 |
4 |
|
C-2 |
|
J/C |
| R531 |
4 |
|
C-2 |
|
| R532 |
4 |
|
C-2 |
|
| R533 |
4 |
|
C-2 |
|
| R534 |
22 |
|
C-2 |
HV75 |
Inlet AC charger cable |
| R535 |
4 |
|
C-1 |
|
J/C |
| R536 |
4 |
|
C-1 |
|
| R537 |
14 |
B |
C-1 |
HV25 |
Resolver sensor cord |
| R538 |
4 |
Gr |
C-4 |
|
Battery cooling blower assembly RH |
| R539 |
2 |
|
C-5 |
|
Fuel fill door position switch |
| R540 |
2 |
|
C-5 |
|
Fuel door lock actuator |
| GB-7 |
- |
- |
B-4 |
|
- |
| GB-9 |
- |
- |
C-2 |
|
- |
