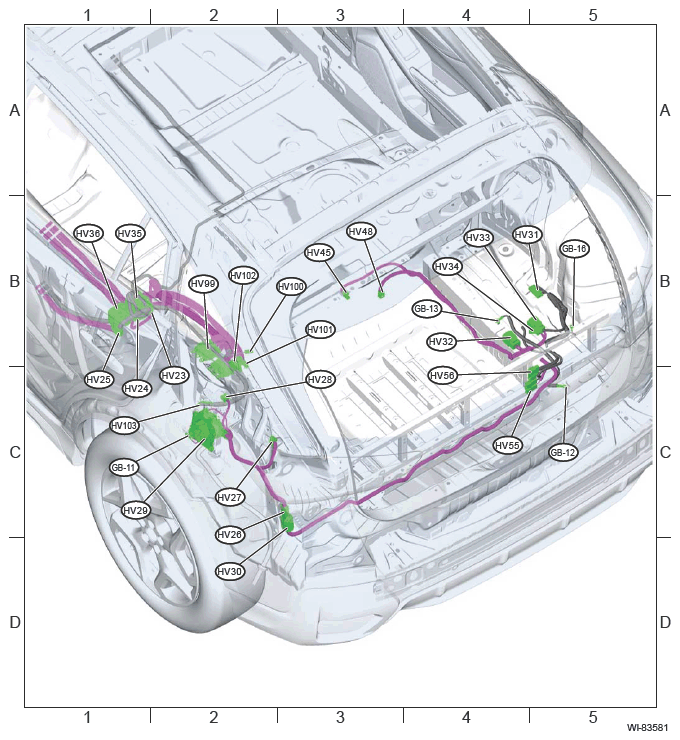

Hybrid Cord
WARNING: This page is about a different variant/trim than selected.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| HV23 |
24 |
B |
B-2 |
|
Inverter with converter assembly |
| HV24 |
13 |
B |
B-1 |
|
|
| HV25 |
14 |
|
B-1 |
R537 |
Rear wiring harness LH |
| HV26 |
2 |
Or |
C-3 |
HV30 |
Hybrid cord |
| HV27 |
14 |
|
C-2 |
R523 |
Rear wiring harness LH |
| HV28 |
12 |
|
C-2 |
|
Cable EV charger lock assembly |
| HV29 |
5 |
B |
C-2 |
|
Charging inlet |
| HV30 |
2 |
Or |
C-3 |
HV26 |
Inlet AC charger cable |
| HV31 |
40 |
|
B-5 |
|
Electric vehicle charger assembly |
| HV32 |
2 |
Or |
B-4 |
|
| HV33 |
2 |
Or |
B-5 |
|
| HV34 |
4 |
|
B-5 |
|
Charger cooling blower |
| HV35 |
2 |
Or |
B-1 |
|
Inverter with converter assembly |
| HV36 |
2 |
Or |
B-1 |
|
| HV45 |
1 |
Or |
B-3 |
|
HV battery junction block assembly |
| HV48 |
1 |
Or |
B-3 |
|
| HV55 |
2 |
|
C-5 |
R517 |
Rear wiring harness LH |
| HV56 |
22 |
|
C-5 |
R515 |
| HV99 |
- |
- |
B-2 |
|
Inverter with converter assembly |
| HV100 |
1 |
B |
B-2 |
|
J/C |
| HV101 |
1 |
Or |
B-2 |
HV96 |
Hybrid cord |
| HV102 |
1 |
Or |
B-2 |
HV95 |
| HV103 |
- |
- |
C-2 |
|
Inverter with converter assembly |
| GB-11 |
- |
- |
C-2 |
|
- |
| GB-12 |
- |
- |
C-5 |
|
- |
| GB-13 |
- |
- |
B-4 |
|
- |
| GB-16 |
- |
- |
B-5 |
|
- |
