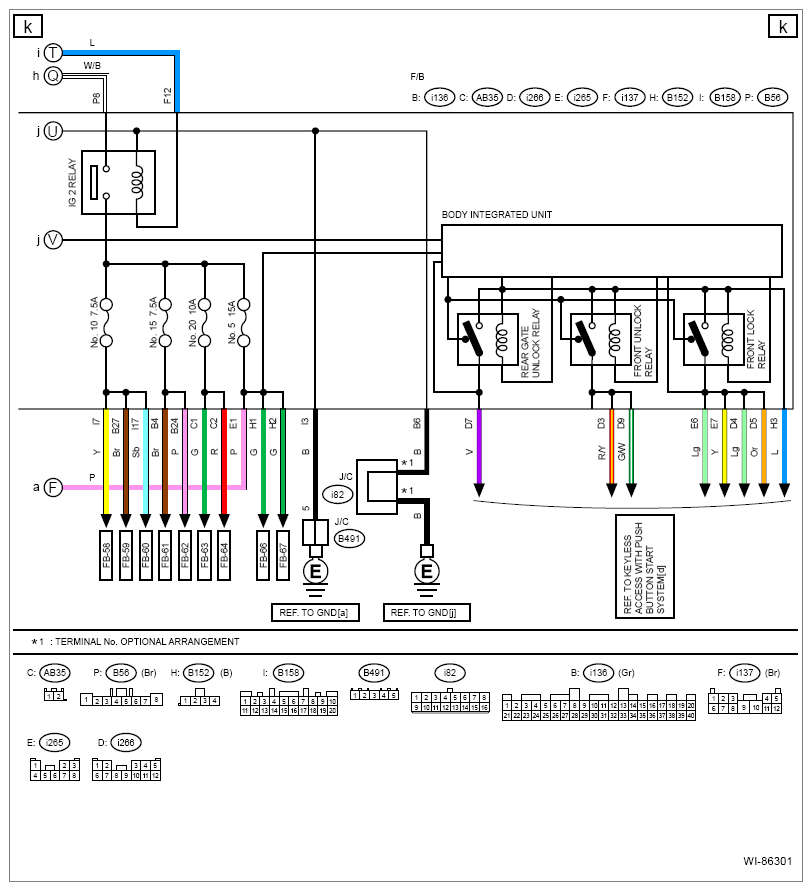

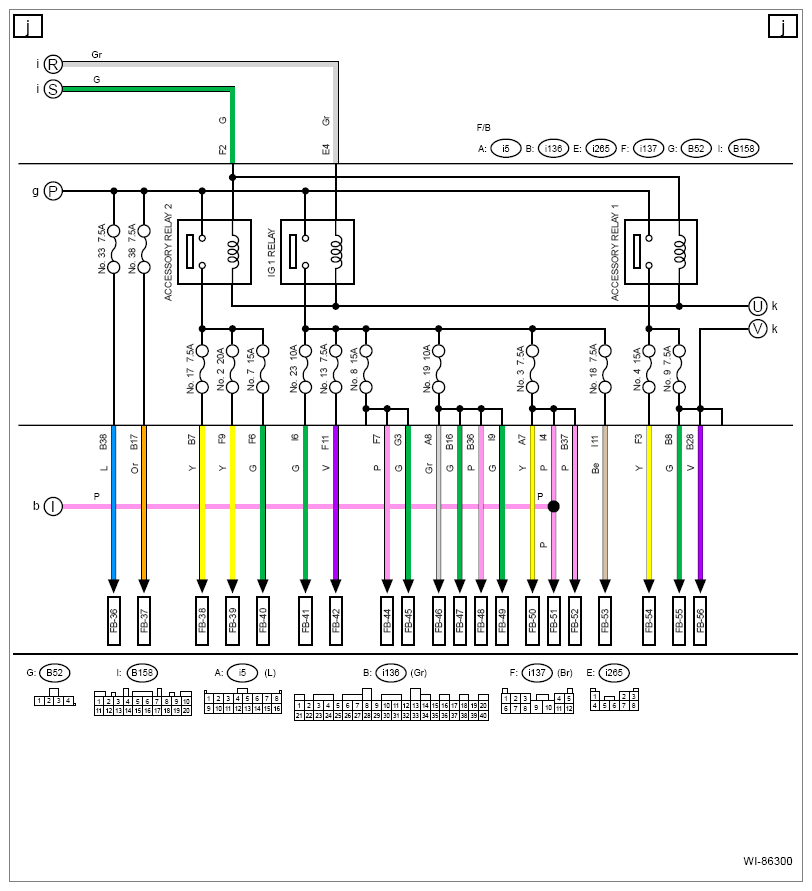

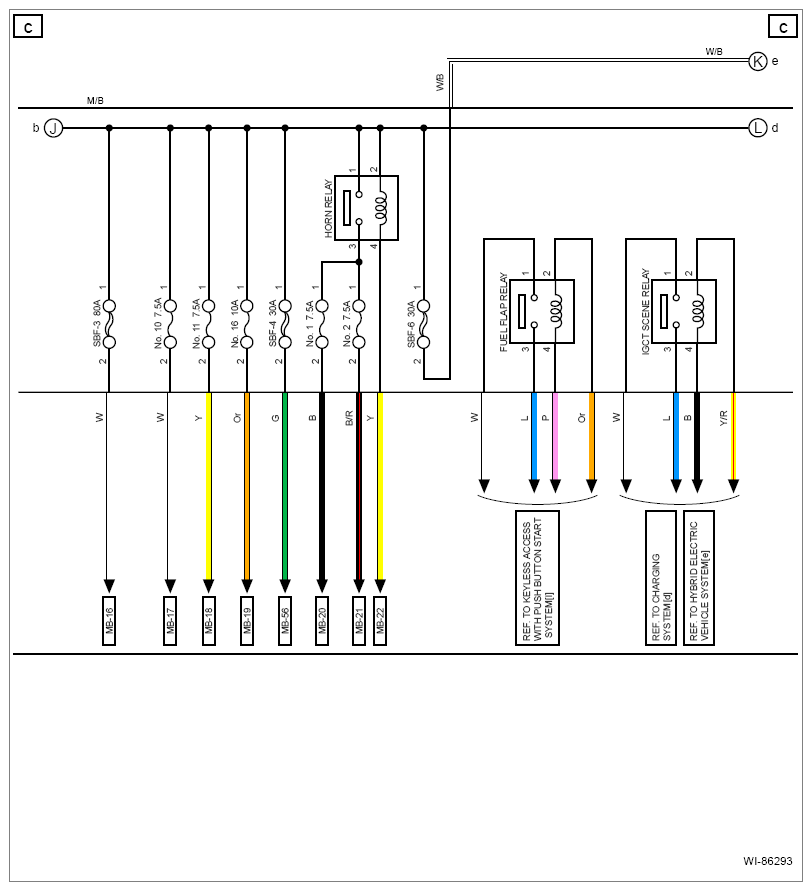

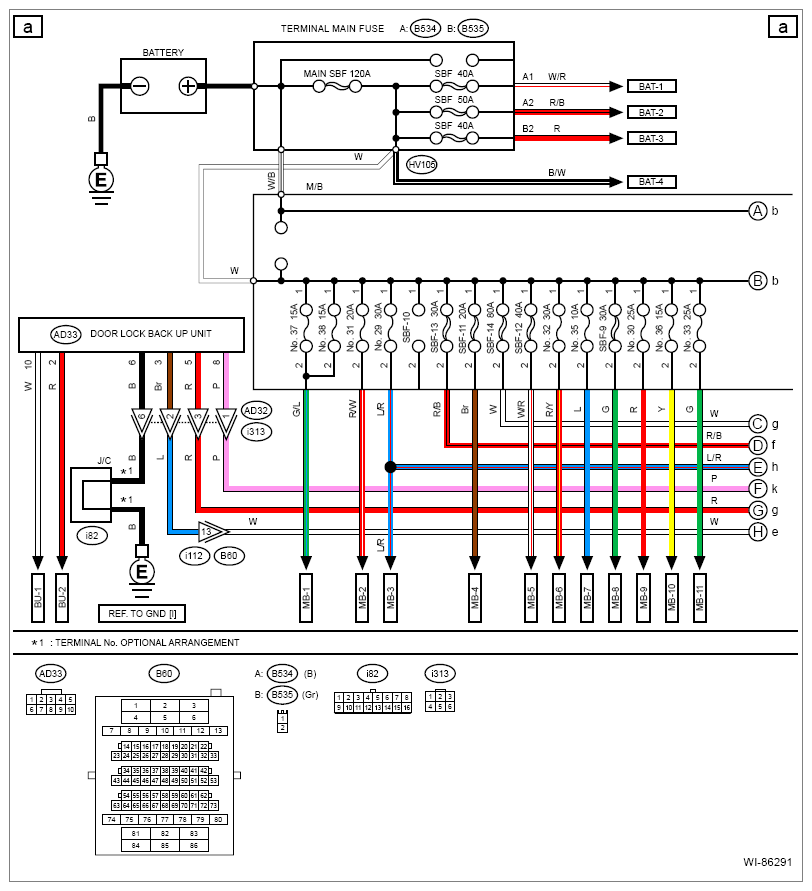

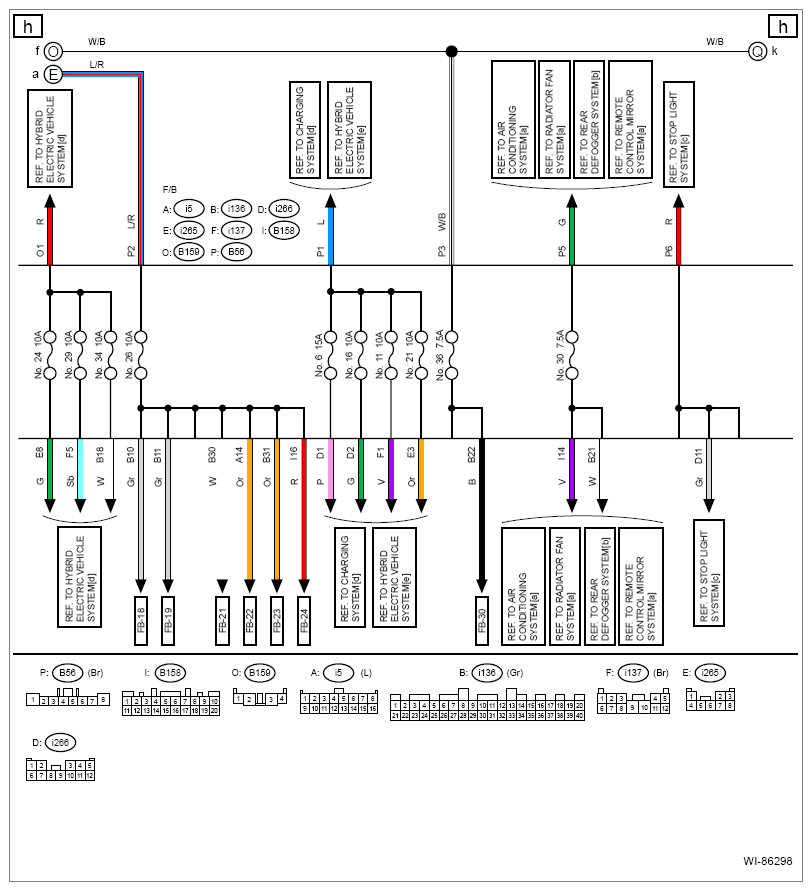

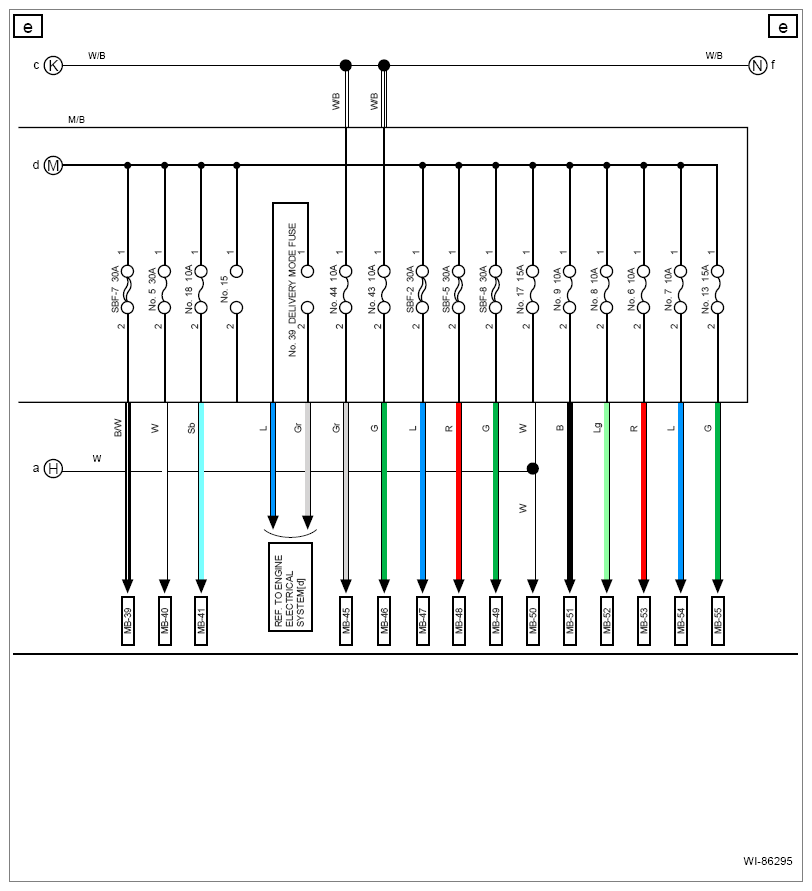

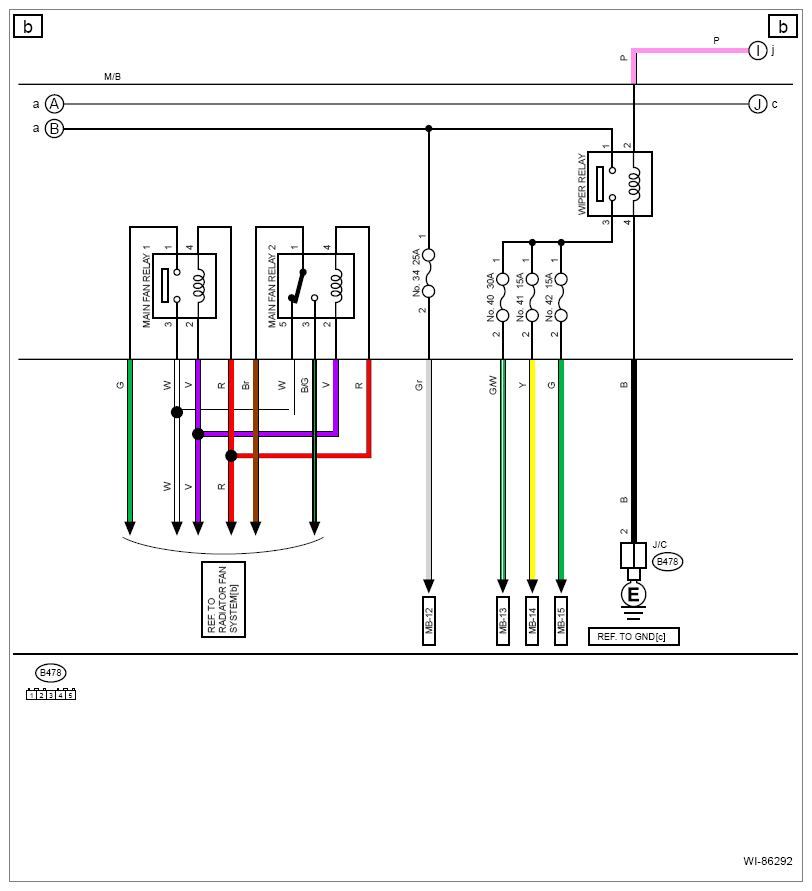

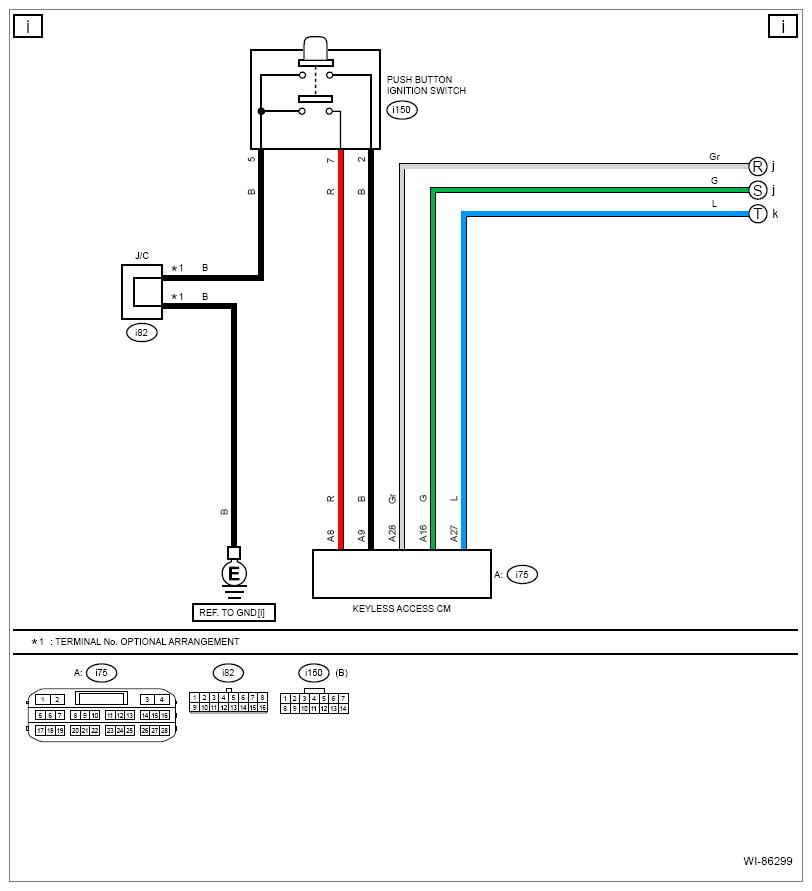

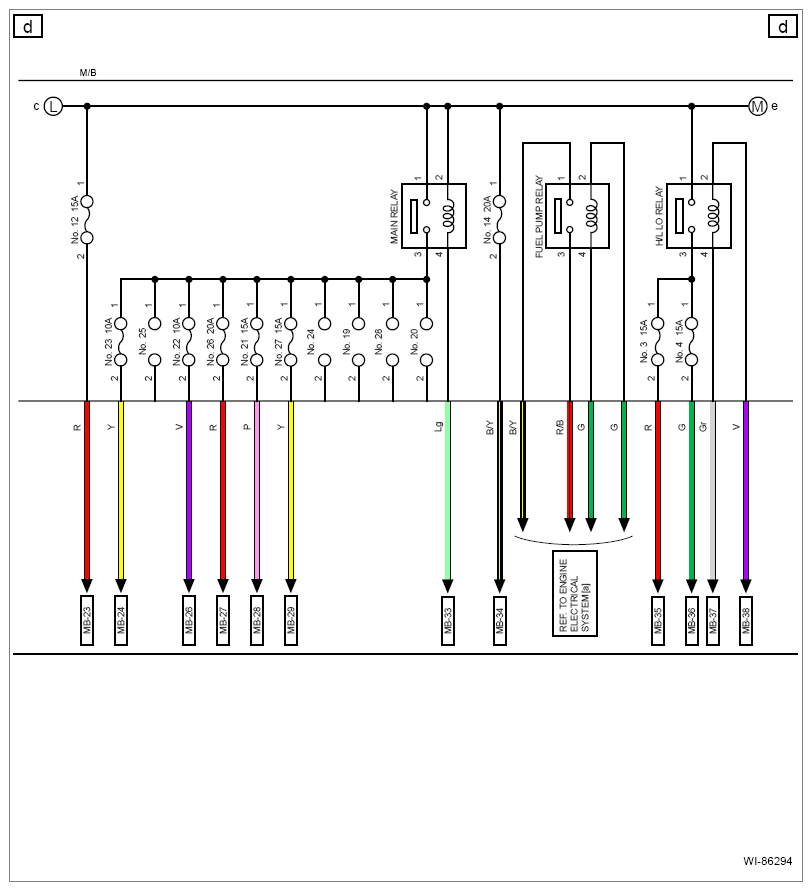

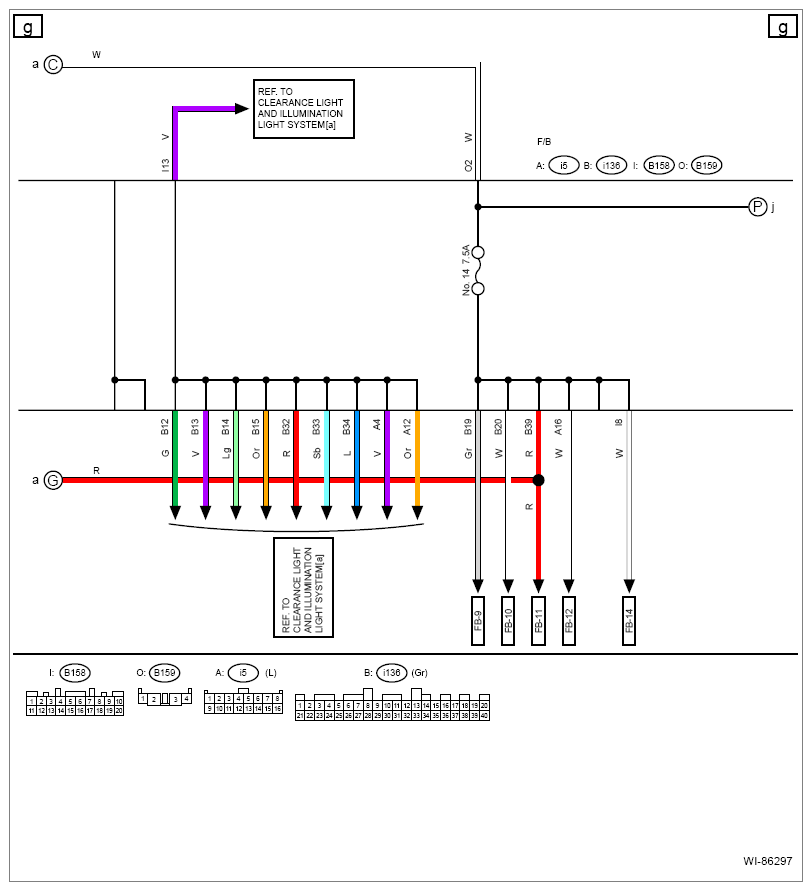

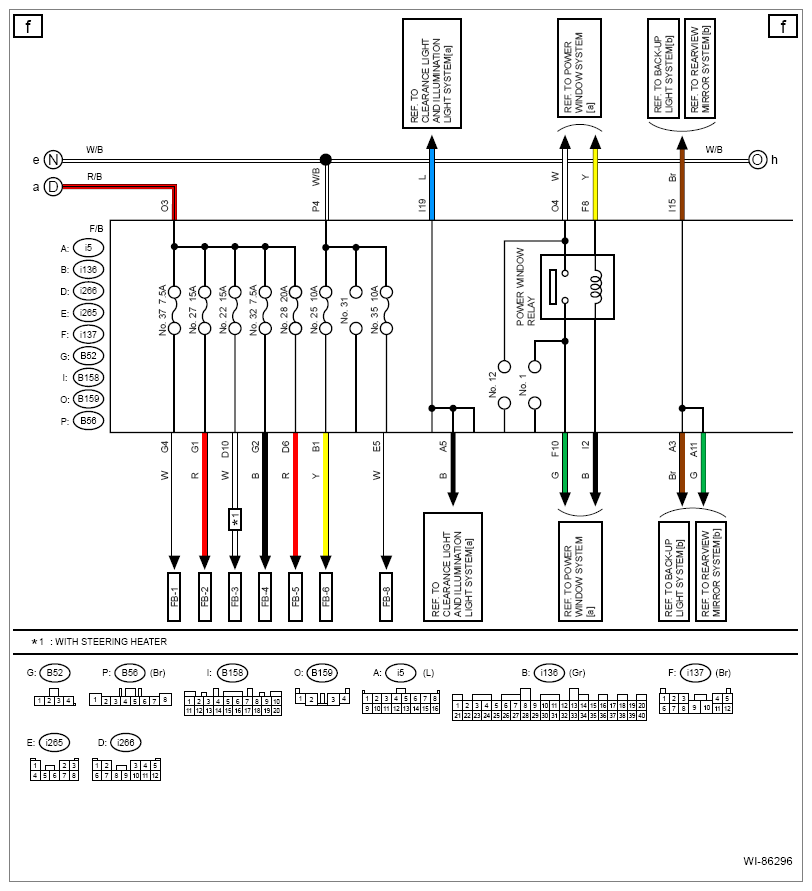

Power Supply Circuit: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
| No. | Load |
|---|---|
| MB-1 | Blower motor relay |
| MB-2 | Audio amplifier |
| Power amplifier | |
| MB-3 | Audio |
| Navigation unit | |
| MB-4 | HV battery heater relay |
| MB-5 | VDC Control Module |
| MB-6 | VDC Control Module |
| MB-7 | Wiper deicer relay |
| MB-8 | Electric vehicle charger assembly |
| MB-9 | Rear defogger relay |
| MB-10 | Active grille shutter |
| Front fog light relay | |
| MB-11 | Main fan relay 1 |
| MB-12 | Sub fan relay |
| MB-13 | Combination switch |
| Front wiper motor | |
| MB-14 | Front washer motor |
| MB-15 | Rear washer motor |
| Rear wiper motor | |
| Rear wiper relay | |
| MB-16 | Power steering Control Module |
| MB-17 | Data link connector |
| MB-18 | Battery sensor |
| Central gateway Control Module | |
| ECM | |
| MB-19 | AWD Control Module relay |
| Fuel flap relay | |
| MB-20 | Horn LH |
| MB-21 | Horn RH |
| MB-22 | Body integrated unit |
| Horn switch | |
| MB-23 | IGB relay |
| MB-24 | EGR control valve |
| Exhaust camshaft position sensor LH | |
| Exhaust camshaft position sensor RH | |
| Electric vent solenoid valve | |
| Intake camshaft position sensor LH | |
| Intake camshaft position sensor RH | |
| Leak check valve ASSY | |
| Purge control solenoid valve | |
| MB-26 | Exhaust oil control solenoid LH |
| Exhaust oil control solenoid RH | |
| Intake oil control solenoid LH | |
| Intake oil control solenoid RH | |
| MB-27 | Front oxygen (A/F) sensor |
| Rear oxygen sensor | |
| MB-28 | Ignition coil No. 1 |
| Ignition coil No. 2 | |
| Ignition coil No. 3 | |
| Ignition coil No. 4 | |
| MB-29 | ECM |
| MB-33 | ECM |
| MB-34 | Fuel pump relay |
| MB-35 | Front combination light RH |
| MB-36 | Front combination light LH |
| MB-37 | Body integrated unit |
| Daytime running light relay | |
| MB-38 | Body integrated unit |
| MB-39 | Power window circuit breaker |
| MB-40 | IGCT scene relay |
| MB-41 | Data communication module |
| MB-45 | EBBCM |
| MB-46 | EBBCM |
| MB-47 | EBBCM |
| MB-48 | EBBCM |
| MB-49 | IGCT IG relay |
| MB-50 | Fuel flap relay |
| MB-51 | Occupant detection Control Module |
| MB-52 | Body integrated unit |
| MB-53 | Body integrated unit |
| MB-54 | Body integrated unit |
| MB-55 | Body integrated unit |
| MB-56 | EBBCM |
| BU-1 | Body integrated unit |
| BU-2 | Body integrated unit |
| Front lock relay | |
| Front unlock relay | |
| Rear gate unlock relay | |
| FB-1 | Stop light & brake switch |
| Stop light relay | |
| FB-2 | A/C relay |
| Cable EV charger lock assembly | |
| Charge inlet switch | |
| FB-3 | Steering heater relay |
| FB-4 | Body integrated unit |
| FB-5 | Trailer connector |
| FB-6 | Battery ECU assembly |
| Hybrid vehicle control ECU assembly | |
| FB-8 | AWD Control Module |
| Fuel door release switch | |
| High pressure solenoid valve | |
| Low pressure solenoid valve | |
| Fuel fill door position switch | |
| FB-9 | EPB control switch |
| FB-10 | Combination meter |
| FB-11 | A/C Control Module |
| Heat pump Control Module | |
| FB-12 | TPMS Control Module |
| FB-14 | Auto headlight beam leveler Control Module |
| FB-18 | MFD |
| FB-19 | Outer mirror ASSY RH |
| FB-21 | Outer mirror ASSY LH |
| FB-22 | Luggage room light |
| FB-23 | Room light |
| Spot map light | |
| Vanity mirror light LH | |
| Vanity mirror light RH | |
| Warning box | |
| FB-24 | Body integrated unit |
| FB-30 | Keyless access Control Module |
| Steering lock Control Module | |
| FB-36 | Keyless access Control Module |
| FB-37 | RAB Control Module |
| Stereo camera | |
| FB-38 | Rear view mirror |
| Remote control mirror switch | |
| FB-39 | Front accessory power supply socket |
| Seat heater switch | |
| FB-40 | Rear accessory power supply socket (console) |
| FB-41 | Daytime running light relay |
| FB-42 | Steering lock Control Module |
| FB-44 | A/C Control Module |
| Data communication module | |
| FB-45 | Wiper deicer relay |
| FB-46 | RAB Control Module |
| Radar sensor LH (master) | |
| Radar sensor RH (slave) | |
| TPMS Control Module | |
| FB-47 | BSD/RCTA OFF switch |
| Data link connector | |
| FB-48 | Stereo camera |
| Sunroof unit | |
| Warning box | |
| FB-49 | Stop light & brake switch |
| FB-50 | Power window relay |
| FB-51 | EBBCM |
| Pedestrian alert Control Module | |
| FB-52 | Hill hold switch |
| Shift position indicator | |
| FB-53 | Auto headlight beam leveler Control Module |
| Back-up light relay | |
| Front combination light LH | |
| Front combination light RH | |
| FB-54 | Audio |
| Audio amplifier | |
| AUX input terminal (console) | |
| AUX input terminal (instrument panel) | |
| Data communication module | |
| Navigation unit | |
| FB-55 | A/C Control Module |
| FB-56 | Body integrated unit |
| Central gateway Control Module | |
| Steering heater relay | |
| FB-58 | EBBCM |
| Stop light relay | |
| VDC Control Module | |
| FB-59 | Central gateway Control Module |
| Steering angle sensor | |
| FB-60 | AWD Control Module |
| Power steering Control Module | |
| FB-61 | MFD |
| FB-62 | Combination meter |
| FB-63 | Airbag Control Module |
| FB-64 | Occupant detection Control Module |
| FB-66 | Hybrid vehicle control ECU assembly |
| FB-67 | ECM |
| Fuel pump relay | |
| BAT-1 | PTC heater relay 2 |
| BAT-2 | PTC heater relay 1 |
| BAT-3 | PTC heater relay 3 |
| BAT-4 | Inverter with converter assembly |
