Parking Brake/Brake Fluid Level Warning Light System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

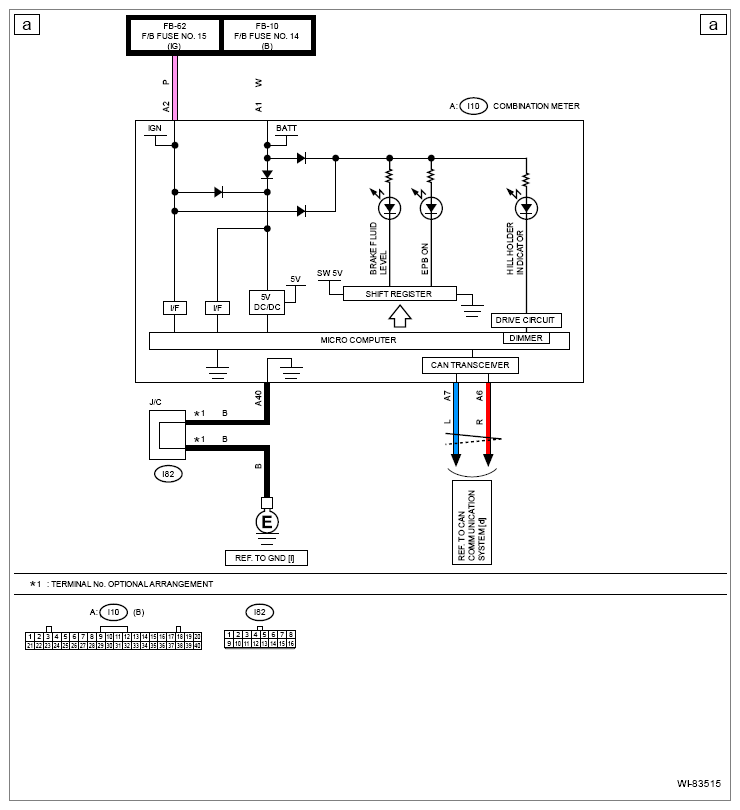

G13236620Courtesy of SUBARU OF AMERICA, INC.

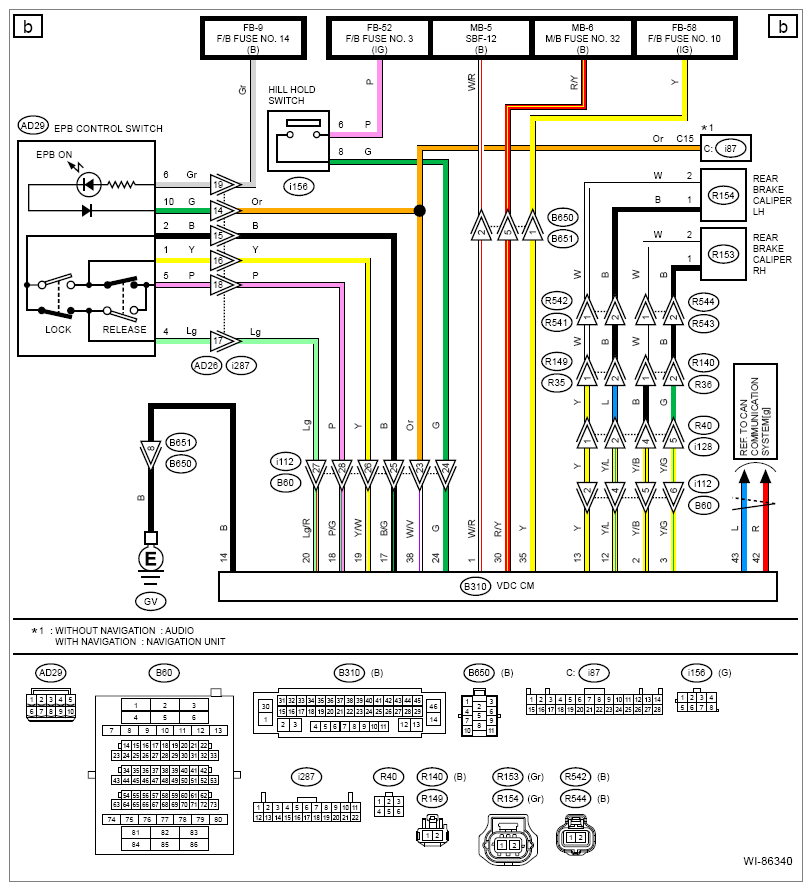

G13614474Courtesy of SUBARU OF AMERICA, INC.
