Occupant Detection System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

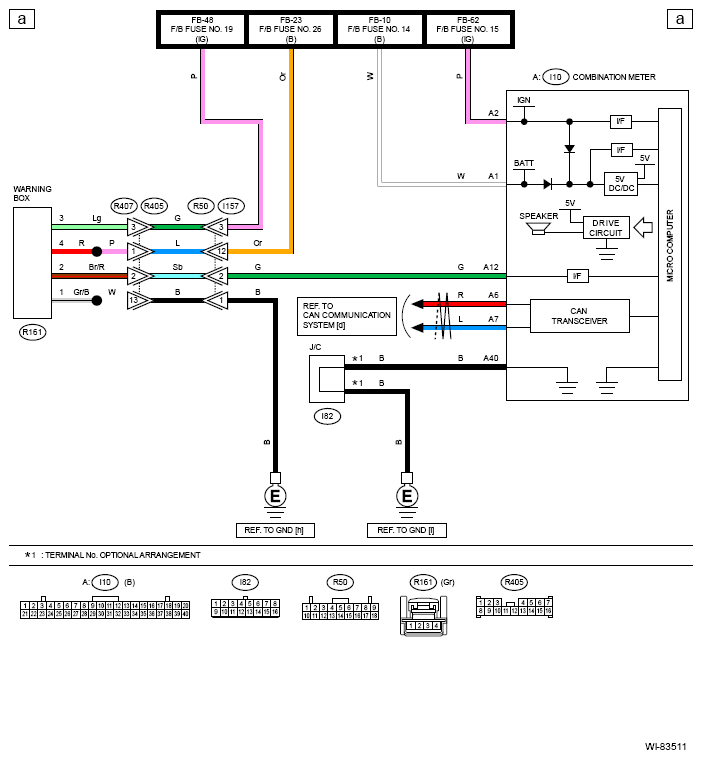

G13236616Courtesy of SUBARU OF AMERICA, INC.

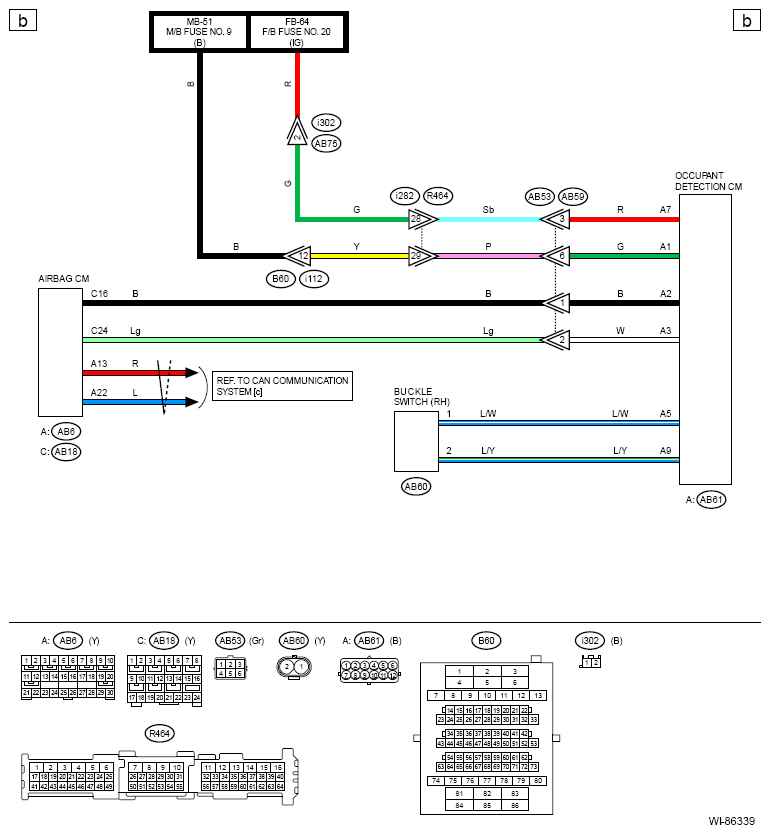

G13614470Courtesy of SUBARU OF AMERICA, INC.
G13236618Courtesy of SUBARU OF AMERICA, INC.
