Interior Light System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

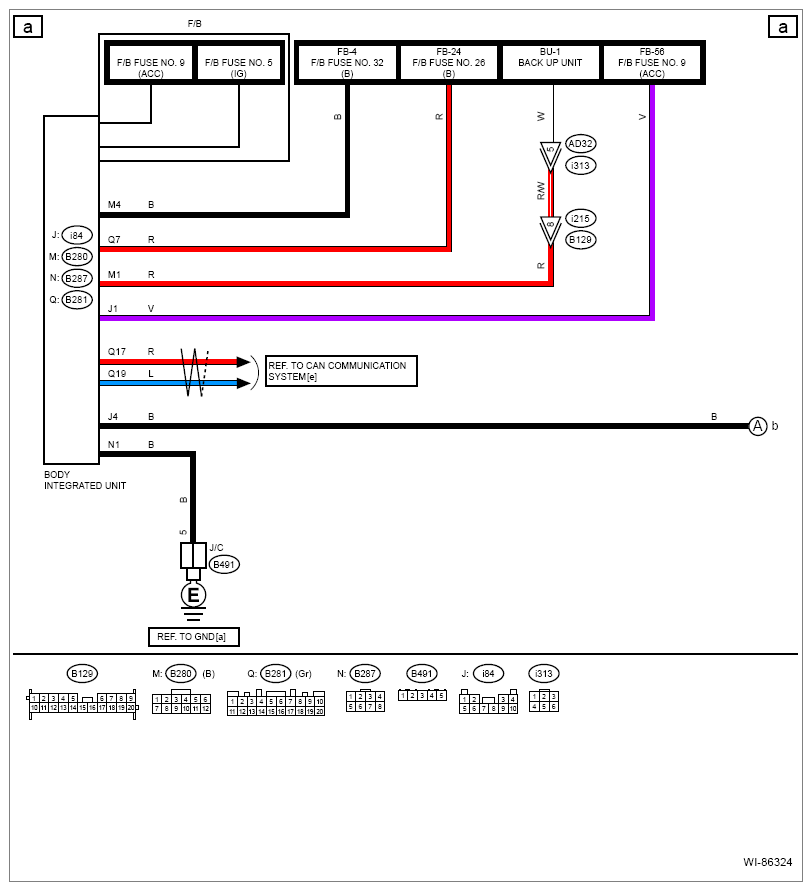

G13614440Courtesy of SUBARU OF AMERICA, INC.

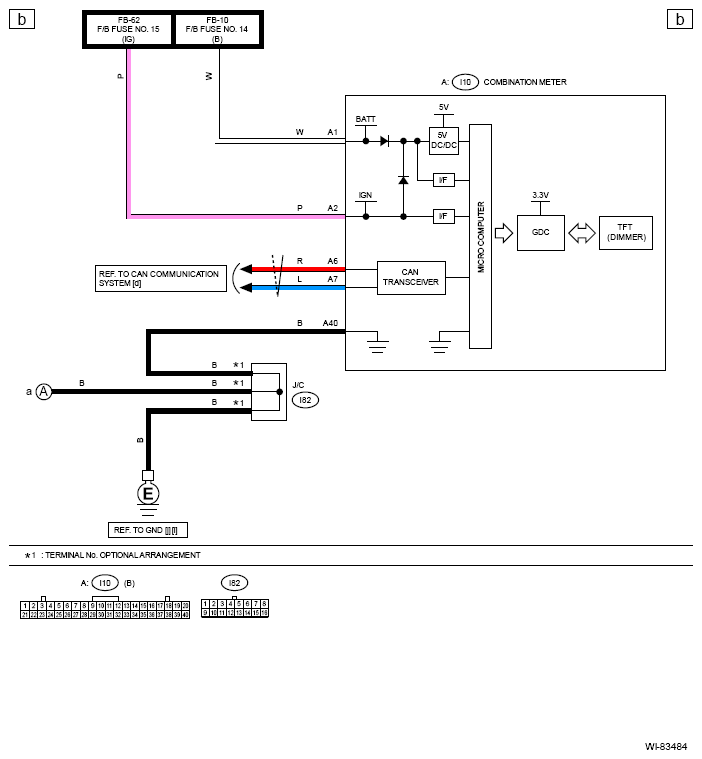

G13236589Courtesy of SUBARU OF AMERICA, INC.

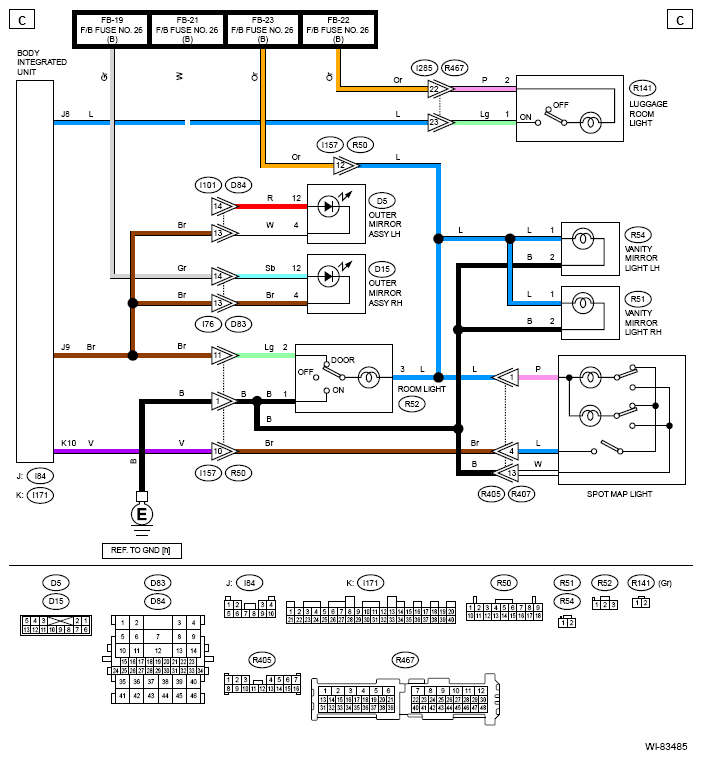

G13236590Courtesy of SUBARU OF AMERICA, INC.

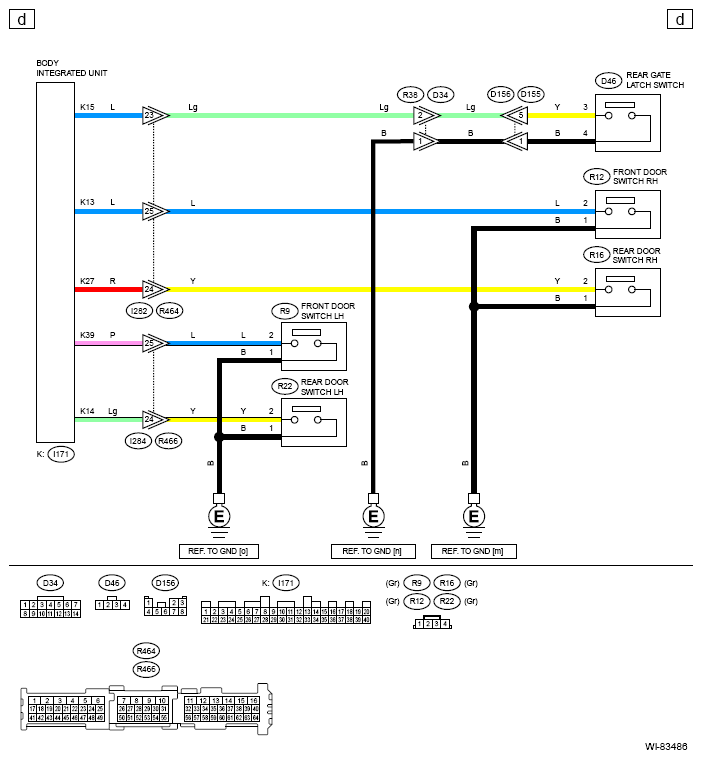

G13236591Courtesy of SUBARU OF AMERICA, INC.
