Passenger Room Side

WARNING: This page is about a different variant/trim than selected.

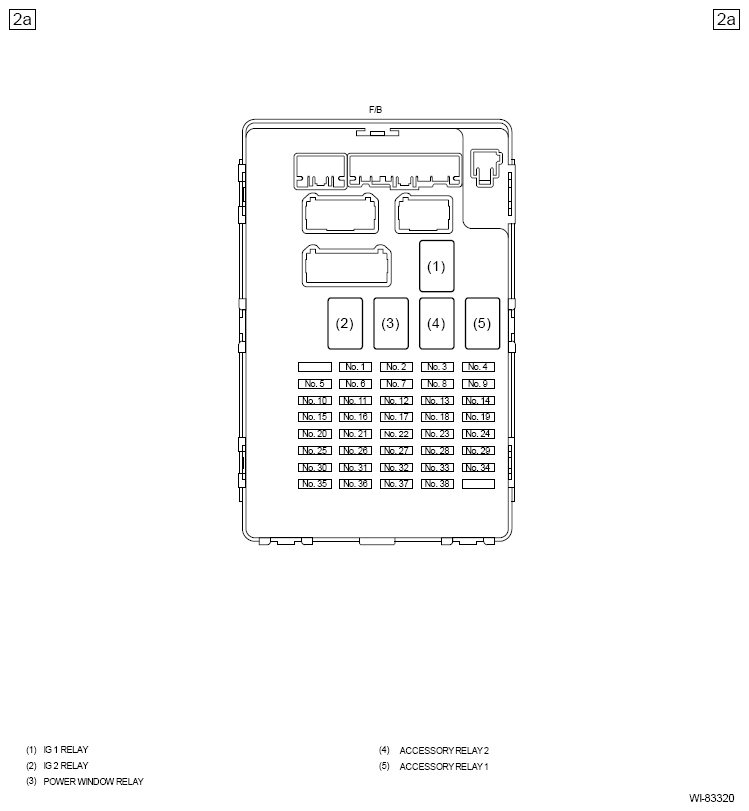

Fig 1: Passenger Room Fuse And Relay Idetification (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

PASSENGER ROOM RELAY IDENTIFICATION (1 OF 3)

Fig 2: Passenger Room Fuse And Relay Idetification (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

PASSENGER ROOM RELAY IDENTIFICATION (2 OF 3)

Relay Description
Steering Heater Relay

Fig 3: Passenger Room Fuse And Relay Idetification (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

PASSENGER ROOM RELAY IDENTIFICATION (3 OF 3)

Relay Description
Back-up Light Relay
IGB Relay

Courtesy of SUBARU OF AMERICA, INC.

Pole	Fuse rating	Connecting to
1.6	-	-
2.7	7.5A	Body integrated unit (lock)
2.7	7.5A	Front door lock actuator LH (unlock)
3.8	7.5A	Front unlock relay (lock)
3.8	7.5A	Rear door lock actuator RH (unlock)
4.9	7.5A	Front unlock relay (lock)
4.9	7.5A	Rear door lock actuator LH (unlock)
5.10	-	-
