Section 4 (OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (HEV))
>>
EyeSight System
>>
Wiring Diagram

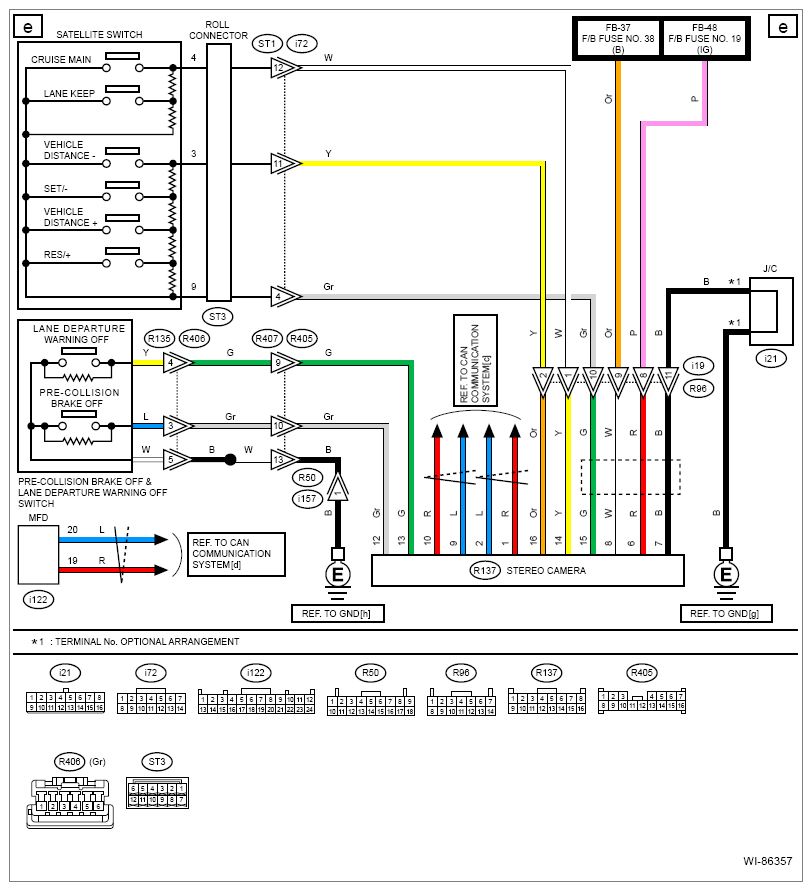

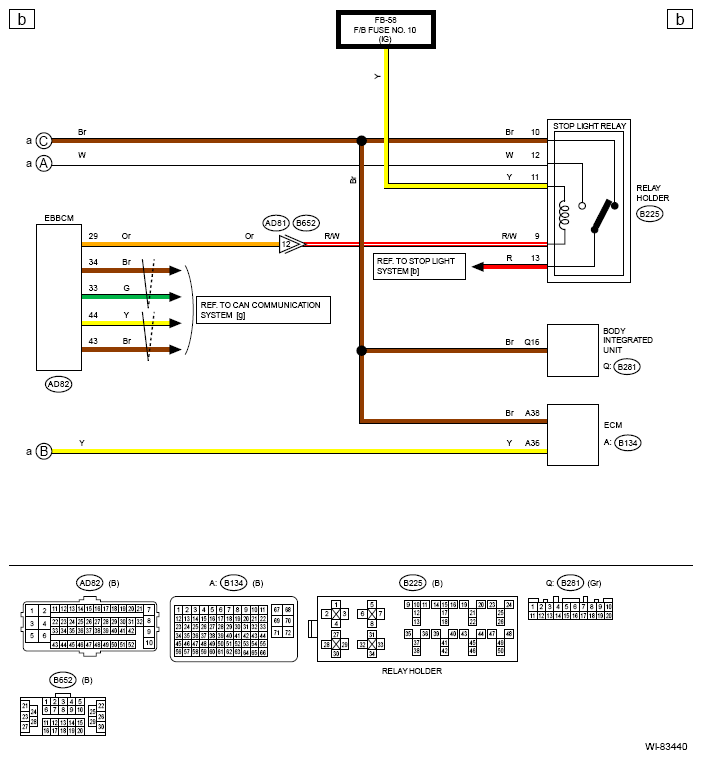

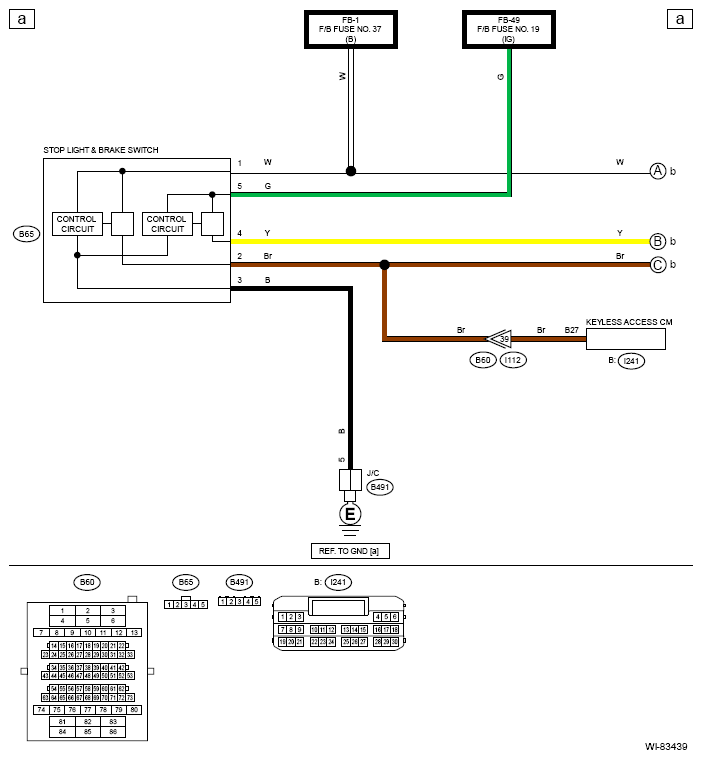

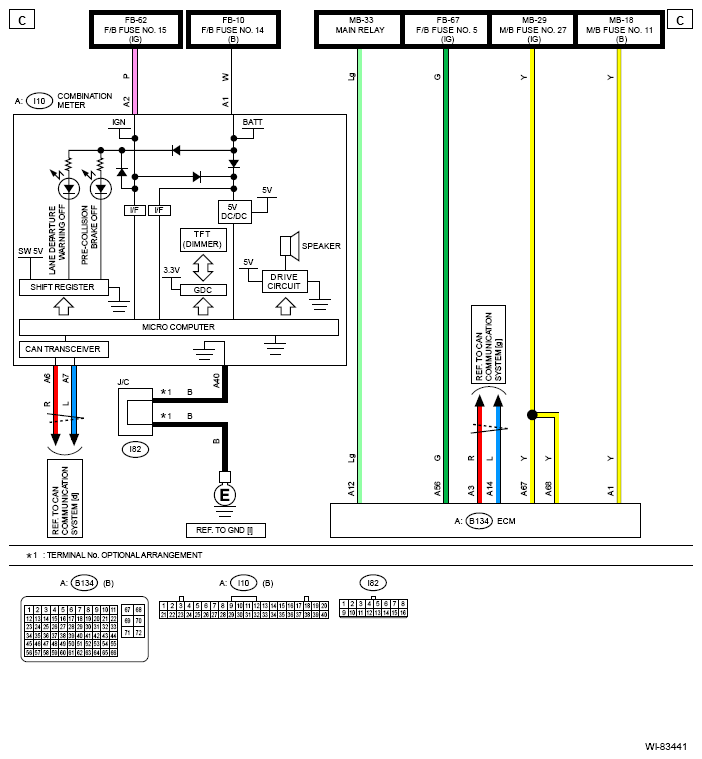

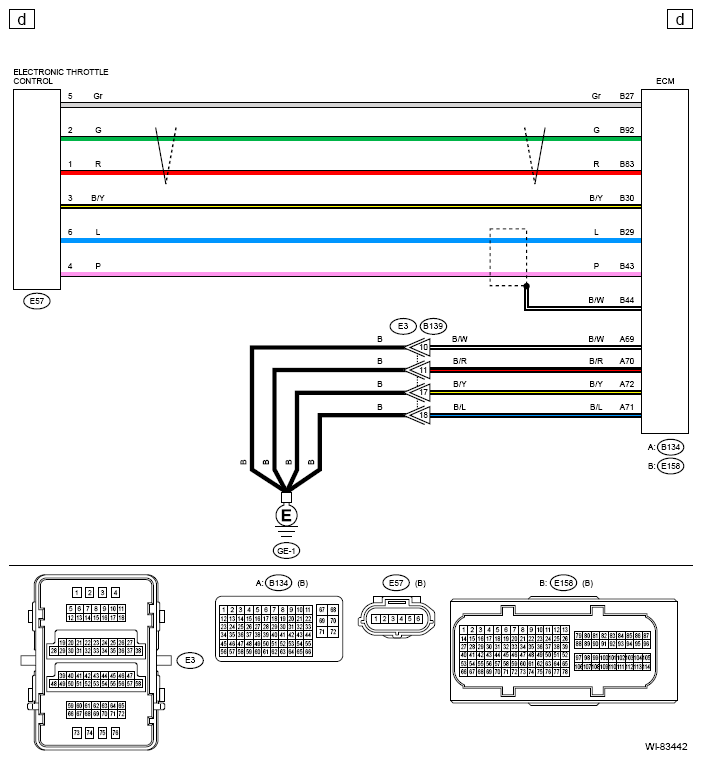

EyeSight System: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
