Electric Control Brake System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

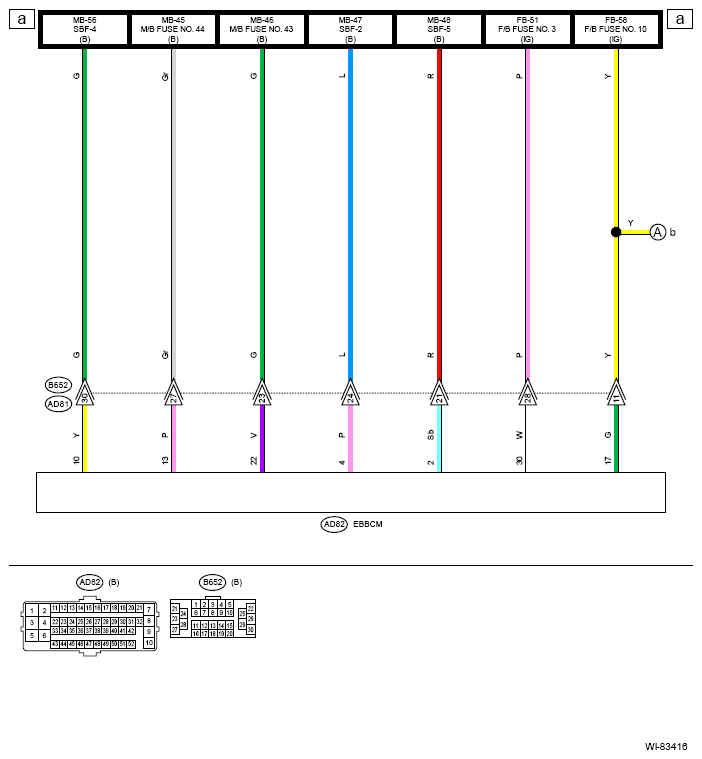

G13236522Courtesy of SUBARU OF AMERICA, INC.

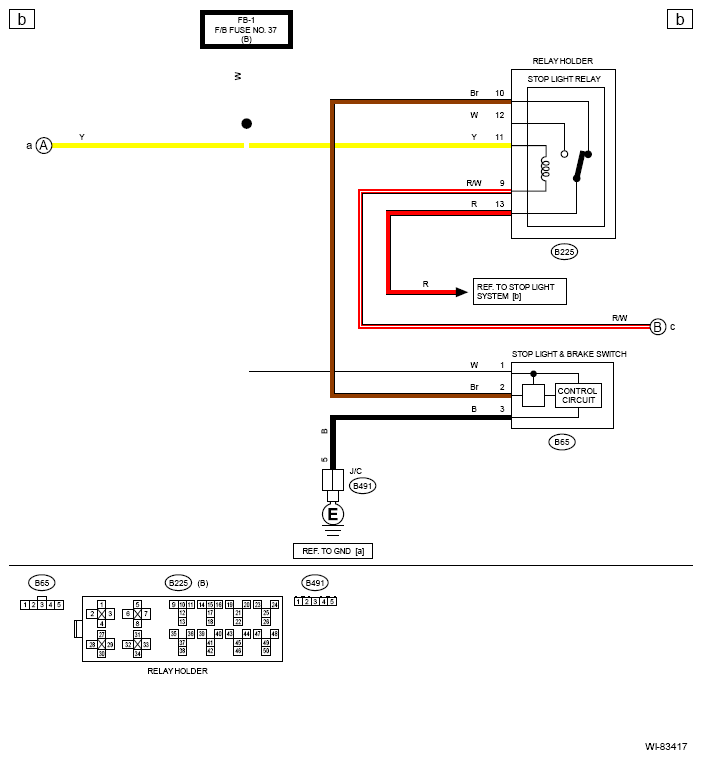

G13236523Courtesy of SUBARU OF AMERICA, INC.

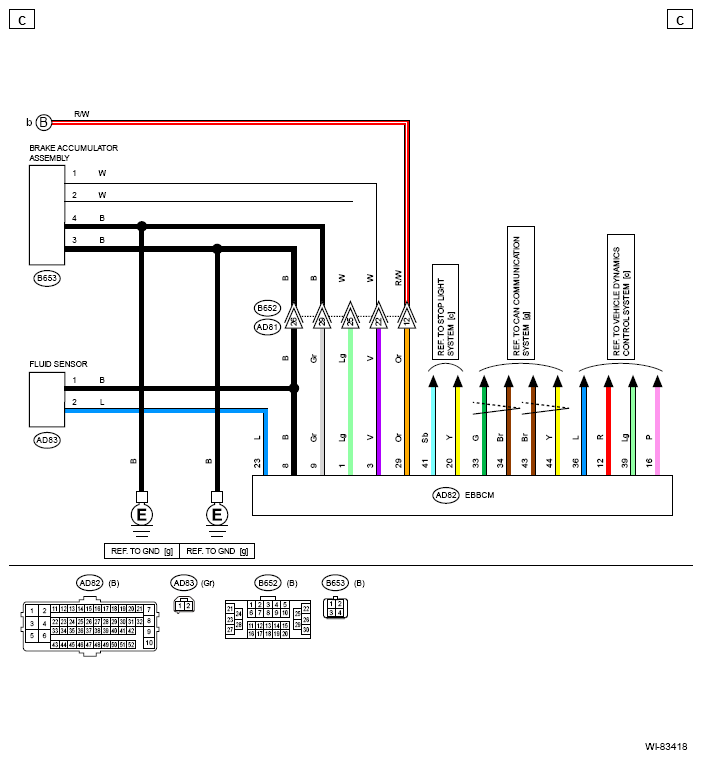

G13236524Courtesy of SUBARU OF AMERICA, INC.

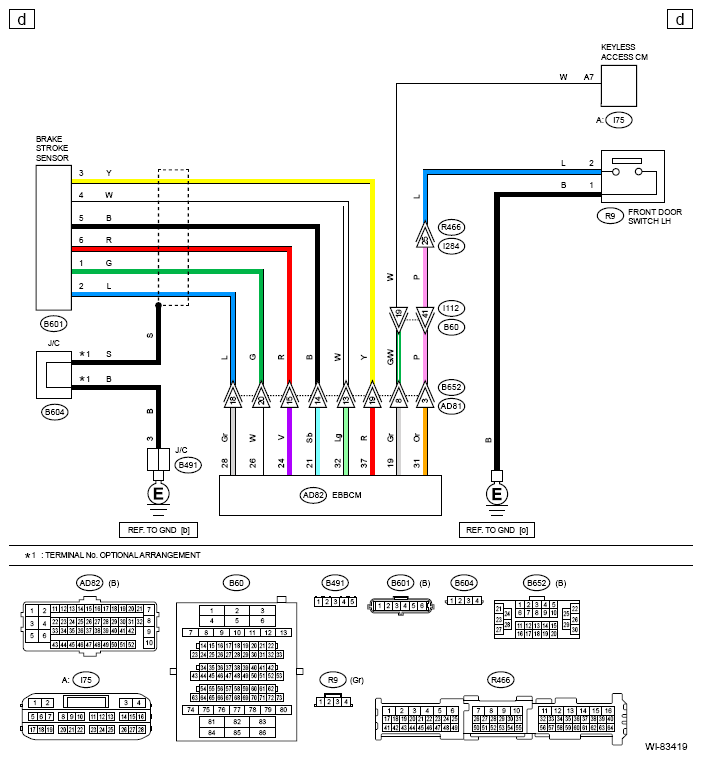

G13236525Courtesy of SUBARU OF AMERICA, INC.
