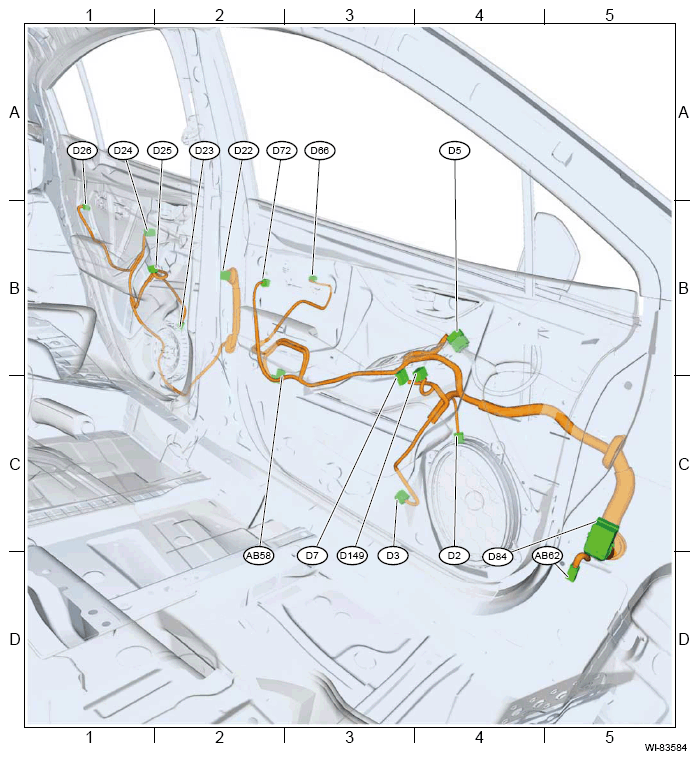

Door Cord LH: Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| AB58 |
2 |
Y |
C-2 |
|
Airbag door sensor LH |
| AB62 |
2 |
Y |
D-5 |
R123 |
Rear wiring harness LH |
| D2 |
2 |
|
C-4 |
|
Front door speaker LH |
| D3 |
8 |
B |
C-3 |
|
Front power window motor LH |
| D5 |
13 |
|
B-4 |
|
Outer mirror ASSY LH |
| D7 |
16 |
B |
C-3 |
|
Power window main switch |
| D22 |
12 |
|
B-2 |
R10 |
Rear wiring harness LH |
| D23 |
2 |
|
B-2 |
|
Rear door speaker LH |
| D24 |
2 |
B |
B-1 |
|
Rear power window motor LH |
| D25 |
5 |
|
B-2 |
|
Rear power window switch LH |
| D26 |
10 |
|
B-1 |
|
Rear door lock actuator LH |
| D66 |
6 |
|
B-3 |
|
Outer handle LH |
| D72 |
10 |
|
B-2 |
|
Front door lock actuator LH |
| D84 |
46 |
|
C-5 |
i101 |
Instrument panel wiring harness |
| D149 |
24 |
|
B-4 |
|
Remote control mirror switch |
