Section 4 (OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (HEV))
>>
Combination Meter System
>>
Wiring Diagram

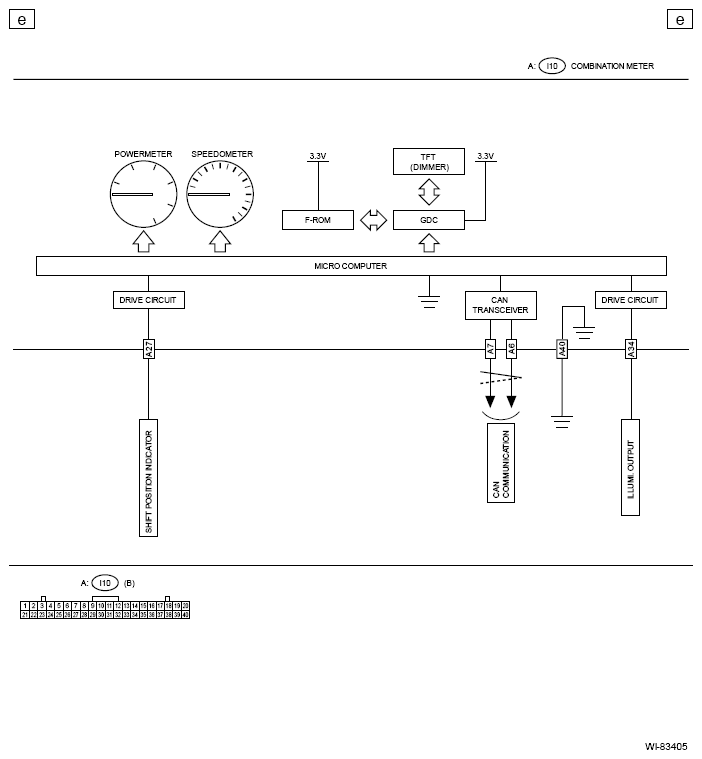

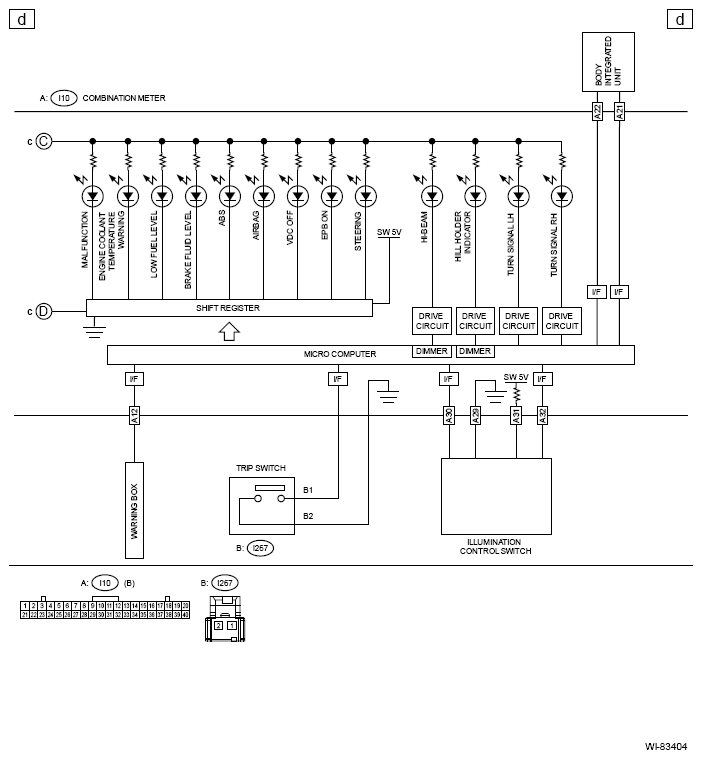

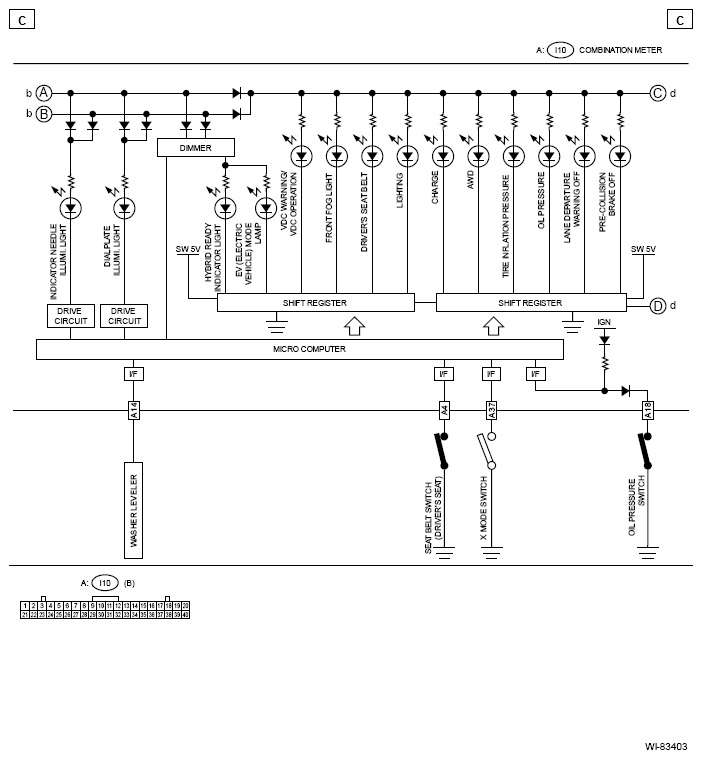

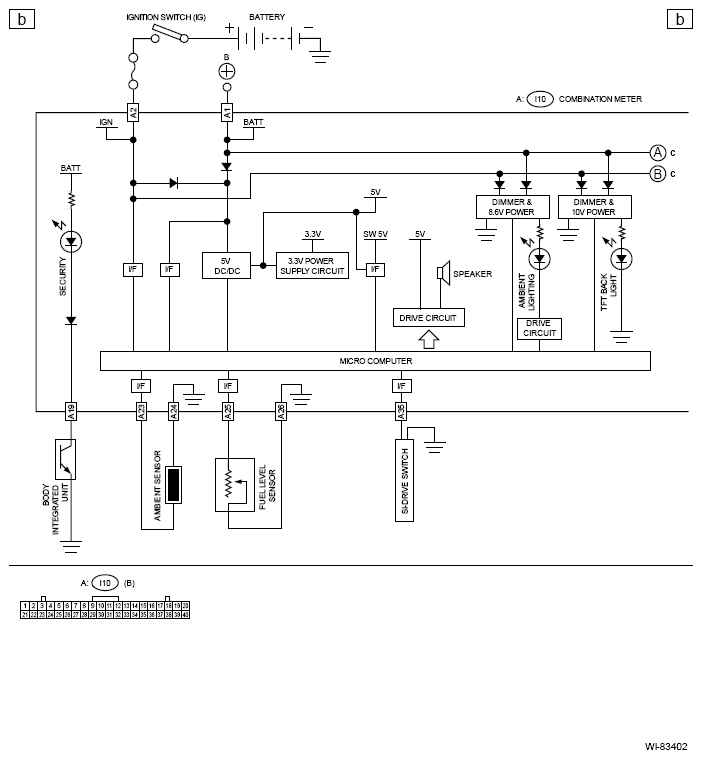

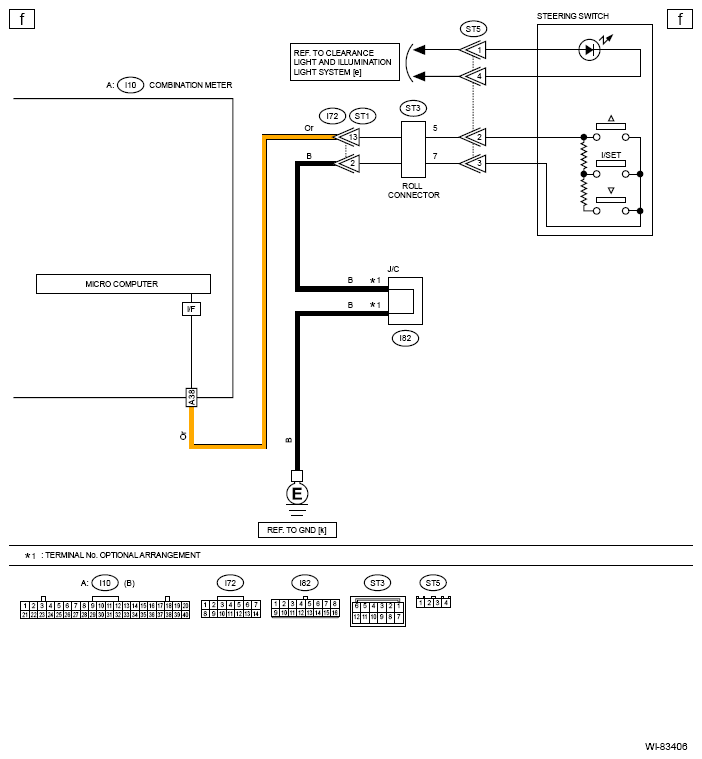

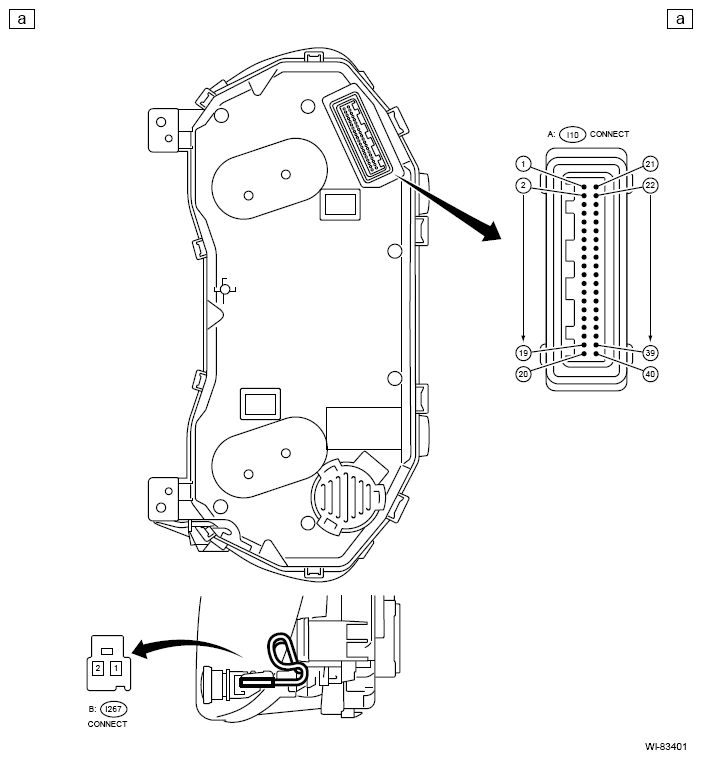

Combination Meter System: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
