Section 4 (OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (HEV))
>>
Clearance Light And Illumination Light System
>>
Wiring Diagram

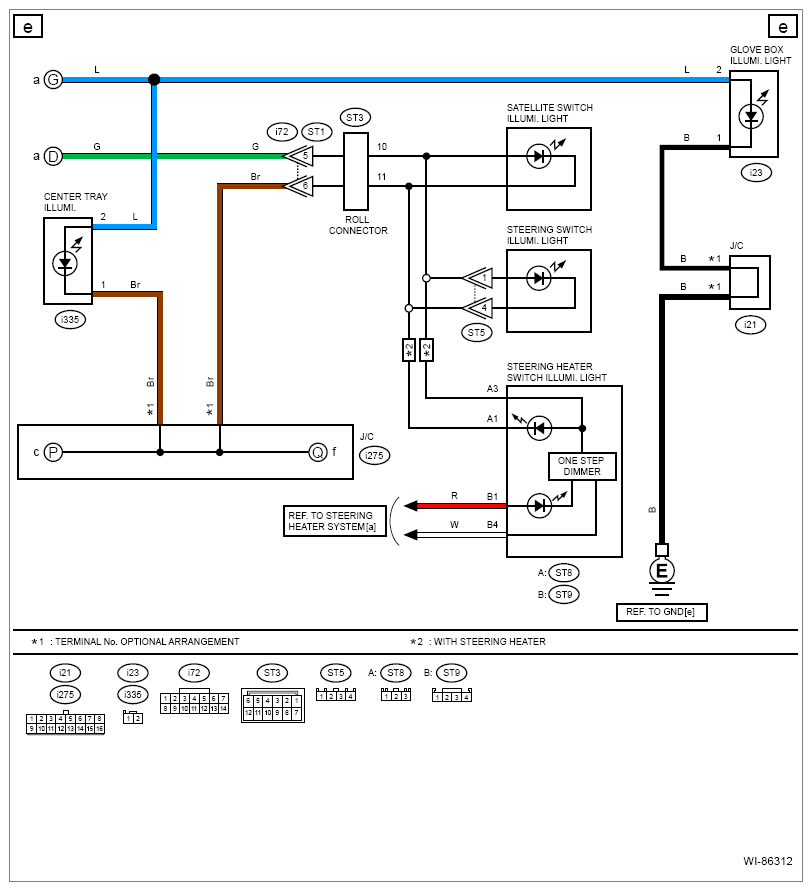

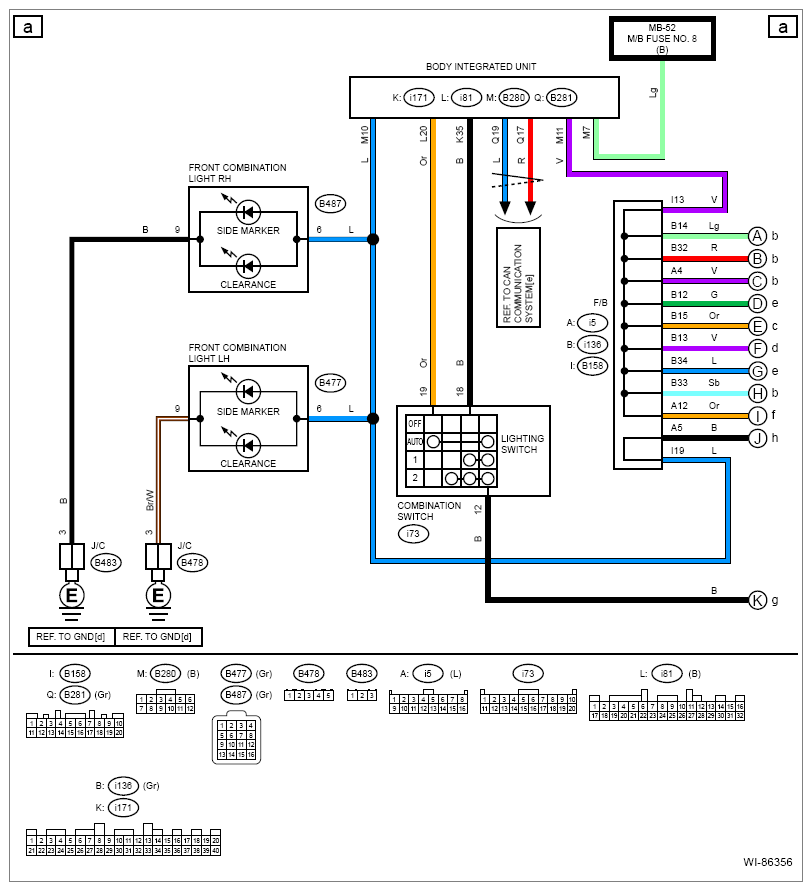

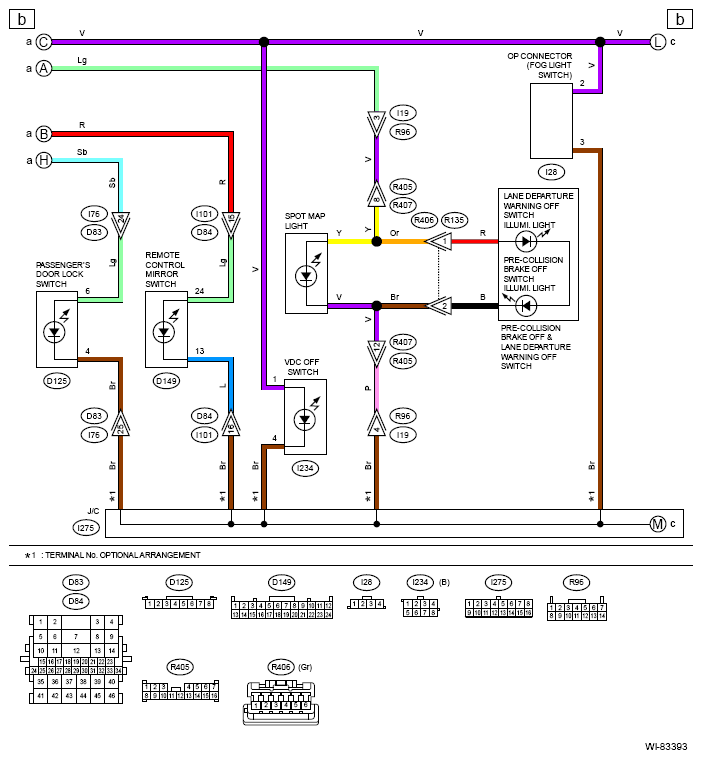

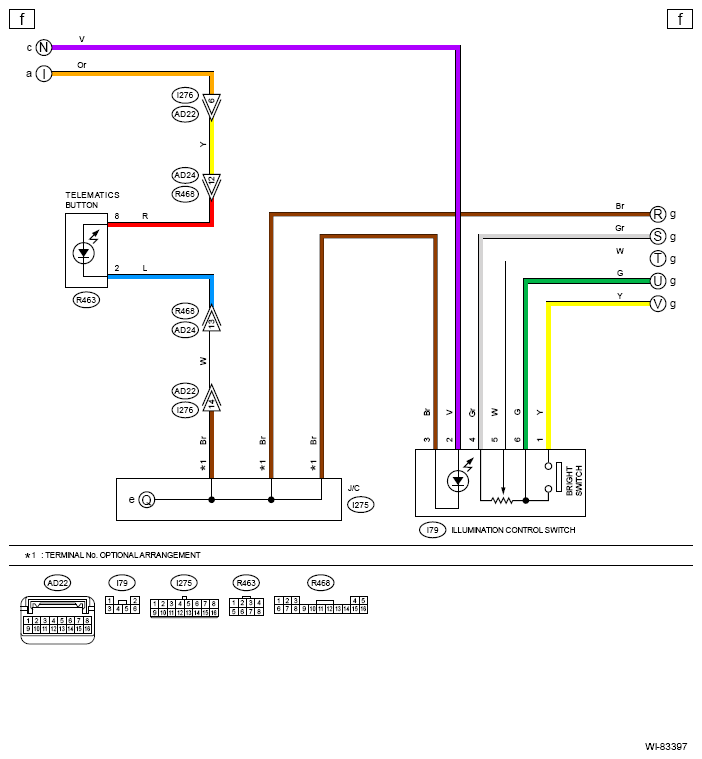

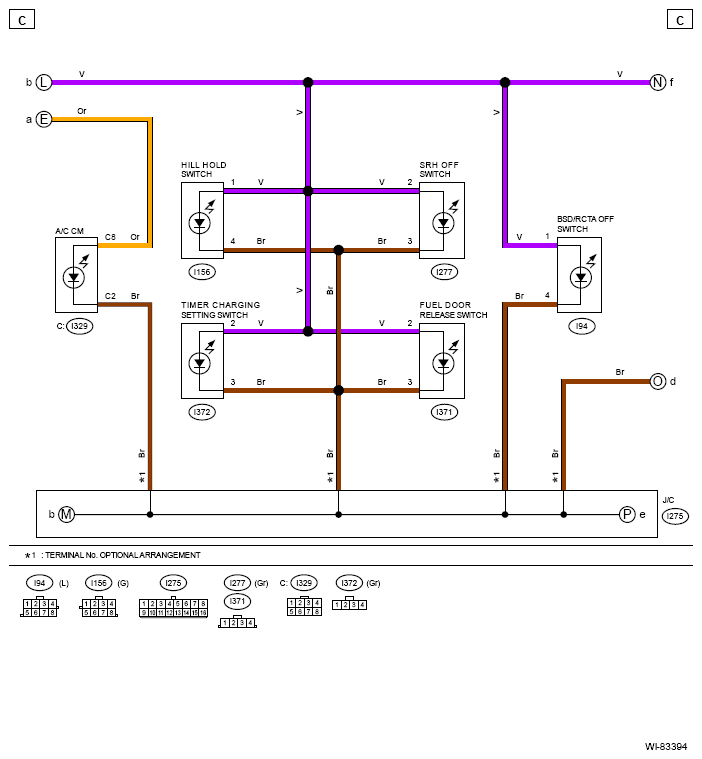

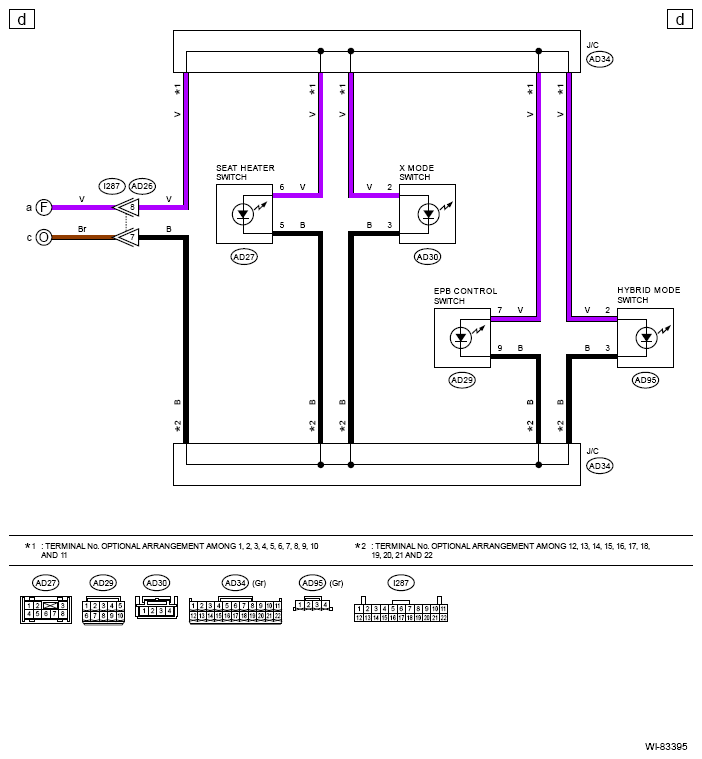

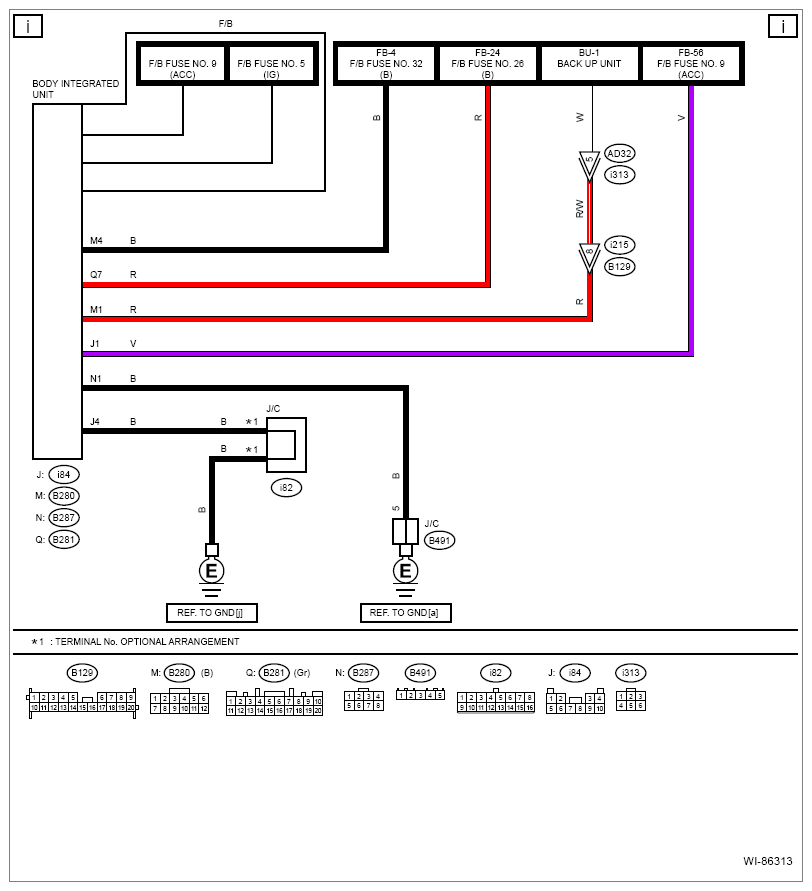

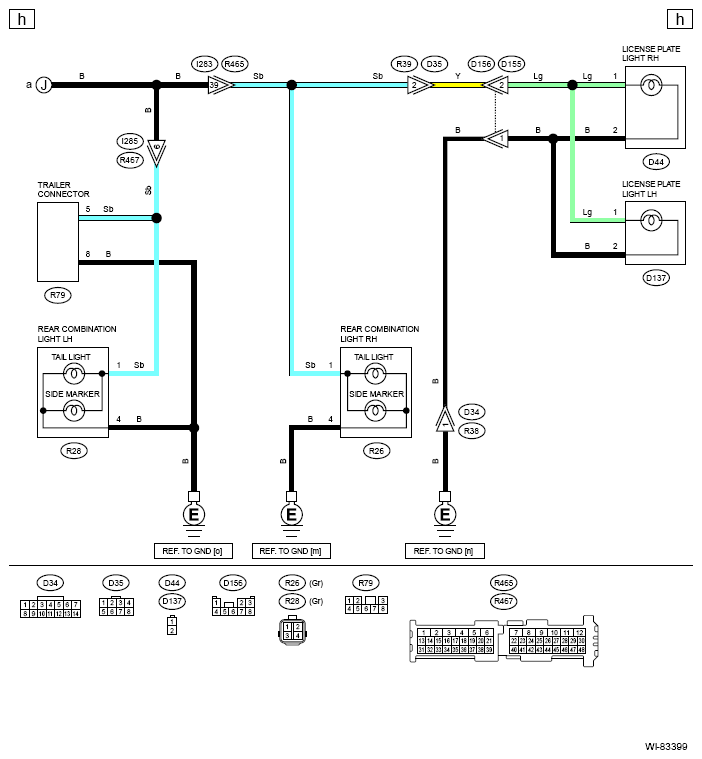

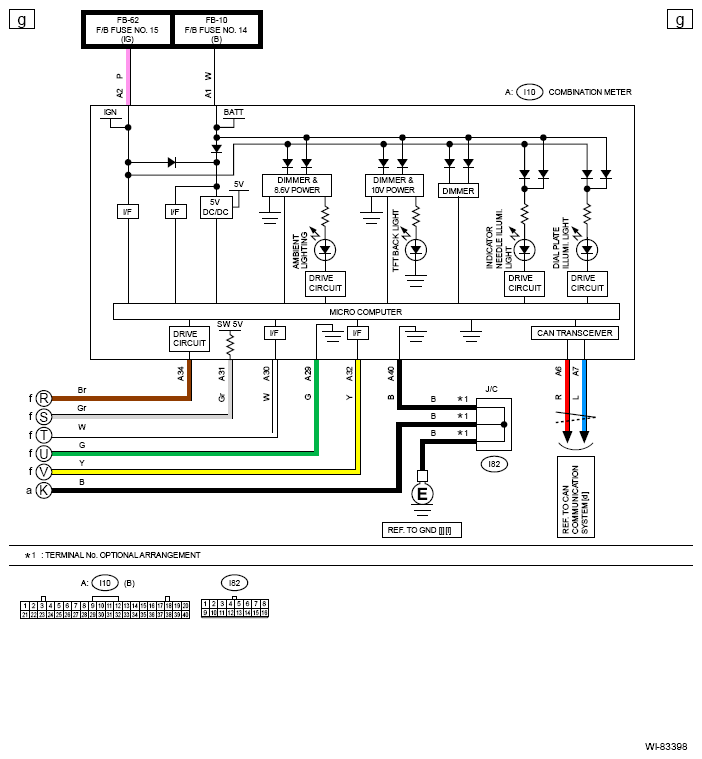

Clearance Light And Illumination Light System: Wiring Diagram
