Back-Up Light System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

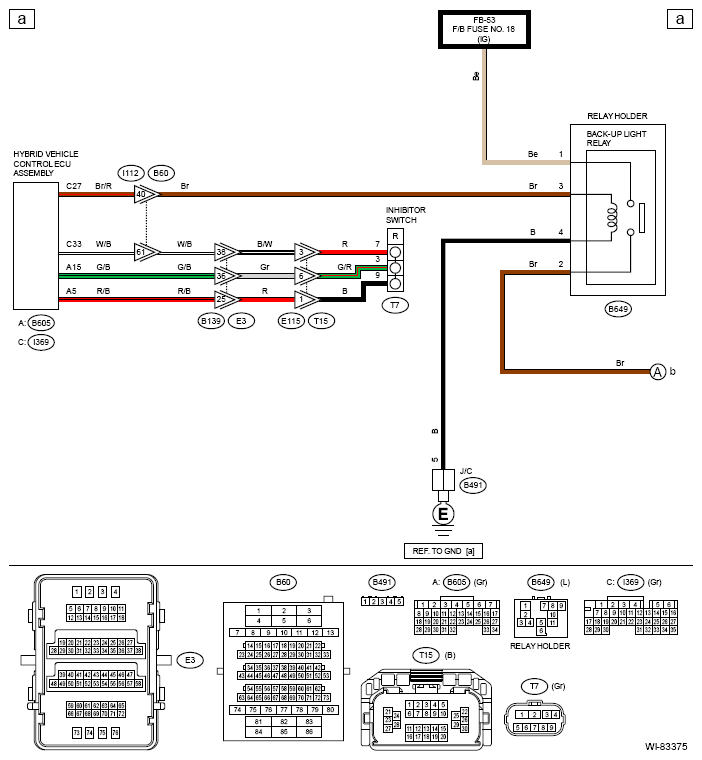

G13236482Courtesy of SUBARU OF AMERICA, INC.

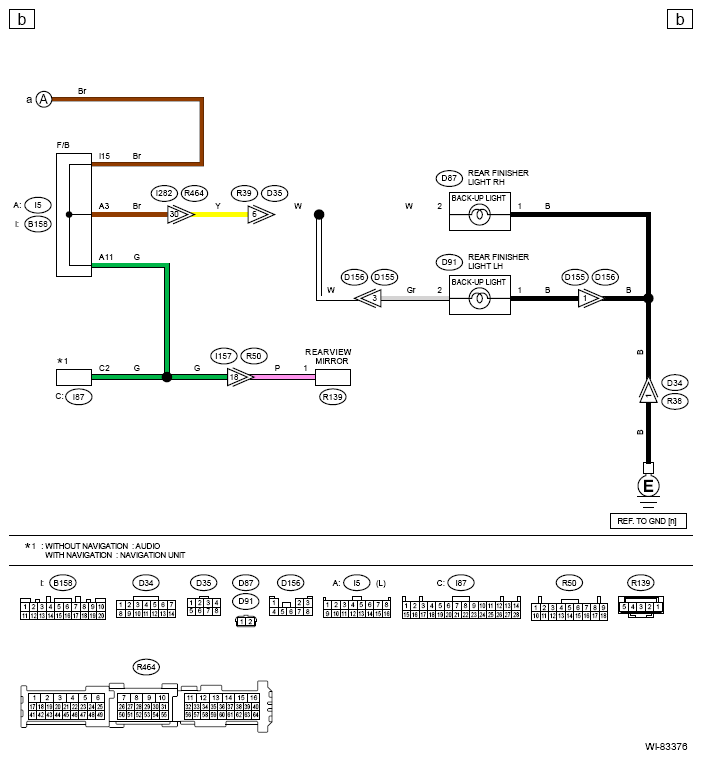

G13236483Courtesy of SUBARU OF AMERICA, INC.
G13236484Courtesy of SUBARU OF AMERICA, INC.
