Airbag System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

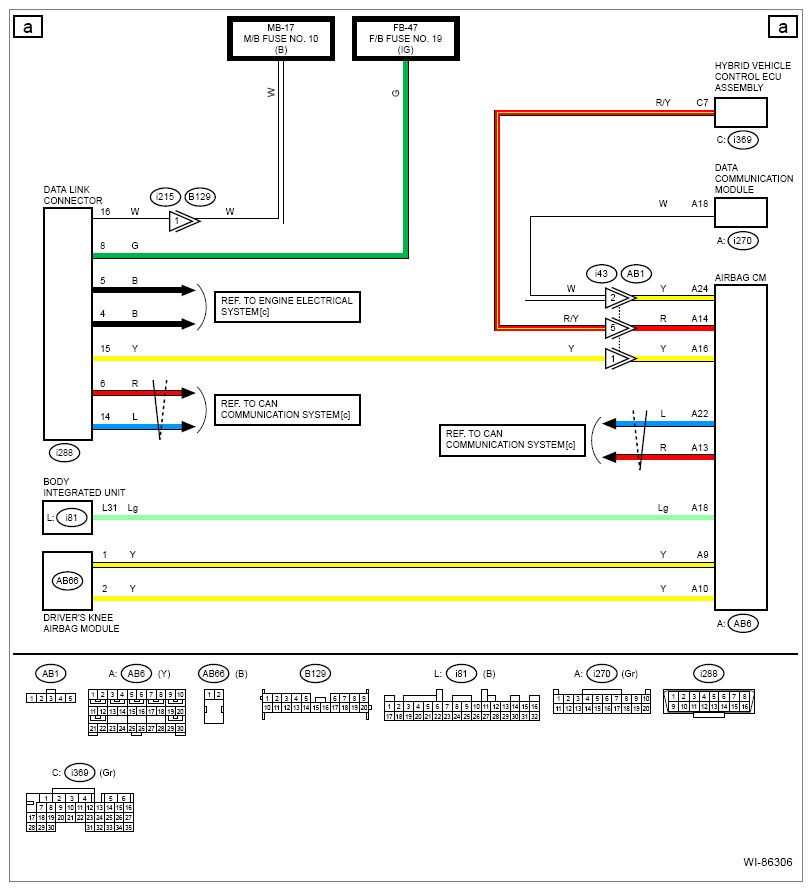

G13614310Courtesy of SUBARU OF AMERICA, INC.

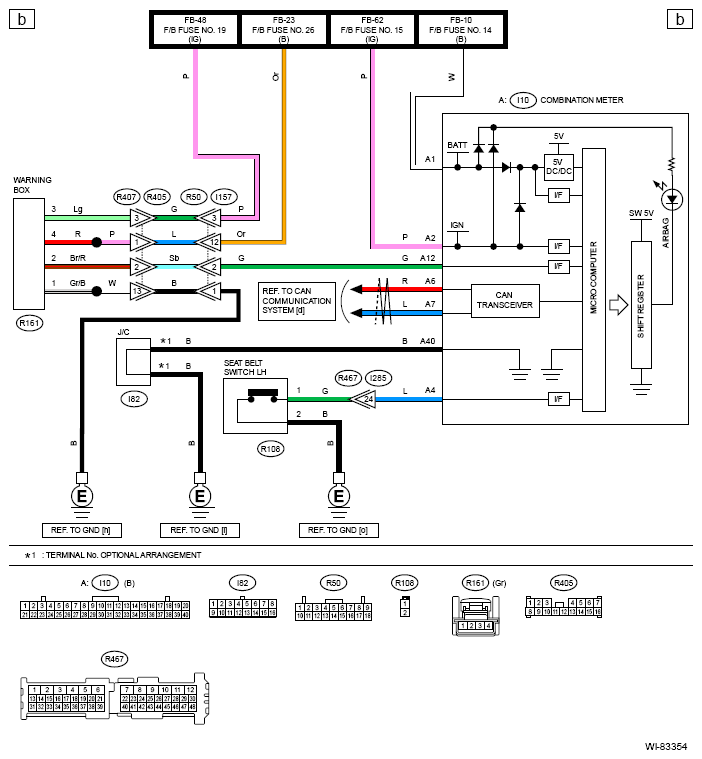

G13236459Courtesy of SUBARU OF AMERICA, INC.

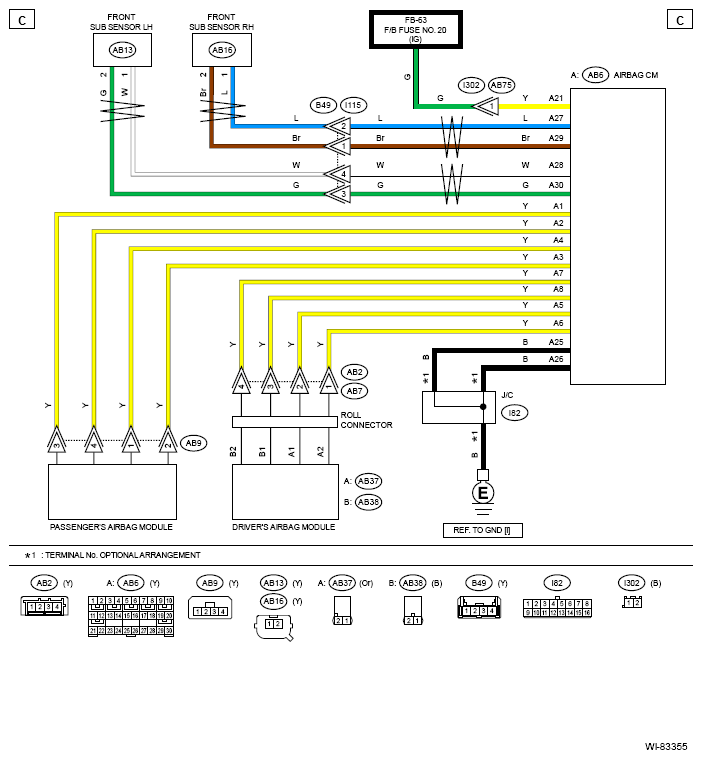

G13236460Courtesy of SUBARU OF AMERICA, INC.

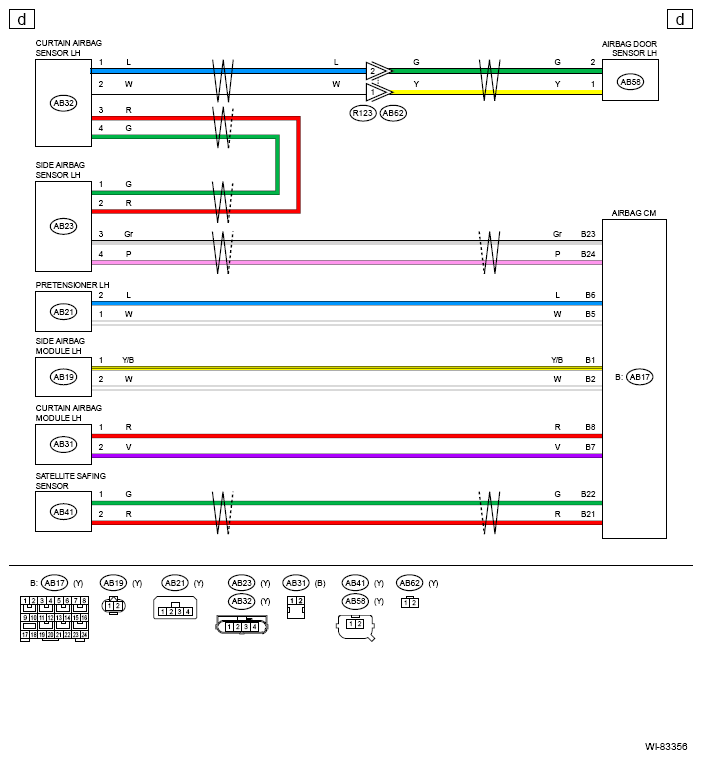

G13236461Courtesy of SUBARU OF AMERICA, INC.

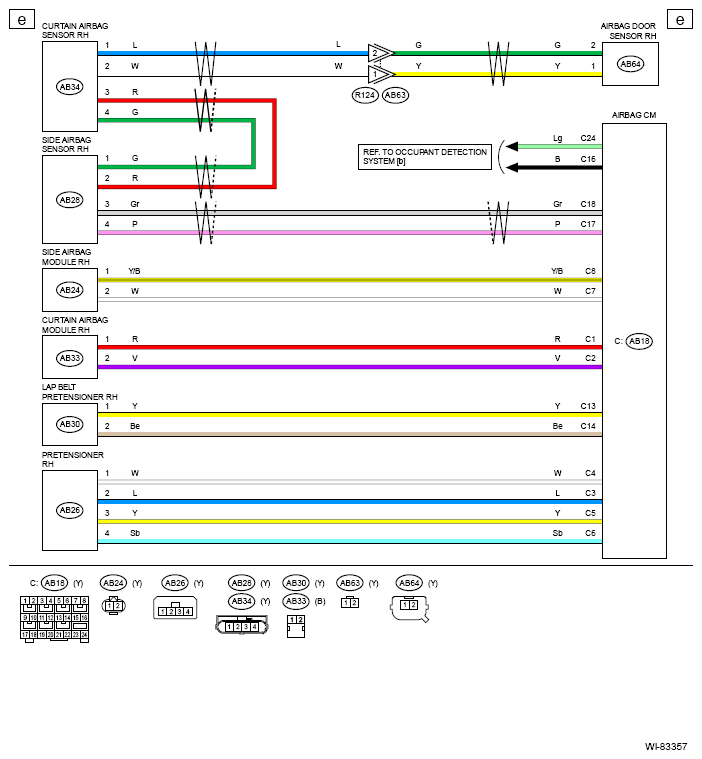

G13236462Courtesy of SUBARU OF AMERICA, INC.
