Section 4 (OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (HEV))
>>
AWD Control System
>>
Wiring Diagram

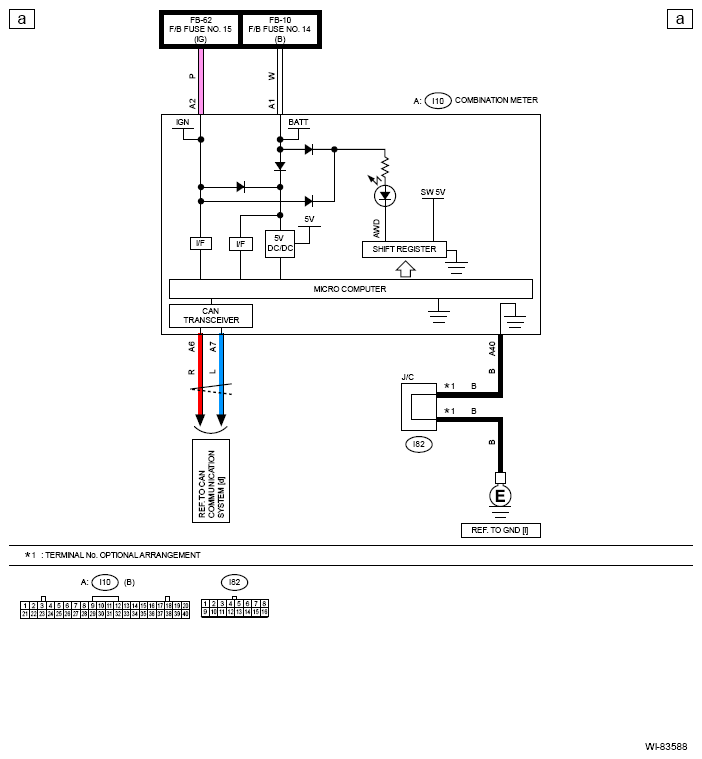

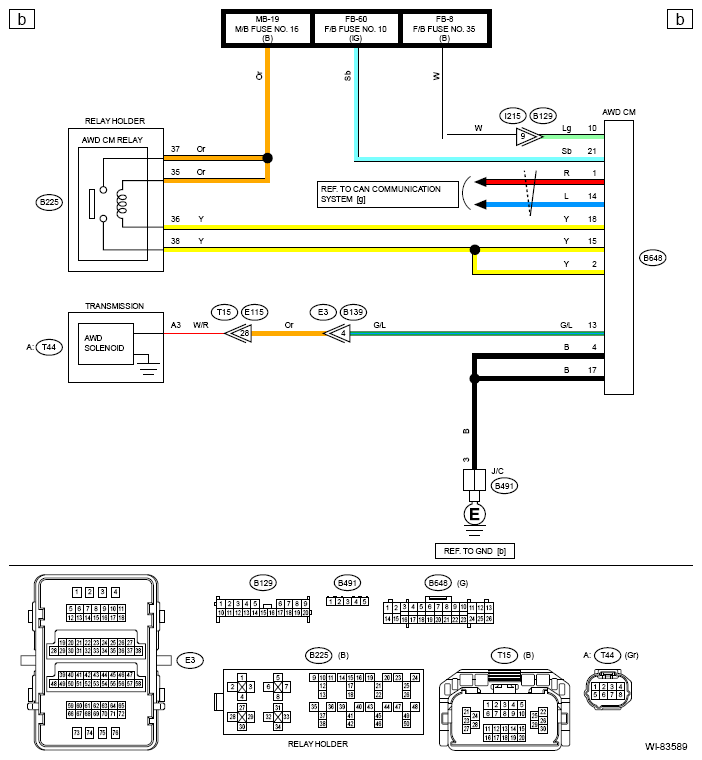

AWD Control System: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
