Diagnostic Method
WARNING: This page is about a different variant/trim than selected.

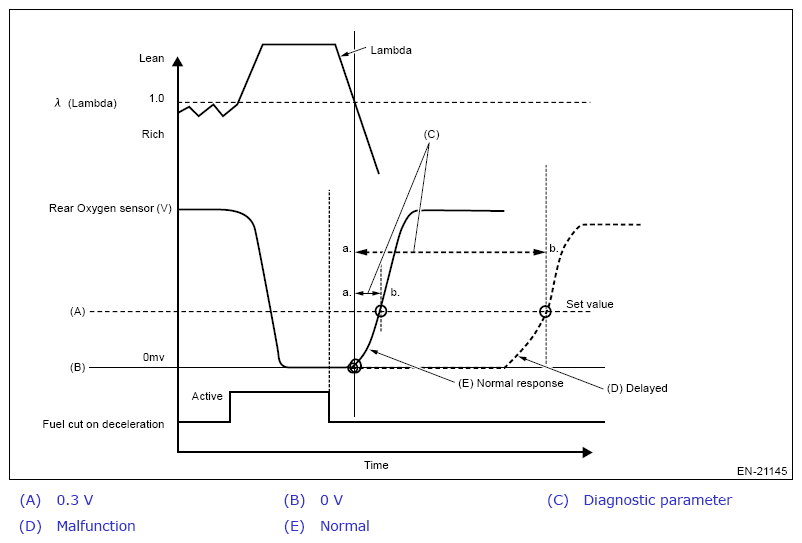

Detect a malfunction by measuring the time from fuel cut completed until the rear oxygen sensor voltage begins to rise.
Judge as NG when the following conditions are established.
JUDGMENT VALUE SPECIFICATION
| Malfunction Criteria | Threshold Value |
|---|---|
| Output voltage value of rear oxygen sensor | Less than 0.2 V |
| Elapsed time | More than value of Map |
MAP SPECIFICATION
| Amount of intake air (g/s (oz/s)) | 15.00 (0.53) | 17.50 (0.62) | 18.00 (0.63) |
|---|---|---|---|
| Elapsed time (ms) | 3520 | 3008 | 3008 |
Time needed for diagnosis: Less than 1 s
Malfunction indicator light illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.
