Home >> Subaru >> 2020 >> Crosstrek Base, Automatic CVT Trans >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 25 (HVAC System (Diagnostics) (HEV)) >> Electrical Component Location >> Location

Section 25 (HVAC System (Diagnostics) (HEV)): Electrical Component Location: Location

WARNING: This page is about a different variant/trim than selected.

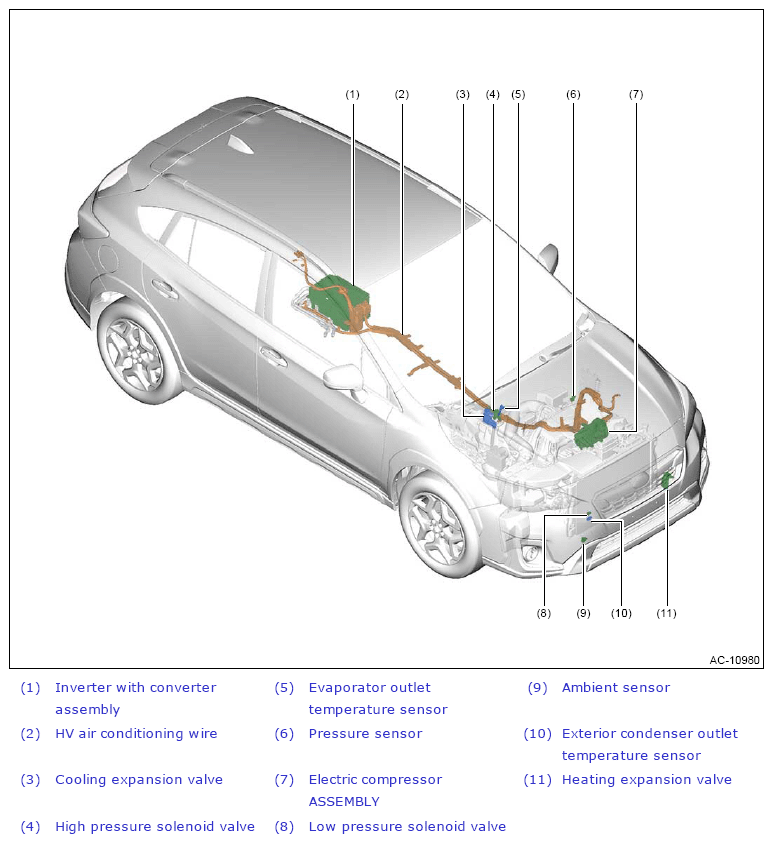

G13616413Courtesy of SUBARU OF AMERICA, INC.

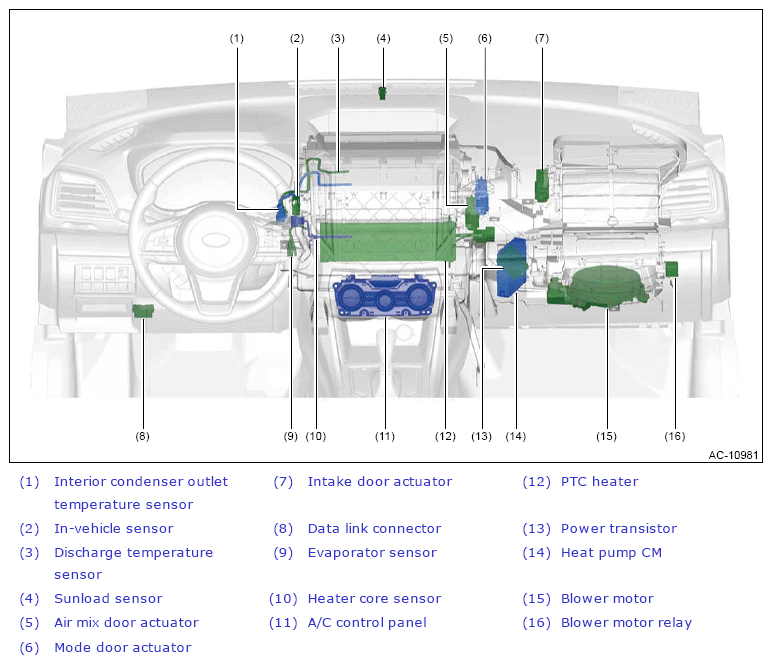

G13616414Courtesy of SUBARU OF AMERICA, INC.
