Nothing Is Displayed On The Screen Or Indicators Do Not Illuminate

WARNING: This page is about a different variant/trim than selected.

Trouble symptom:

When the AUTO button is turned to ON with IGN ON, nothing is displayed on the screen or indicators do not illuminate.

Trouble causes:

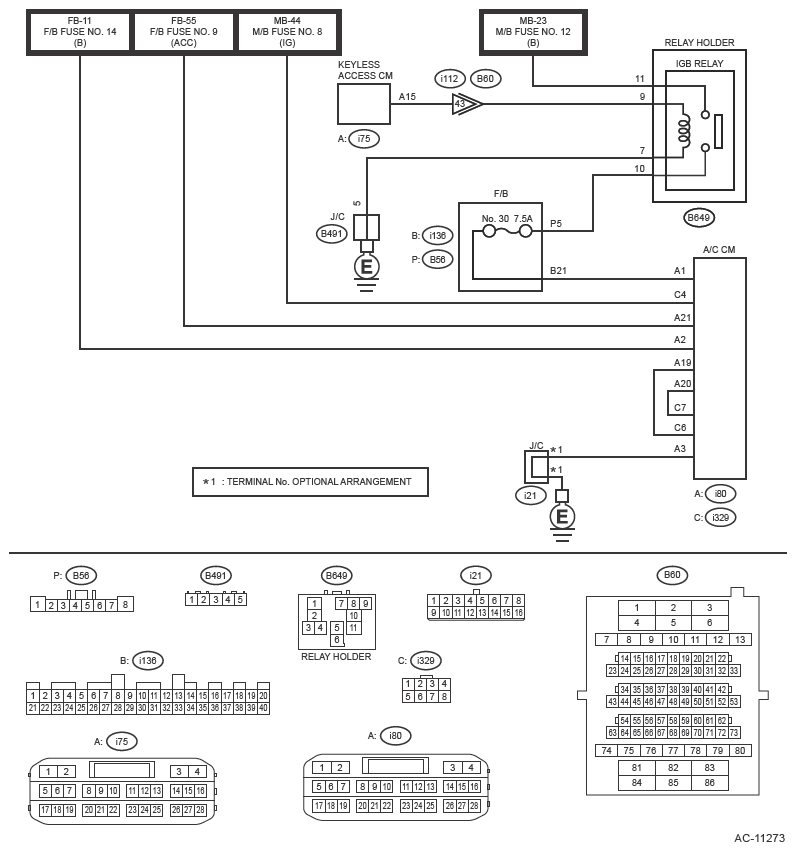

Wiring diagram:

Air conditioning system Ref. to WIRING SYSTEM (CROSSTREK MODEL (HEV))>CONDITIONING SYSTEM>WIRING DIAGRAM .

G13616461Courtesy of SUBARU OF AMERICA, INC.
CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to AIR CONDITIONERS DIAGNOSTICS) (HEV)>GENERAL DESCRIPTION>CAUTION .
G13616462Courtesy of SUBARU OF AMERICA, INC.
G13616463Courtesy of SUBARU OF AMERICA, INC.

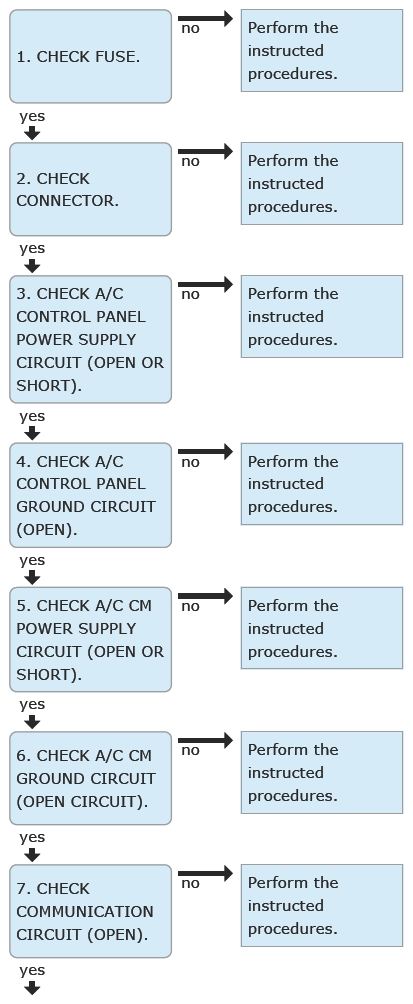

  1. CHECK FUSE  .
    1. Turn the ignition switch to OFF.
    2. Remove the fuses No. 8 and 14 from fuse & relay box.
    3. Check the condition of fuse.

    Is the check result OK?

    Yes  : Go to  2.

    No  : Replace the fuse. If the replaced fuse blows out easily, repair the ground short circuit in harness between the fuse - A/C control panel.

  2. CHECK CONNECTOR  .

    Check poor contact of A/C control panel connector, A/C Control Module connector and coupling connector.

    Is the check result OK?

    Yes  : Go to  3.

    No  : Repair the connector.

  3. CHECK A/C CONTROL PANEL POWER SUPPLY CIRCUIT (OPEN OR SHORT)  .
    1. Remove the A/C control panel. Ref. to AIR CONDITIONER (HEV)>CONTROL PANEL .
    2. Disconnect the A/C control panel connector.
    3. Turn the ignition switch to ON.
    4. Measure the voltage between A/C control panel connector terminal and chassis ground.

      Connector & terminal

      (i80) No. 2 (+) - Chassis ground (-):

      (i329) No. 4 (+) - Chassis ground (-):

    Is the voltage 10 V or more?

    Yes  : Go to  4.

    No  : Check for open or short circuit in the harness between A/C control panel and fuse.

  4. CHECK A/C CONTROL PANEL GROUND CIRCUIT (OPEN)  .
    1. Turn the ignition switch to OFF.
    2. Measure the resistance of harness between A/C control panel and chassis ground.

      Connector & terminal

      (i80) No. 3 - Chassis ground:

    Is the resistance less than 10 Ω?

    Yes  : Go to  5.

    No  : Repair the harness for ground line.

  5. CHECK A/C CONTROL MODULE POWER SUPPLY CIRCUIT (OPEN OR SHORT)  .
    1. Install the A/C control panel. Ref. to AIR CONDITIONER (HEV)>CONTROL PANEL .
    2. Disconnect the A/C Control Module connector.
    3. Turn the ignition switch to ON.
    4. Measure the voltage between A/C Control Module connector terminal and chassis ground.

      Connector & terminal

      (i80) No. 2 (+) - Chassis ground (-):

      (i80) No. 1 (+) - Chassis ground (-):

      (i80) No. 21 (+) - Chassis ground (-):

    Is the voltage 10 V or more?

    Yes  : Go to  6.

    No  : Check for open or short circuit in the harness between A/C Control Module and fuse.

  6. CHECK A/C CONTROL MODULE GROUND CIRCUIT (OPEN CIRCUIT)  .
    1. Turn the ignition switch to OFF.
    2. Measure the resistance of harness between A/C Control Module and chassis ground.

      Connector & terminal

      (i80) No. 3 - Chassis ground:

    Is the resistance less than 10 Ω?

    Yes  : Go to  7.

    No  : Repair the harness for ground line.

  7. CHECK COMMUNICATION CIRCUIT (OPEN)  .

    Measure the resistance of harness between A/C control panel and A/C Control Module.

    Connector & terminal

    (i329) No. 6 - (i80) No. 19:

    (i329) No. 7 - (i80) No. 20:

    Is the resistance less than 10 Ω?

    Yes  : Go to  8.

    No  : Repair or replace the open circuit of harness.

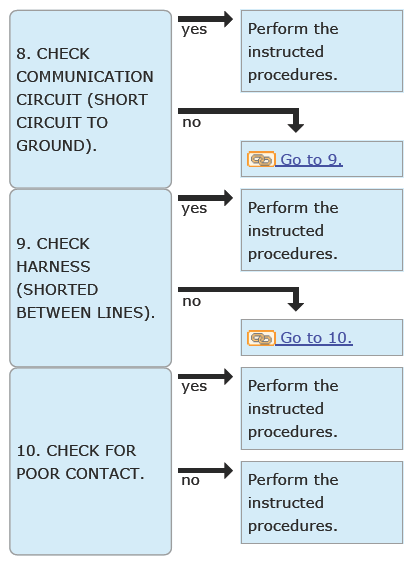

  8. CHECK COMMUNICATION CIRCUIT (SHORT CIRCUIT TO GROUND)  .

    Using a tester, measure the harness resistance between communication circuit harness and chassis ground.

    Connector & terminal

    (i80) No. 19 - Chassis ground:

    (i80) No. 20 - Chassis ground:

    Is the resistance less than 10 Ω?

    Yes  : Repair or replace the short circuit of the harness.

    No  : Go to  9.

  9. CHECK HARNESS (SHORTED BETWEEN LINES)  .

    Using the tester, measure the resistance between terminals.

    Connector & terminal

    (i80) No. 19 - (i80) No. 20:

    Is the resistance less than 10 Ω?

    Yes  : Repair or replace the short circuit of the harness.

    No  : Go to  10.

  10. CHECK FOR POOR CONTACT  .

    Check poor contact of A/C control panel connector.

    Is the check result OK?

    Yes  : Replace the A/C control panel. Ref. to AIR CONDITIONER (HEV)>CONTROL PANEL .

    No  : Repair the connector.
