Heat Pump Control Module
WARNING: This page is about a different variant/trim than selected.

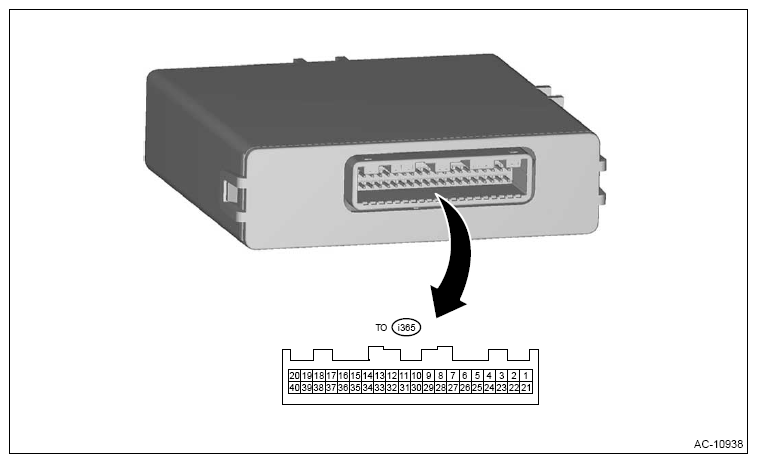

| Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|
| (i365) No. 1 | - | - | - |
| (i365) No. 2 (+) ←→ Chassis ground (-) | High pressure solenoid valve drive | Ignition switch: ON High pressure solenoid valve: ON |
Closed: Battery voltage Open: 0.7 V or less |
| (i365) No. 3 | - | - | - |
| (i365) No. 4 | - | - | - |
| (i365) No. 5 | - | - | - |
| (i365) No. 6 (+) ←→ Chassis ground (-) | Discharge temperature sensor (interior condenser IN side) | Ignition switch: ON | 0.2 - 4.8 V |
| (i365) No. 7 (+) ←→ Chassis ground (-) | Interior condenser outlet temperature sensor | Ignition switch: ON | 0.2 - 4.8 V |
| (i365) No. 8 (+) ←→ Chassis ground (-) | Exterior condenser outlet temperature sensor | Ignition switch: ON | 0.2 - 4.8 V |
| (i365) No. 9 (+) ←→ Chassis ground (-) | Evaporator outlet temperature sensor | Ignition switch: ON | 0.2 - 4.8 V |
| (i365) No. 10 (+) ←→t Chassis ground (-) | GND2 | Always | Less than 0.5 V |
| (i365) No. 11 | LIN communication (A/C control panel) | Cannot be measured (digital signal) | - |
| (i365) No. 12 | - | - | - |
| (i365) No. 13 | - | - | - |
| (i365) No. 14 (+) ←→ Chassis ground (-) | GND | Always | Less than 0.5 V |
| (i365) No. 15 | Heating expansion valve A phase Ch2 | Cannot be measured (digital signal) | - |
| (i365) No. 16 | Heating expansion valve A phase Ch1 | Cannot be measured (digital signal) | - |
| (i365) No. 17 | - | - | - |
| (i365) No. 18 | Cooling expansion valve A phase Ch2 | Cannot be measured (digital signal) | - |
| (i365) No. 19 | Cooling expansion valve A phase Ch1 | Cannot be measured (digital signal) | - |
| (i365) No. 20 (+) ←→ Chassis ground (-) | Ignition power supply | Ignition switch: ON | Battery voltage |
| (i365) No. 21 | - | - | - |
| (i365) No. 22 | - | - | - |
| (i365) No. 23 (+) ←→ Chassis ground (-) | Low pressure solenoid valve drive | Ignition switch: ON Low pressure solenoid valve: ON |
Closed: 12 V Open: 0 V |
| (i365) No. 24 | - | - | - |
| (i365) No. 25 | - | - | - |
| (i365) No. 26 | - | - | - |
| (i365) No. 27 | - | - | - |
| (i365) No. 28 | - | - | - |
| (i365) No. 29 | - | - | - |
| (i365) No. 30 (+) ←→ Chassis ground (-) | Sensor GND2 | Always | Less than 0.5 V |
| (i365) No. 31 | - | - | - |
| (i365) No. 32 | - | - | - |
| (i365) No. 33 | - | - | - |
| (i365) No. 34 (+) ←→ Chassis ground (-) | Sensor GND | Always | Less than 0.5 V |
| (i365) No. 35 | Heating expansion valve B phase Ch1 | Cannot be measured (digital signal) | - |
| (i365) No. 36 | Heating expansion valve B phase Ch2 | Cannot be measured (digital signal) | - |
| (i365) No. 37 | - | - | - |
| (i365) No. 38 | Cooling expansion valve B phase Ch1 | Cannot be measured (digital signal) | - |
| (i365) No. 39 | Cooling expansion valve B phase Ch2 | Cannot be measured (digital signal) | - |
| (i365) No. 40 (+) ←→ Chassis ground (-) | Battery power supply | Always | Battery voltage |
