Purge Control Solenoid Valve: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G13230667Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13230668Courtesy of SUBARU OF AMERICA, INC.

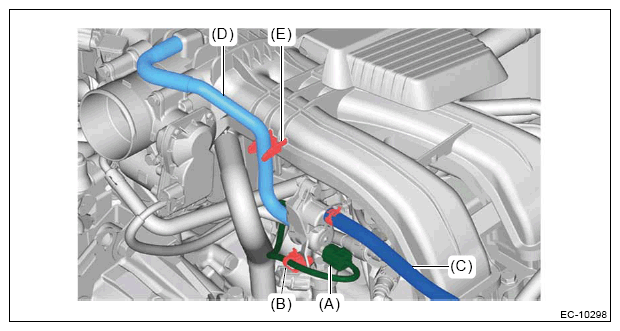

  4. Disconnect the connector (A), and remove the clip (B) securing the engine wiring harness.
  5. Disconnect the purge hose (C).
  6. Disconnect the vacuum hose (D) from the intake manifold assembly, and remove the vacuum hose (D) from the clip (E).
    G13231116Courtesy of SUBARU OF AMERICA, INC.

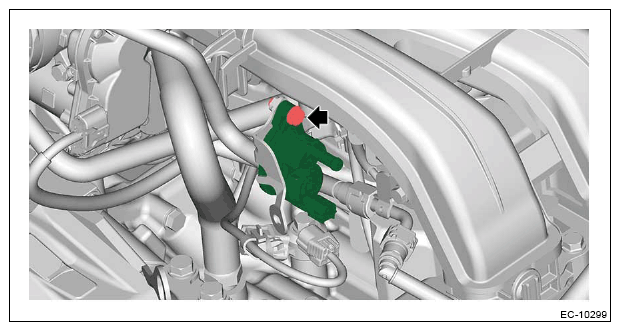

  7. Remove the purge control solenoid valve.
    G13231117Courtesy of SUBARU OF AMERICA, INC.

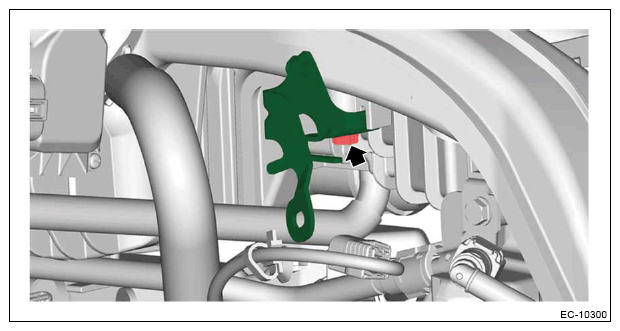

  8. Remove the purge control solenoid valve bracket.
    G13231118Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the vacuum hose from the purge control solenoid valve.
