PCV Hose No. 2

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the electric compressor assembly. Ref. to AIR CONDITIONER (HEV)>COMPRESSOR>REMOVAL .

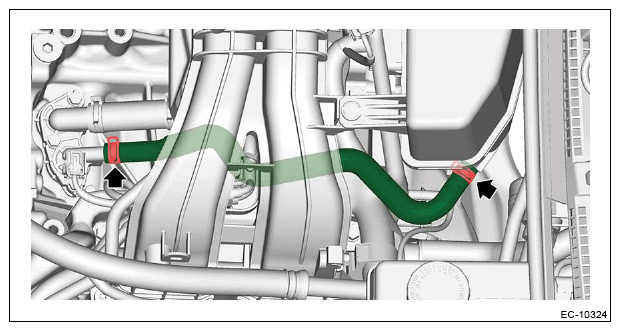

  3. Remove the PCV hose No. 2 from the PCV connector and the air intake boot.
G13231178Courtesy of SUBARU OF AMERICA, INC.
