PCV Hose No. 1

WARNING: This page is about a different variant/trim than selected.
CAUTION: Do not remove except when the PCV hose is broken.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G13230667Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13230668Courtesy of SUBARU OF AMERICA, INC.

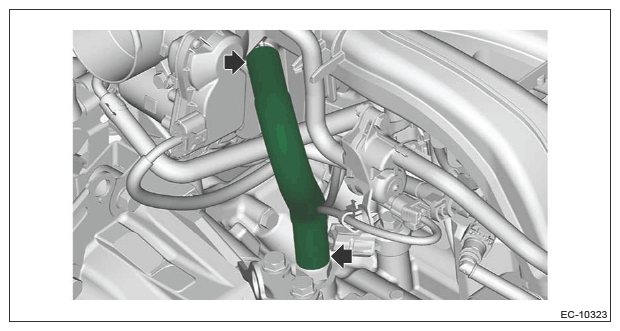

  4. Remove the PCV hose No. 1 from the intake manifold assembly and the PCV valve.
G13231177Courtesy of SUBARU OF AMERICA, INC.
