PCV Connector: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant (engine side). Ref. to COOLING (H4DO (HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT>ENGINE SIDE .
  3. Remove the electric compressor assembly. Ref. to AIR CONDITIONER (HEV)>COMPRESSOR>REMOVAL .

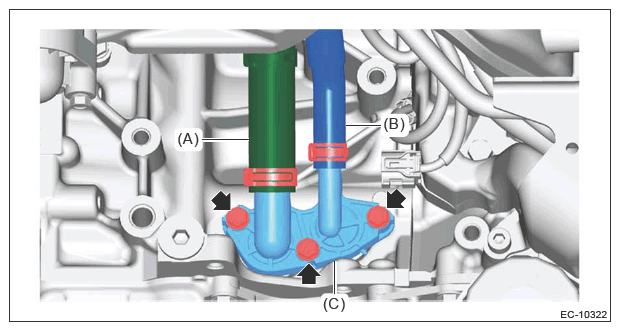

  4. Disconnect the water hose (A) and PCV hose No. 2 (B), and remove the PCV connector (C).
G13231174Courtesy of SUBARU OF AMERICA, INC.
