Electric Vent Solenoid Valve Assembly: Installation

WARNING: This page is about a different variant/trim than selected.

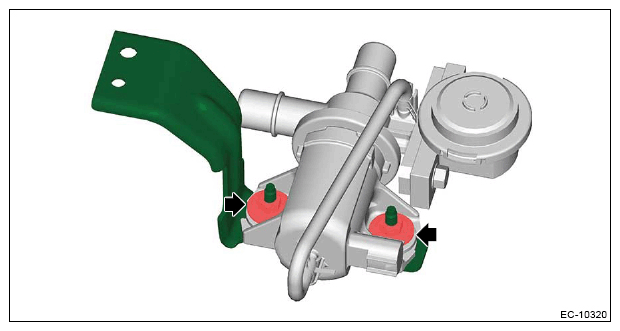

Install the bracket to the electric vent solenoid valve assembly.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

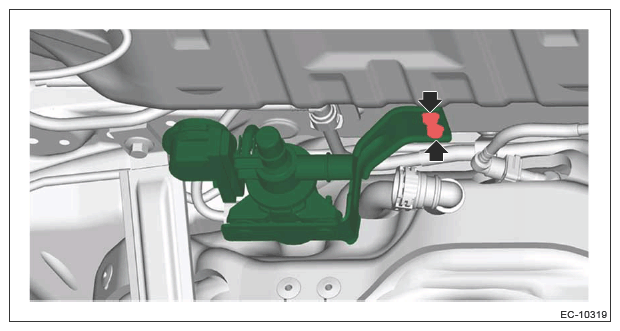

Install the electric vent solenoid valve assembly.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

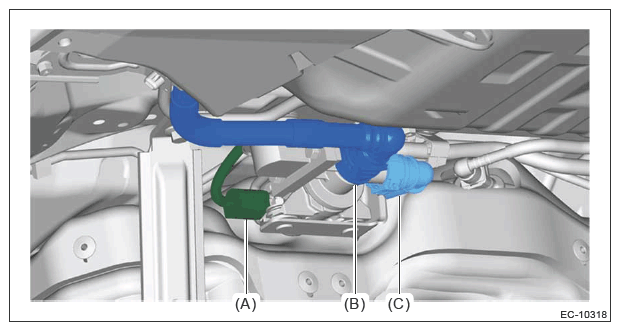

Connect the vent tube No. 2 (B) and vent tube No. 3 (C). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE H) .
Connect the connector (A).

Courtesy of SUBARU OF AMERICA, INC.
Connect the battery ground terminal. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
