Check Electric Vent Solenoid Valve Area

WARNING: This page is about a different variant/trim than selected.
  1. Check the electric vent solenoid valve for deformation, cracks or other damages.
  2. Check resistance between the electric vent solenoid valve terminals.
    G11252899Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Standard
    1 and 2 Approx. 34 Ω (at 20°C (68°F))

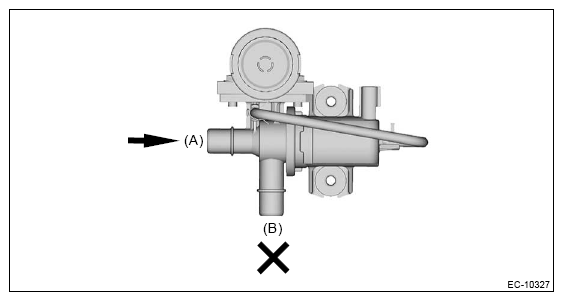

  3. Check that air does not come out from (B) when air is blown into (A).
    G13231171Courtesy of SUBARU OF AMERICA, INC.

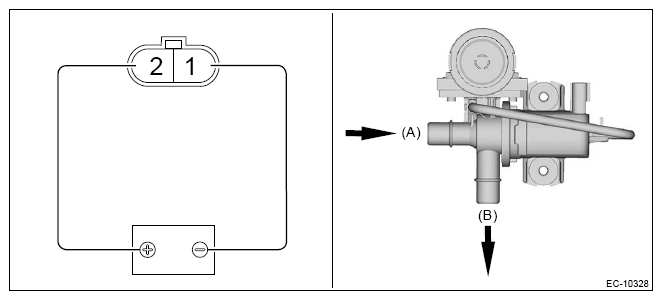

  4. Connect the battery positive terminal to the terminal No. 1 and the battery negative terminal to the terminal No. 2. Check that air is discharged from (B), when supplying air to (A).
G13231172Courtesy of SUBARU OF AMERICA, INC.
