EGR Temperature Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
- Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE DUCT>REMOVAL .

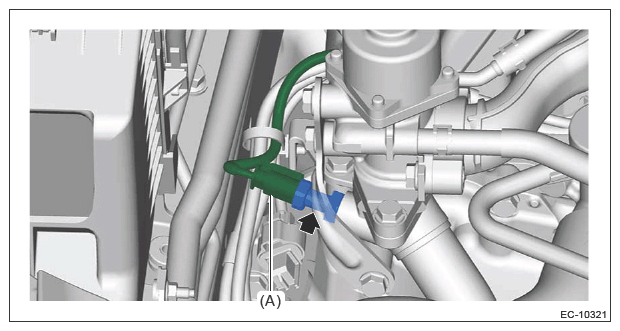

- Disconnect the connector (A) and remove the EGR temperature sensor.
