EGR Control Valve: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant (engine side). Ref. to COOLING (H4DO (HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT>ENGINE SIDE .
  3. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE DUCT>REMOVAL .

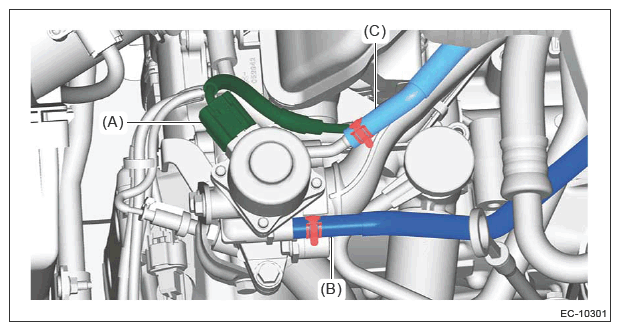

  4. Disconnect the connector (A).
  5. Disconnect the preheater hose (B) and preheater hose (C).
    G13231128Courtesy of SUBARU OF AMERICA, INC.

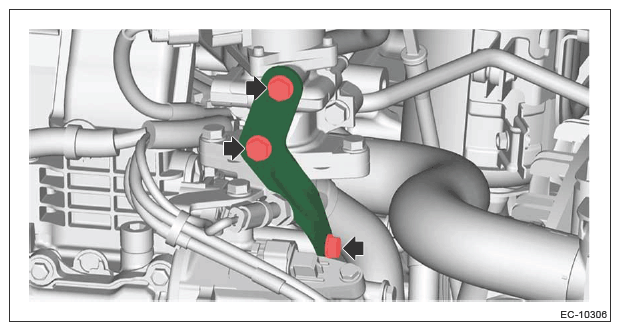

  6. Remove the bracket.
    G13231129Courtesy of SUBARU OF AMERICA, INC.

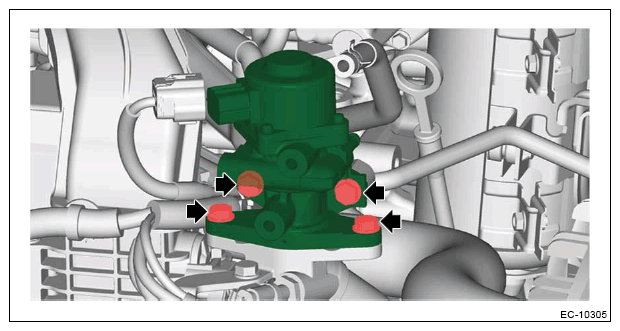

  7. Remove the EGR control valve.
G13231130Courtesy of SUBARU OF AMERICA, INC.
