Outline Of Diagnosis
WARNING: This page is about a different variant/trim than selected.

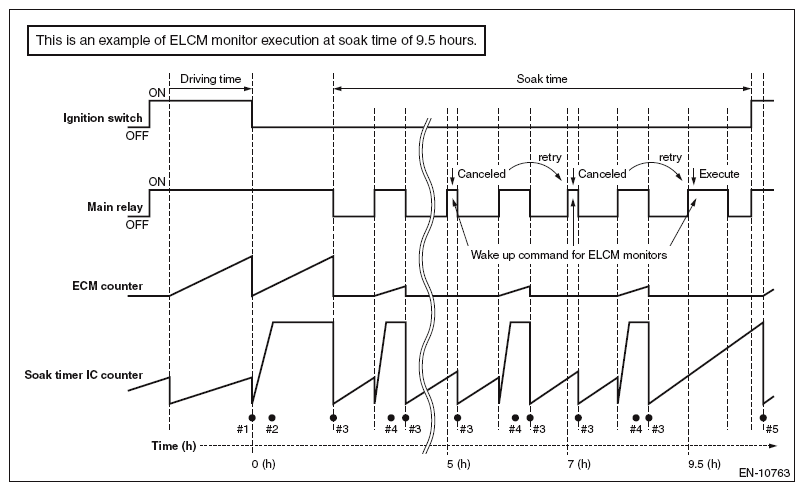

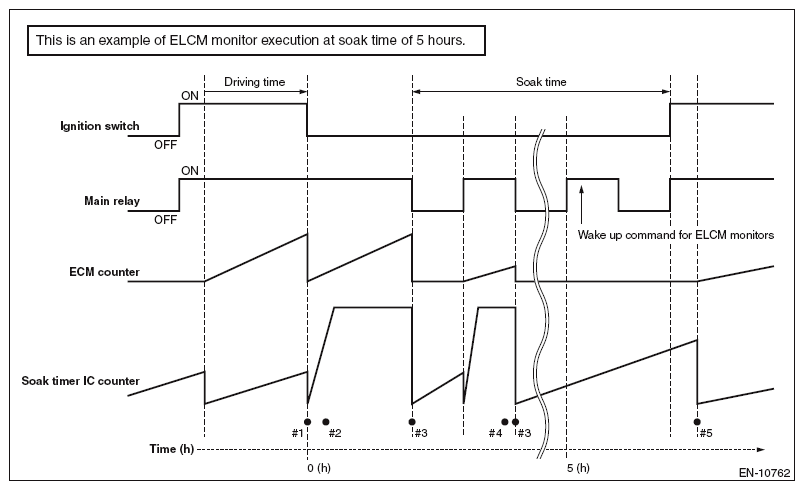

Detect malfunction of soaking timer IC by the five diagnoses below.
| Monitor Number | Explanation | Time required for diagnosis |
|---|---|---|
| Monitor #1 <Timer diagnosis> | Perform diagnosis of the soaking timer IC accuracy | 128 ms |
| Monitor #2 <Full count diagnosis> | Perform diagnosis of the soaking timer IC counter function | 128 ms |
| Monitor #3 <Soaking timer IC setting diagnosis> | Perform diagnosis of communication between ECM and soaking timer IC | 128 ms |
| Monitor #4 <Timer diagnosis (during soaking)> | Perform diagnosis of the soaking timer IC accuracy during soaking | None |
| Monitor #5 <Wake-up diagnosis> | Perform diagnosis of wake-up function | None |
