DTC P2195: A/F/O2 Sensor Signal Biased/Stuck Lean Bank 1 Sensor 1: Notes

WARNING: This page is about a different variant/trim than selected.

1. -

DTC detecting condition:

Detected when two consecutive driving cycles with fault occur.

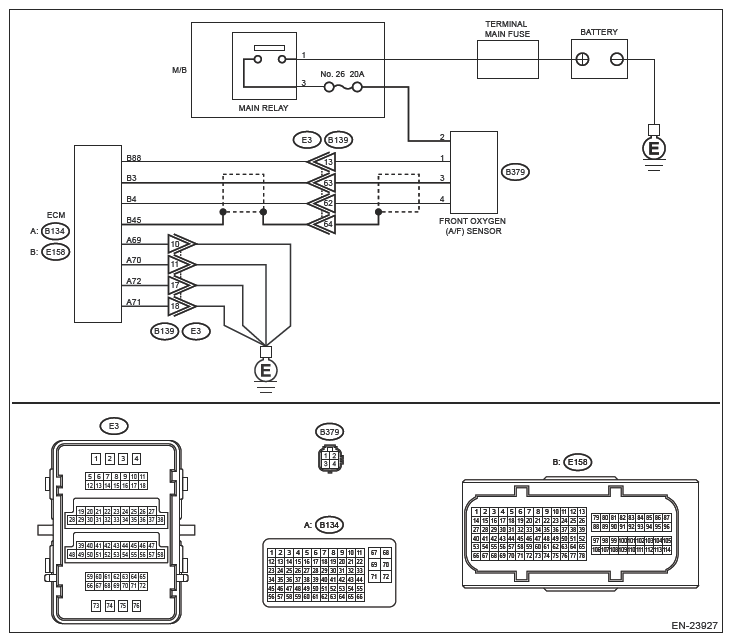

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM (CROSSTREK MODEL (HEV))>ENGINE ELECTRICAL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DO (HEV))>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DO (HEV))>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .

Courtesy of SUBARU OF AMERICA, INC.

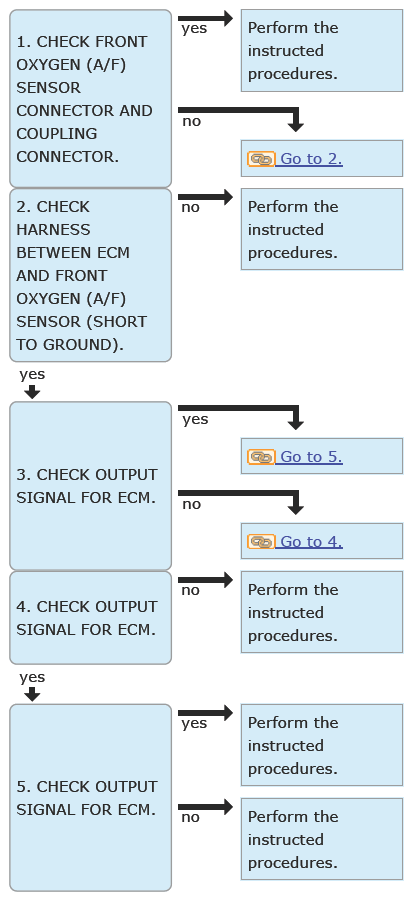

CHECK FRONT OXYGEN (A/F) SENSOR CONNECTOR AND COUPLING CONNECTOR .
Check the front oxygen (A/F) sensor connector and coupling connector.

Has water entered the connector?

Yes : Completely remove any water inside.

No : Go to 2.
CHECK HARNESS BETWEEN ECM AND FRONT OXYGEN (A/F) SENSOR (SHORT TO GROUND) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Measure the resistance between ECM connector and chassis ground.
  Connector & terminal

  (E158) No. 3 - Chassis ground:

  (E158) No. 4 - Chassis ground:
Is the resistance 1 MΩ or more?

Yes : Go to 3.

No : Repair the short circuit to ground in harness between ECM connector and front oxygen (A/F) sensor connector.
CHECK OUTPUT SIGNAL FOR ECM .
1. Connect the connector to ECM.
2. Turn the ignition switch to ON.
3. Measure the voltage between ECM connector and chassis ground.
  Connector & terminal

  (E158) No. 3 (+) - Chassis ground (-):
Is the voltage 4.5 V or more?

Yes : Go to 5.

No : Go to 4.
CHECK OUTPUT SIGNAL FOR ECM .
Measure the voltage between ECM connector and chassis ground.

Connector & terminal

(E158) No. 4 (+) - Chassis ground (-):

Is the voltage 4.95 V or more?

Yes : Go to 5.

No : Replace the front oxygen (A/F) sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>FRONT OXYGEN (A/F) SENSOR .
CHECK OUTPUT SIGNAL FOR ECM .
Measure the voltage between ECM connector and chassis ground.

Connector & terminal

(E158) No. 3 (+) - Chassis ground (-):

(E158) No. 4 (+) - Chassis ground (-):

Is the voltage 8 V or more?

Yes : Repair the short circuit to power in the harness between ECM connector and front oxygen (A/F) sensor connector. After repair, replace the ECM. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>ENGINE CONTROL MODULE (ECM) .

No : Repair the poor contact of ECM connector.
