DTC P2011: TGV Control Circuit/Open Bank 2: Notes

WARNING: This page is about a different variant/trim than selected.
  1. -

    DTC detecting condition:

    Immediately at fault recognition

    Wiring diagram:

    Engine Electrical System Ref. to WIRING SYSTEM (CROSSTREK MODEL (HEV))>ENGINE ELECTRICAL SYSTEM .

    G13228028Courtesy of SUBARU OF AMERICA, INC.
CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DO (HEV))>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .
NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DO (HEV))>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .

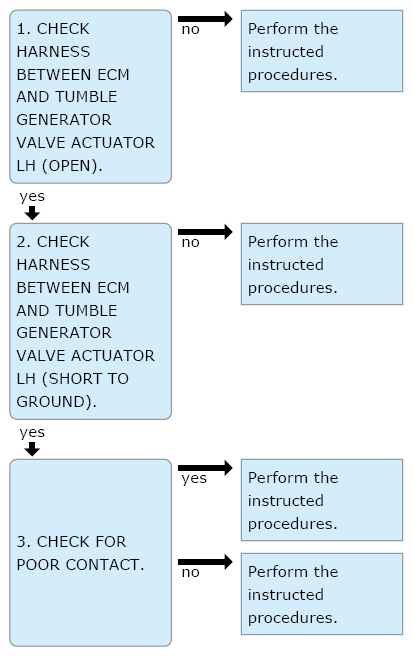

G13615483Courtesy of SUBARU OF AMERICA, INC.
  1. CHECK HARNESS BETWEEN ECM AND TUMBLE GENERATOR VALVE ACTUATOR LH (OPEN)  .
    1. Turn the ignition switch to OFF.
    2. Disconnect the connector from ECM.
    3. Disconnect the connector from tumble generator valve actuator LH.
    4. Measure the resistance of harness between ECM connector and tumble generator valve actuator LH connector.

      Connector & terminal

      (E158) No. 110 - (E51) No. 5:

      (E158) No. 101 - (E51) No. 4:

    Is the resistance less than 1 Ω?

    Yes:  Go to  2.

    No:  Repair the open circuit in harness between ECM connector and tumble generator valve actuator LH connector.

  2. CHECK HARNESS BETWEEN ECM AND TUMBLE GENERATOR VALVE ACTUATOR LH (SHORT TO GROUND)  .

    Measure the resistance between the ECM connector and engine ground.

    Connector & terminal

    (E158) No. 110 - Engine ground:

    (E158) No. 101 - Engine ground:

    Is the resistance 1 MΩ or more?

    Yes:  Go to  3.

    No:  Repair the short circuit to ground in harness between ECM connector and tumble generator valve actuator LH connector.

  3. CHECK FOR POOR CONTACT  .

    Check for poor contact in the tumble generator valve actuator LH connector.

    Is there poor contact of the tumble generator valve actuator LH connector?

    Yes:  Repair the poor contact of tumble generator valve actuator LH connector.

    No:  Replace the tumble generator valve actuator LH. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>TUMBLE GENERATOR VALVE ACTUATOR .

    NOTE: The tumble generator valve actuator cannot be disassembled.
