Clutch Switch: Adjustment
WARNING: This page is about a different variant/trim than selected.
- Loosen the lock nut of the clutch start switch.
- Fully depress the clutch pedal and hold it.

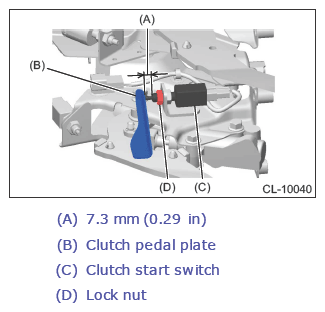

- Adjust the gap (A) between the clutch pedal plate and the clutch start switch to be 7.3 mm (0.29 in).
 Courtesy of SUBARU OF AMERICA, INC.
|
- Tighten the lock nut.
Tightening torque:
8 N.m (0.8 kgf-m, 5.9 ft-lb)
