Battery, Slow Blow Fuse

WARNING: This page is about a different variant/trim than selected.

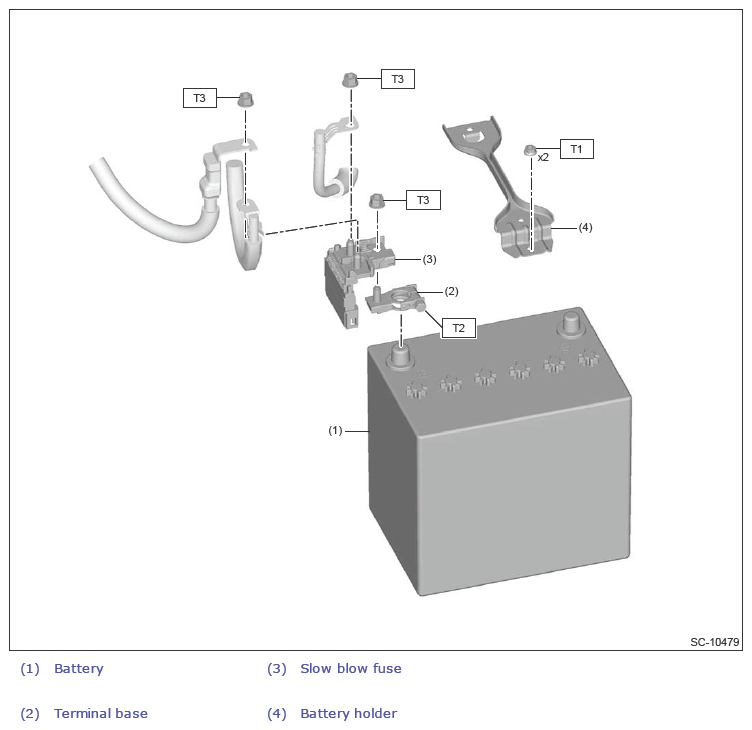

Fig 1: Battery, Slow Blow Fuse Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.5 (0.4, 2.6) T2: 6 (0.6, 4.4)

T3: 7.5 (0.8, 5.5)
