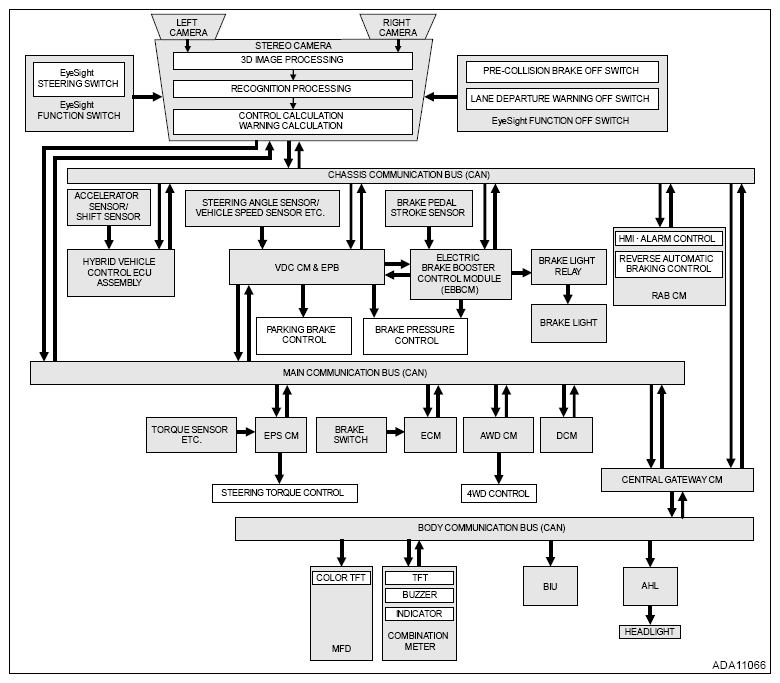

System Block Diagram
WARNING: This page is about a different variant/trim than selected.
Main signals used between stereo camera and relevant Control Module
- Due to the presence of the RAB function, the connection between the stereo camera and the Reverse Automatic Braking Control Module are made via chassis communication BUS.
- The connection between the combination meter and the MFD are made from central gateway Control Module via body communication BUS.
