Load On The Roof
WARNING: This page is about a different variant/trim than selected.
Check that load on the roof is not sticking out to the front of the stereo camera.
Standard:

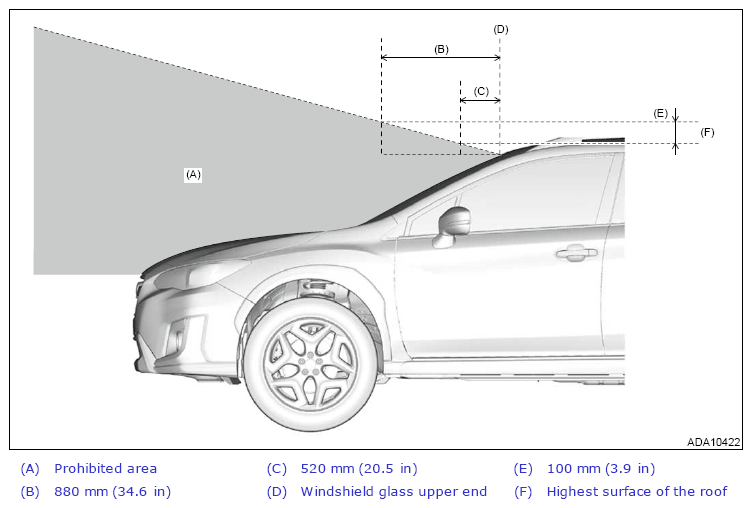

The load on the roof is placed outside the prohibited area (A) shown in the figure below.
 Courtesy of SUBARU OF AMERICA, INC.
|
