Section 19 (SUBARU Eyesight System (Driver Assist) (Diagnostics) (HEV)): Electrical Component Location: Location

WARNING: This page is about a different variant/trim than selected.

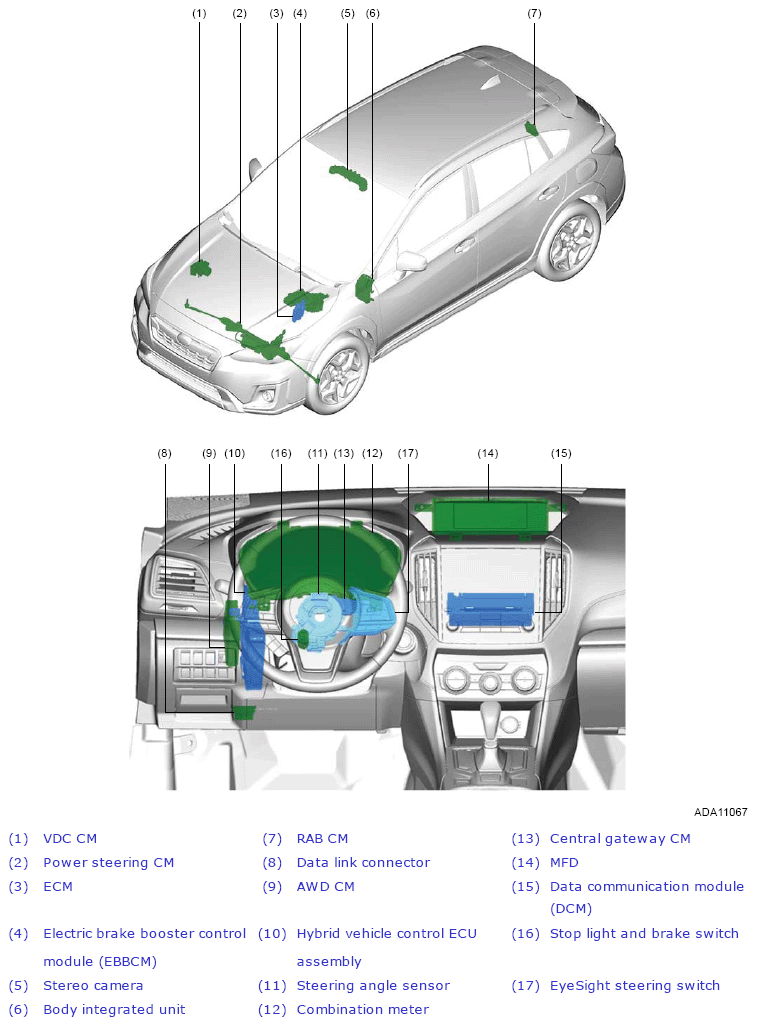

G13616657Courtesy of SUBARU OF AMERICA, INC.

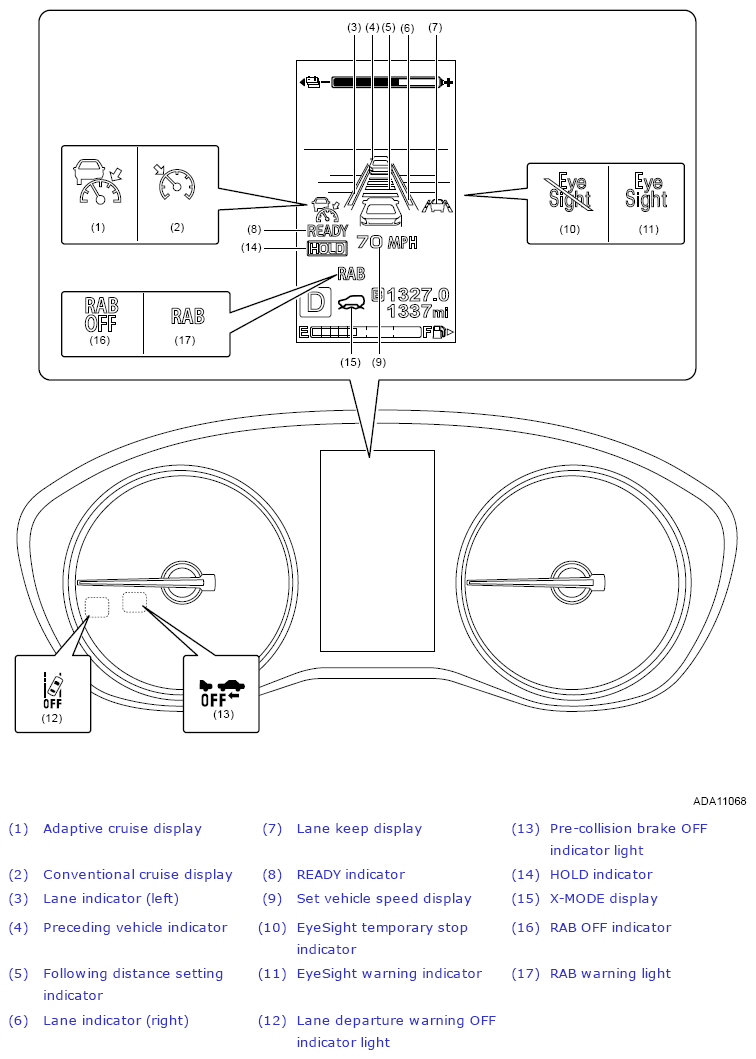

G13616658Courtesy of SUBARU OF AMERICA, INC.

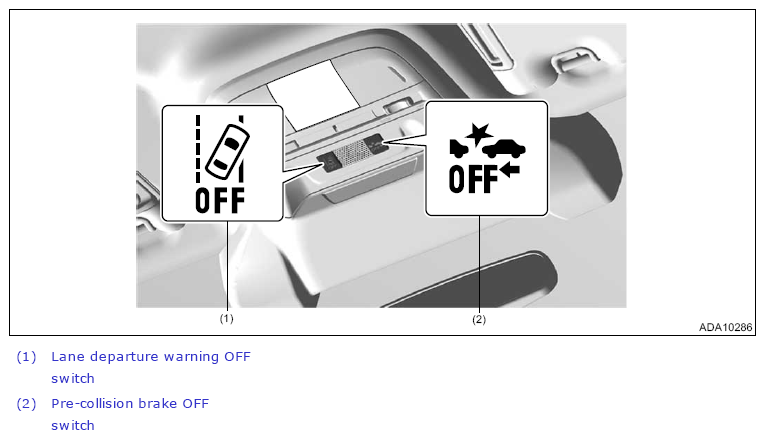

G13616659Courtesy of SUBARU OF AMERICA, INC.

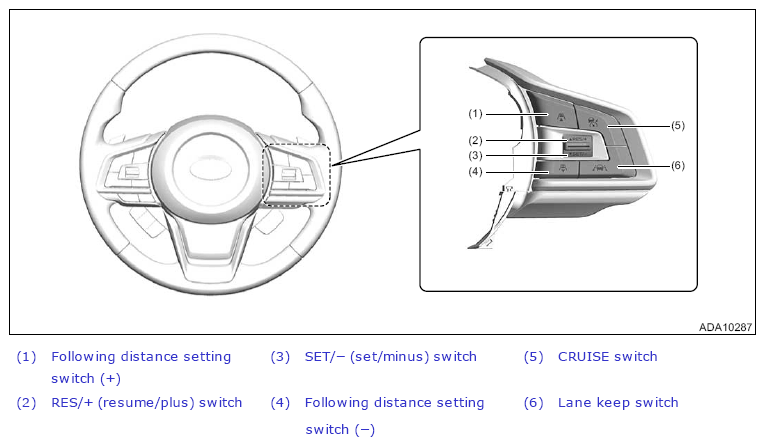

G13616660Courtesy of SUBARU OF AMERICA, INC.
