Explanation of circuits

WARNING: This page is about a different variant/trim than selected.

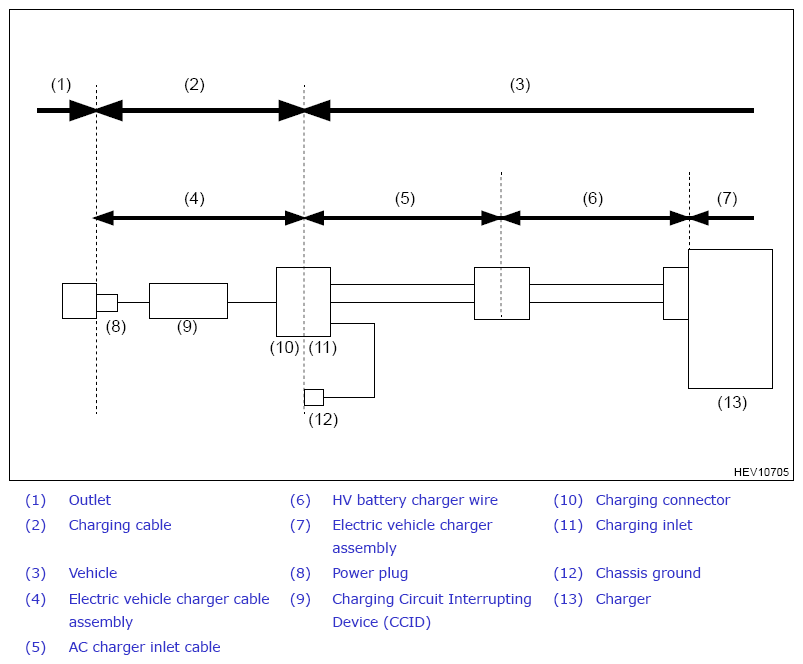

The Charging Circuit Interrupting Device (CCID) installed inside the Electric vehicle charger cable assembly detects insulation malfunction in the AC line between the Charging Circuit Interrupting Device (CCID) and Electric vehicle charger assembly.

G13615950Courtesy of SUBARU OF AMERICA, INC.
